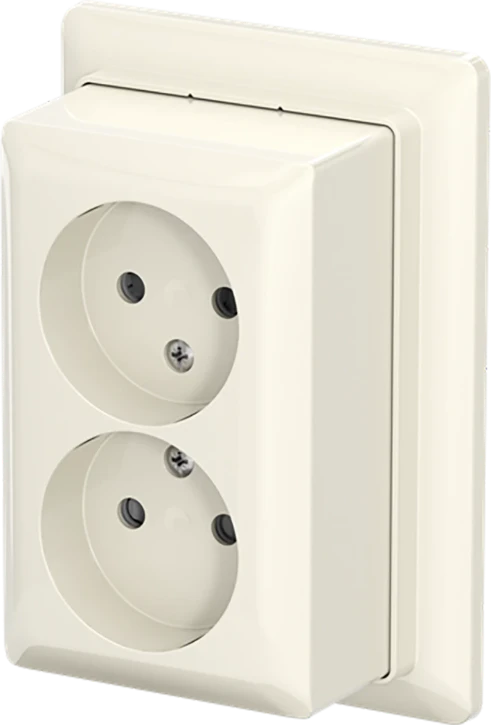

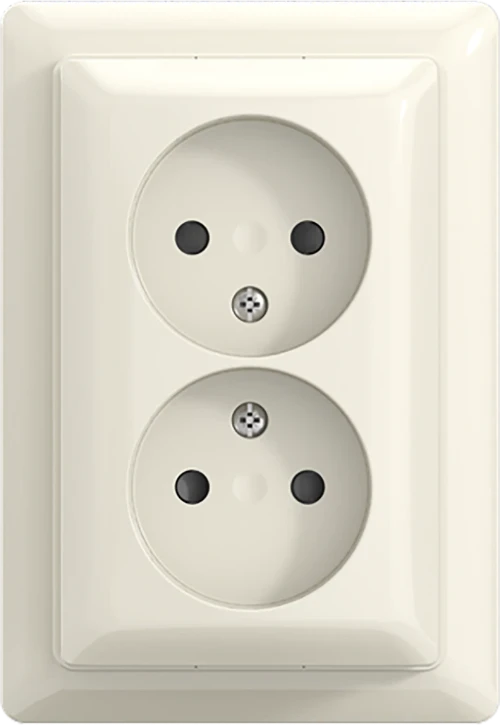

wcd kv dubbel + plaat opb b-AP+ wit
- 3145-3085
- |
- 2TKA00006254
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
wcd kv dubbel + plaat opb b-AP+ wit
wcd kv dubbel + plaat opb b-AP+ wit
YESSS-Bestellnummer
3145-3085
Produktcode
2TKA00006254
EAN-Code
06438199038766
Produktgruppe
Socket outlet
Marke
ABB Busch-Jaeger
Serie
AP plus
Typ
202 APBJ-522-503
Produktbeschreibung

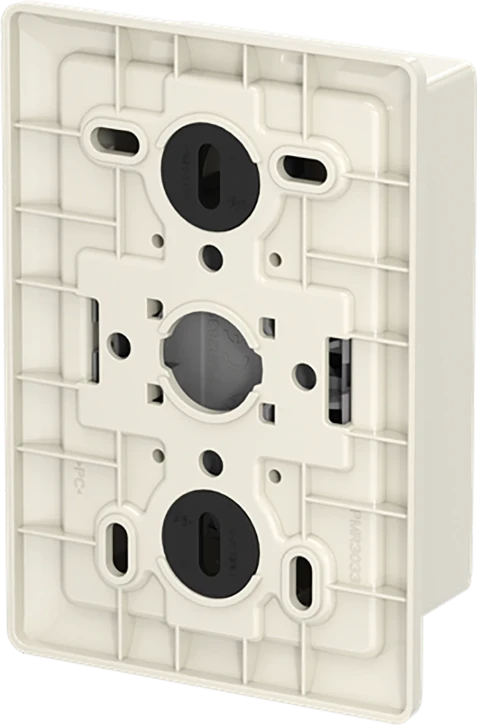

Met steekklemmen. 2-polig (2P). Safety+ (verhoogde aanraakbeveiliging volgens VDE 0620).Met montageplaat.
Produktspezifikationen
Model
Other
Number of active contacts (round)
0
Number of active contacts (flat)
0
With signal lamp
Nein
Number of modules (module system)
0
Number of phases
1
Imprint/indication
None
With hinged lid
Nein
With enhanced contact protection
Nein
Label space/information surface
Nein
Colour
Other
RAL-number (similar)
1013
Lockable
Nein
Eject-mechanism
Nein
With function lighting
Nein
With orientation lighting
Nein
With miniature fuse
Nein
Mounting method
Surface mounted
Type of fastening
Mounting with screw
Material
Other
Material quality
Thermoplastic
Halogen free
Nein
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
Nein
With on/off switch
Nein
With loop through function
Nein
Rotated central insert
Nein
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 50 Hz
Suitable for degree of protection (IP)
IP20
Impact strength
IK03
Device width
84.2 mm
Device height
48 mm
Device depth
121.7 mm
Metallic colour
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Number of ports USB-A
0
Number of ports USB-C
0
Protective contact
Other
Number of active contacts (square)
0
Number of socket outlets
2
Socket outlets phase-separated
Nein
Mounting direction
Horizontal and vertical
