Allgemeine Information

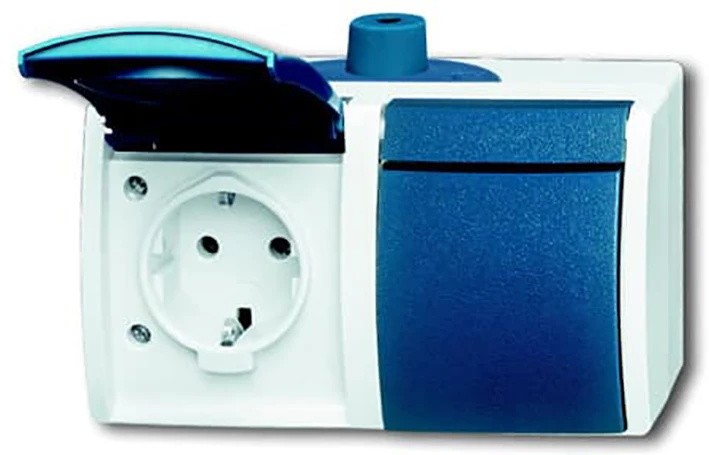

wcd ra dubbel hor kd opb IP44 ocean
wcd ra dubbel hor kd opb IP44 ocean
YESSS-Bestellnummer
0024-1756
Produktcode
2CKA002084A0705
EAN-Code
04011395026045
Produktgruppe
Socket outlet
Marke
ABB Busch-Jaeger
Serie
Ocean
Typ
20/2 EW-53-503
Produktbeschreibung
Met klapdeksel.Voor horizontale montage.Voorbedraad.Van tekst te voorzien met tekststrookhouder 1763-53.Met steekklemmen. 2-polig (2P + PE).Voor bijbehorende Busch-labelsoftware zie https://labeling.busch-jaeger.de/.
Produktspezifikationen
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
Nein
Number of modules (module system)
0
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
With hinged lid
Nein
With enhanced contact protection
Nein
Label space/information surface
Ja
Colour
Blue
RAL-number (similar)
7035
Transparent
Nein
Lockable
Nein
Eject-mechanism
Nein
Insulated mounting
Ja
With function lighting
Nein
With orientation lighting
Nein
Overvoltage protection
Nein
Fault current protection
Nein
With miniature fuse
Nein
Mounting method
Surface mounted
Type of fastening
Mounting with screw
Material
Other
Material quality
Thermoplastic
Halogen free
Ja
Surface protection
Untreated
Surface finishing
matt
Anti-bacterial treatment
Nein
With on/off switch
Nein
With loop through function
Ja
Rotated central insert
Nein
Nominal current
16 A
Nominal voltage
250 V
Rated fault current
0 mA
Suitable for degree of protection (IP)
IP44
Impact strength
IK04
Device width
145 mm
Device height
98 mm
Device depth
55 mm
Min. depth of built-in installation box
0 mm
Metallic colour
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
For heavy conditions according to VDE
Nein
Number of ports USB-A
0
Number of ports USB-C
0
With Wi-Fi signal repeater
Nein
With built-in bluetooth speaker
Nein
Protective contact
Earthing clips
Number of active contacts (square)
0
Number of socket outlets
1
Socket outlets phase-separated
Nein
