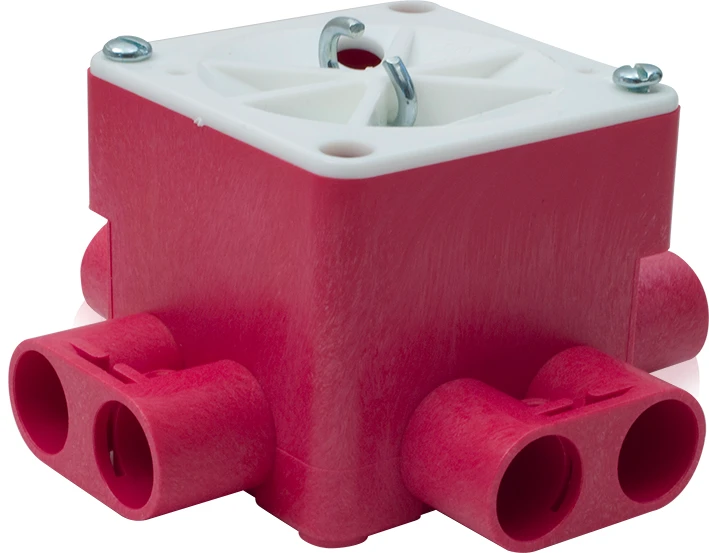

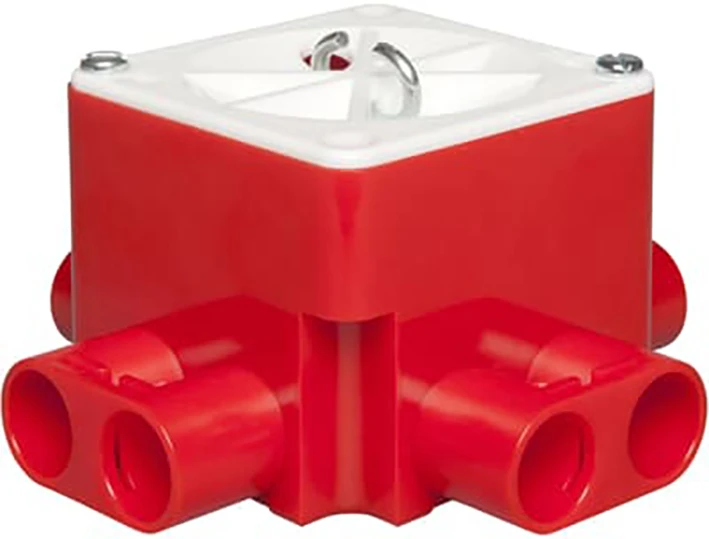

Brandwerende centraaldoos 55 mm, 8x16 mm inclusief deksel met haakje
- 0910-3306
- |
- 1SPA007112F0420
6 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Brandwerende centraaldoos 55 mm, 8x16 mm inclusief deksel met haakje
Brandwerende centraaldoos 55 mm, 8x16 mm inclusief deksel met haakje
YESSS-Bestellnummer
0910-3306
Produktcode
1SPA007112F0420
EAN-Code
08712507106803
Produktgruppe
Box/housing for built-in mounting in the wall/ceiling
Marke
ABB Installatiedozen en -kasten
Serie
Hafobox
Typ
BWCV165B
Produktbeschreibung
Brandwerende centraaldoos 55 mm, 8x16 mm inclusief deksel met haakje
Produktspezifikationen
Mounting method
Hollow ceiling
Shape
Square
Construction type
Central conduit box
Model
Single
Provided with revolving ring
Nein
Couplable
Nein
Equipped with
None
Length
70 mm
Width
70 mm
Depth
57 - 57 mm
Inner depth
55 mm
Mounting switching equipment
Screwing
With screws
Nein
Housing feed-through by break-out opening
Nein
Housing feed-through by seal membrane
Nein
Housing feed-through by nozzle
Ja
Housing feed-through by step membrane
Nein
For tube diameter
16 mm
Pipe locking
Nein
Pipe locking optional
Ja
Inlet from the rear
Nein
Number of inlets
8
Number of included spouts
0
Material
Plastic
Halogen free
Ja
Surface protection
Untreated
Colour
Red
Degree of protection (IP)
IP00
Cover model
Cover with hook and clamp
Transparent cover
Nein
Cover attachment
Screwed
Sealable
Nein
Circuit integrity
E60
With screening
Nein
Airtight
Nein
Luminaire hook mounting
Ja
Nozzle
Double nozzle
Special application
Fire protection
Compliant with BS 4662
Nein
