Inbouwdoos 40 mm, 1x16 mm t.b.v. dubbele wcd
- 0024-0349
- |
- 7120.129
40 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information

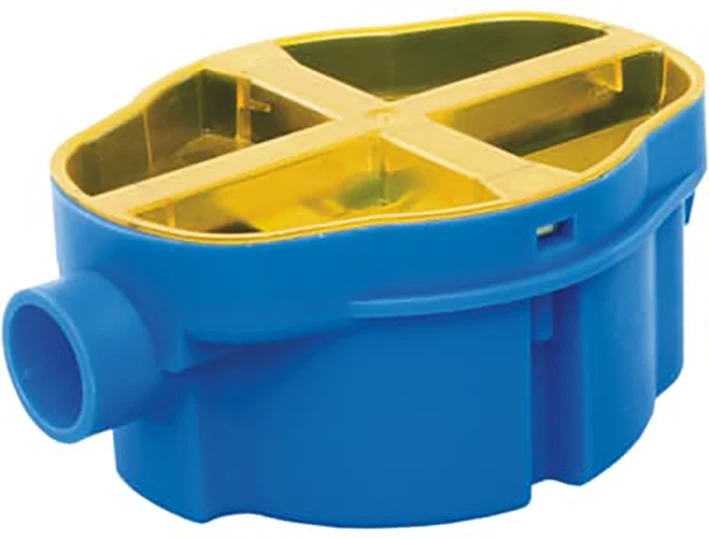

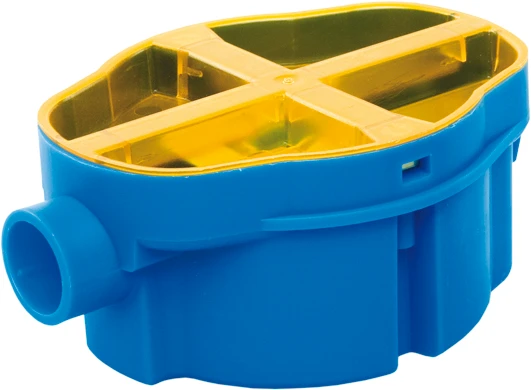

Inbouwdoos 40 mm, 1x16 mm t.b.v. dubbele wcd
Inbouwdoos 40 mm, 1x16 mm t.b.v. dubbele wcd
YESSS-Bestellnummer
0024-0349
Produktcode
7120.129
EAN-Code
08712507037411
Produktgruppe
Box/housing for built-in mounting in the wall/ceiling
Marke
ABB Installatiedozen en -kasten
Serie
Hafobox
Typ
H140
Produktbeschreibung
Inbouwdoos 40 mm, 1x16 mm t.b.v. dubbele wcd
Produktspezifikationen
Mounting method
Flush-mounted
Shape
oval
Construction type
Built-in installation box (device box)
Model
One and a half
Provided with revolving ring
Nein
Couplable
Nein
Equipped with
None
Length
90 mm
Width
70 mm
Depth
42 - 42 mm
Inner depth
40 mm
For number of device inserts
1
Mounting switching equipment
Screwing
With screws
Ja
Housing feed-through by break-out opening
Nein
Housing feed-through by seal membrane
Nein
Housing feed-through by nozzle
Ja
Housing feed-through by step membrane
Nein
For tube diameter
16 mm
Pipe locking
Nein
Pipe locking optional
Nein
Inlet from the rear
Nein
Number of inlets
1
Number of included spouts
0
Material
Plastic
Halogen free
Ja
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
Blind cover
Transparent cover
Ja
Cover attachment
Snapped on
Sealable
Nein
Circuit integrity
None
With screening
Nein
Airtight
Nein
Luminaire hook mounting
Nein
Nozzle
Tunnel branch pipe
Special application
None
Compliant with BS 4662
Nein
