Allgemeine Information

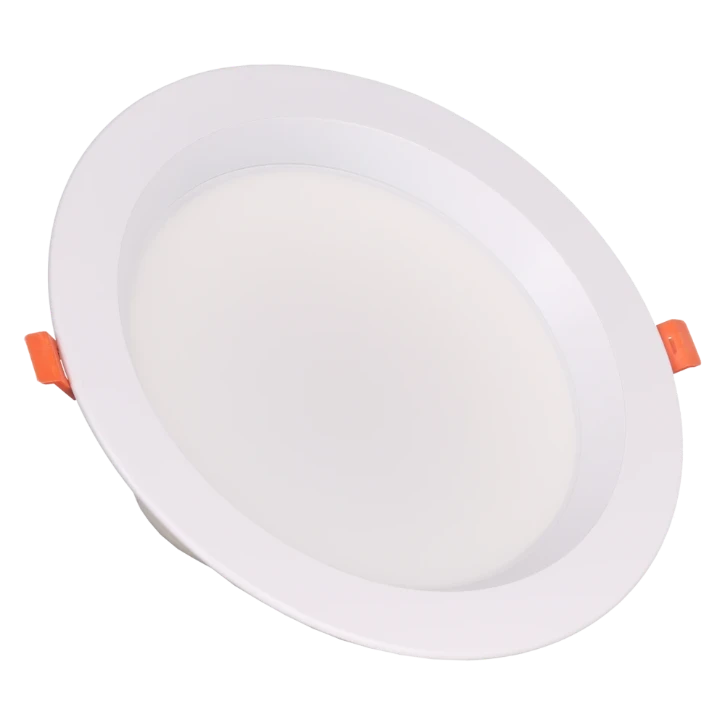

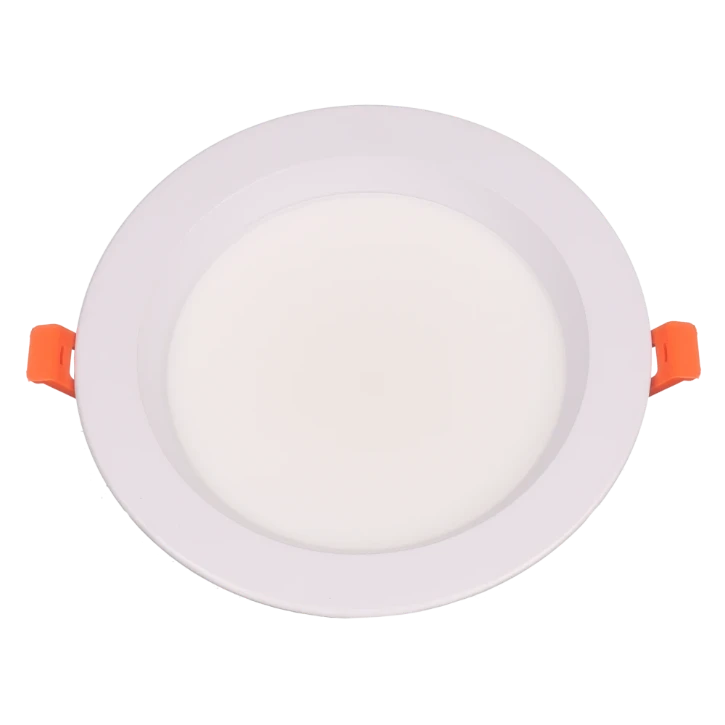

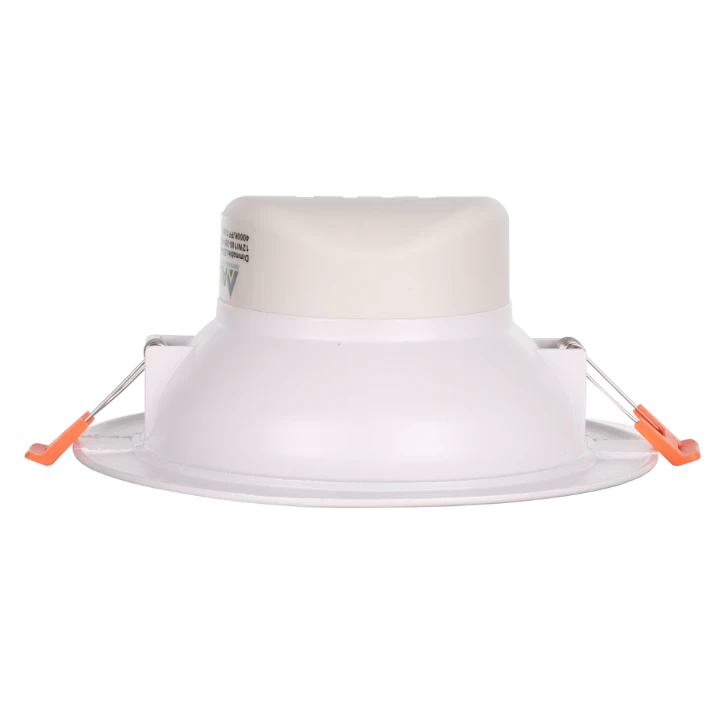

Alp Downlight 12W 830 100lm/W Ø180MM
Alp Downlight 12W 830 100lm/W Ø180MM
YESSS-Bestellnummer
3044-0019
Produktcode
2401230011
EAN-Code
08720094413099
Produktgruppe
Downlight/spot/floodlight
Marke
ALP
Serie
Alp Downlight 12W
Typ
830 100lm/W Ø180MM
Produktbeschreibung
Alp Downlight einfache Downlight Triac dimmbar geeignet für Loch Größe 150MM. Breite Abdeckring macht es weit anwendbar und kommt mit 2M Stromkabel. 3000K, 12W, 1200LM/W.
Produktspezifikationen
Suitable for surface mounting
Nein
Suitable for built-in mounting
Ja
Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Ja
Suitable for traverse mounting
Nein
Suitable for pedestal/floor mounting
Nein
Suitable for light-track mounting
Nein
Suitable for clamp-mounting
Nein
Suitable for low voltage cable system
Nein
Adjustability
Not adjustable
With movement sensor
Nein
With light sensor
Nein
Lamp type
LED not exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
White
Material cover
Plastic, opal
Surface brushed
Nein
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Reflector
High-gloss
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Degree of protection (NEMA)
1
Impact strength
IK02
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 50 °C
Suitable for lamp power
12 - 12 W
Max. system power
12 W
Colour of light
White
Colour temperature
2800 - 3200 K
Colour rendering index CRI
80-89
Power factor
0.9
Length
95 mm
Outer diameter
180 mm
Number of poles
2
Conductor cross section
0.75 mm²
Connectable conductor cross section
0.75 - 0.75 mm²
Connection type
Other
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Suitable for workplace according to EN 12464-1
Ja
Covering of the luminaire with thermally insulating material possible
Nein
Filament test according to IEC 60695-2-11
None
Colour consistency (McAdam ellipse)
SDCM4
Suitable for wall mounting
Nein
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Constant light output (CLO)
Nein
Colour of light adjustable
No
Luminous flux adjustable
No
Built-in diameter
150 - 150 mm
Max. number of luminaires per miniature circuit breaker B16 (MCB)
60
Max. number of luminaires per miniature circuit breaker C16 (MCB)
91
IFTTT support available
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
Nominal current
5 - 6 mA
Reflector colour
White
Dimmable
Ja
