Allgemeine Information

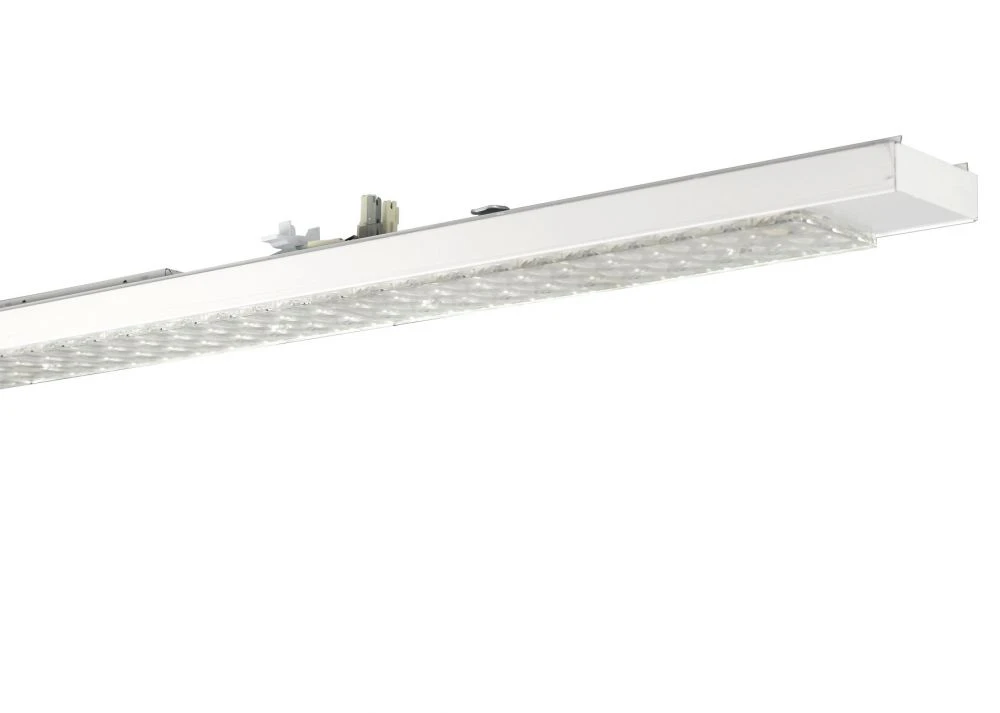

Alp Easy Fit Zumtobel ZX2 T5 32-60W 180lm/W 850 90°
Alp Easy Fit Zumtobel ZX2 T5 32-60W 180lm/W 850 90°
YESSS-Bestellnummer
3109-3784
Produktcode
1325050181
EAN-Code
08720207117371
Produktgruppe
Electrical unit for light-line system
Marke
ALP
Serie
Alp Easy Fit Zumtobel ZX2 T5 32-60W
Typ
850 90°
Produktbeschreibung
Produktspezifikationen
Lamp type
LED exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Housing colour
White
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming manufacturer's proprietary system
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Focal lens
Reflector
None
Light distribution
Symmetric
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Suitable for emergency lighting
Nein
Rated lifetime L70/B50 at 25 °C
130000 h
Degree of protection (IP)
IP20
Protection class according to IEC 61140
I
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
32 - 60 W
Max. system power
60 W
Colour of light
White
Colour temperature
4800 - 5200 K
Colour rendering index CRI
80-89
Power factor
0.98
Width
65 mm
Height/depth
45 mm
Length
1525 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
0.5 mm²
Connection type
Blade terminal
Nominal current
200 - 350 mA
Exchangeable control gear
Nein
Colour consistency (McAdam ellipse)
SDCM4
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
90 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
5 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
10 %
Constant light output (CLO)
Nein
Beam angle adjustable
No
Colour of light adjustable
No
Luminous flux adjustable
Positions
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Ja
Dimmable
Nein
Dimming DALI-2
Nein
