Allgemeine Information

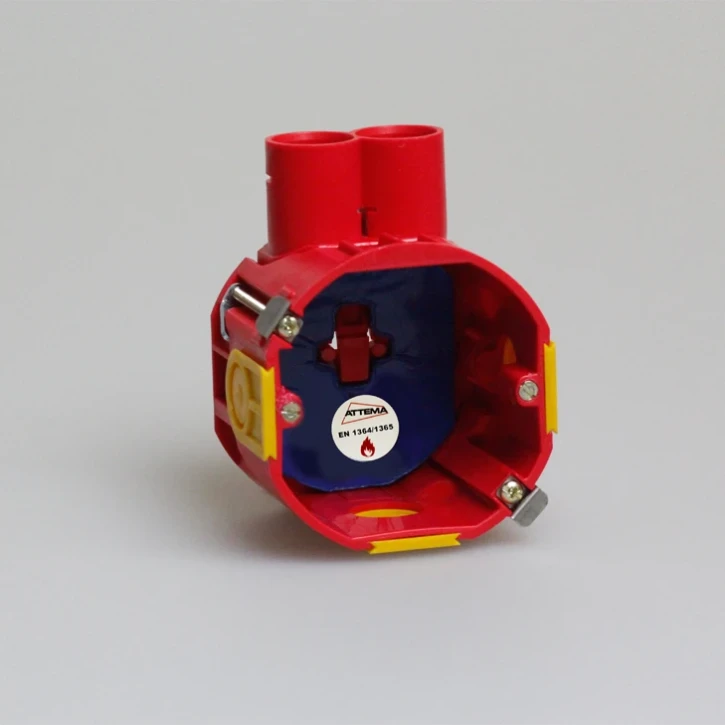

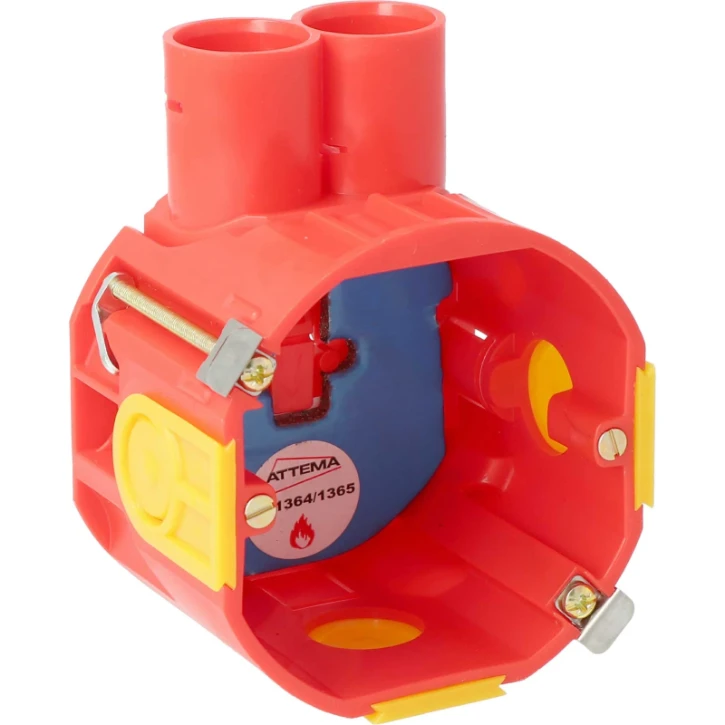

UHW50-BW brandwerende Hollewand inbouwdoos Ø 16/19 mm
UHW50-BW brandwerende Hollewand inbouwdoos Ø 16/19 mm
YESSS-Bestellnummer
2222-6803
Produktcode
AT1069
EAN-Code
08712259311401
Produktgruppe
Box/housing for built-in mounting in the wall/ceiling
Marke
ATTEMA
Serie
Hollewanddozen
Typ
UHW50-BW, 16/19 mm
Produktbeschreibung
UHW50-BW Hollewanddoos brandwerend, Ø 16/19 mm
Produktspezifikationen
Mounting method
Hollow wall
Shape
Round
Construction type
Device connection box (round/square)
Model
Single
Provided with revolving ring
Nein
Couplable
Ja
Diameter
76 mm
Inner depth
50 mm
For number of device inserts
1
Mounting switching equipment
Screwing
With screws
Ja
Housing feed-through by break-out opening
Ja
Housing feed-through by seal membrane
Nein
Housing feed-through by nozzle
Nein
Housing feed-through by step membrane
Nein
For tube diameter
16/19 mm
Pipe locking
Ja
Pipe locking optional
Nein
Inlet from the rear
Nein
Number of inlets
2
Number of included spouts
0
Material
Plastic
Halogen free
Ja
Surface protection
Untreated
Colour
Red
Degree of protection (IP)
IP20
Cover model
None
Transparent cover
Nein
Sealable
Nein
Circuit integrity
E60
With screening
Nein
Airtight
Nein
Max. conductor cross section
6 mm²
Number of poles of the clamp
0
Clamp position fixed
Nein
Luminaire hook mounting
Nein
Nozzle
Double nozzle
Special application
Fire protection
