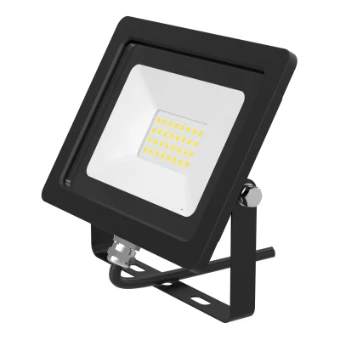

LED Flutlicht Slim 20W 1900lm 6500K
- 3037-1456
- |
- 141537
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
LED Flutlicht Slim 20W 1900lm 6500K
LED Flutlicht Slim 20W 1900lm 6500K
YESSS-Bestellnummer
3037-1456
Produktcode
141537
EAN-Code
08714681415375
Produktgruppe
Downlight/spot/floodlight
Marke
Bailey
Serie
LED Floodlight
Typ
Slim
Produktbeschreibung
Baileys Led Floodlight Slim-Serie beendet die unhandlichen Flutlichter. Da der LED-Treiber in das Modul integriert ist, ist das Gehäuse viel kleiner und eleganter geworden, ohne die Leistung zu beeinträchtigen. Da die Leuchte der Schutzklasse IK08 und IP65 entspricht, kann sie einiges einstecken. Betriebstemperatur: -35°C bis +45°C. Mit Entlüftungsventil, um die Wasserdichtigkeit bei Überdruck zu erhalten.
Produktspezifikationen
Suitable for surface mounting
Ja
Suitable for built-in mounting
Nein
Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Ja
Suitable for traverse mounting
Nein
Suitable for pedestal/floor mounting
Ja
Suitable for light-track mounting
Nein
Suitable for clamp-mounting
Nein
Suitable for low voltage cable system
Nein
Adjustability
Swivelling
With movement sensor
Nein
With light sensor
Nein
Lamp type
LED not exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Surface protection
Powder coating
Housing colour
Black
Material cover
Glass transparent
Surface brushed
Nein
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Not required
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Reflector
matt
Light distributor
None
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
30000 h
Degree of protection (NEMA)
Other
Impact strength
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-35 - 45 °C
Suitable for lamp power
20 - 20 W
Max. system power
20 W
Colour of light
White
Colour temperature
6500 - 6500 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
122 mm
Height/depth
26 mm
Length
160 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
1 mm²
Connection type
Free conductor end
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Suitable for workplace according to EN 12464-1
Nein
Covering of the luminaire with thermally insulating material possible
Nein
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Ja
Exchangeable control gear
Nein
Dimming DALI-2
Nein
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
96 %
Constant light output (CLO)
Nein
Flickering value Pst LM
0.3
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Stroboscope effect value SVM
0.8
IFTTT support available
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
Nominal current
120 - 120 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
UK Building Regs Part B fire rated - 30 minutes
Nein
UK Building Regs Part B fire rated - 60 minutes
Nein
UK Building Regs Part B fire rated - 90 minutes
Nein
Dimmable
Nein
With presence detector
Nein
Containing product according to 2019/2020/EU
Nein
Rated luminous flux according to IEC 62722-2- 1
1900 - 1900 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Emergency power supply system
None
Luminaire efficacy
95 - 95 lm/W
Luminous intensity
810 - 810 cd
