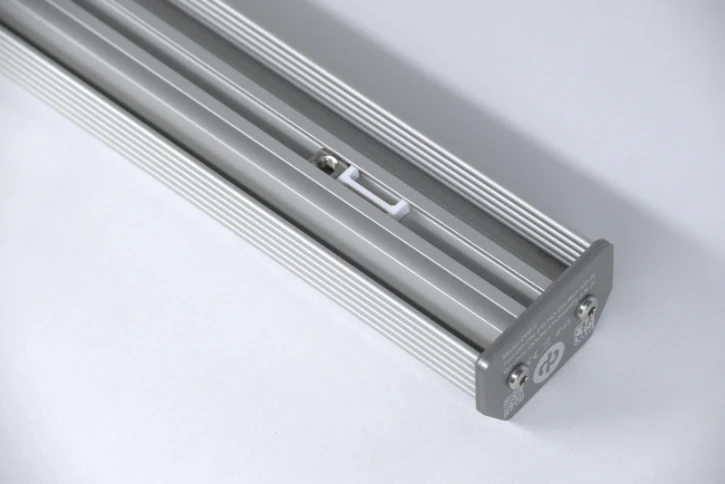

Linear Type ONE 43W 8305lm Standaard driver 120⁰
- 3133-6865
- |
- DP00004
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Linear Type ONE 43W 8305lm Standaard driver 120⁰
Linear Type ONE 43W 8305lm Standaard driver 120⁰
YESSS-Bestellnummer
3133-6865
Produktcode
DP00004
Produktgruppe
Ceiling-/wall luminaire
Marke
Doublepower
Serie
ONE
Typ
DP-ON-410-HE-SS-840-BB-N
Produktbeschreibung
| DoublepowerLinear Type ONE 43W 8.305 lumen Dali Driver optie, optics 120⁰, andere optics60⁰, 90⁰ en batwing mogelijk, 190lm/w~208lm/w, IP66, 4000K, 2700K~6500Kmogelijk, L80B10 > 100 000 hours bij Ta +50 °C, omgevingstemperatuur-20⁰C~+50⁰C, CRI >80 ~>90, Behuizing geanodiseerd alluminium, LensPMMA, Afmetingen 1450,5x53x130mm, met connector |
Produktspezifikationen
Suitable for suspended mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for built-in mounting
Nein
Suitable for surface mounting
Ja
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Nein
Lamp type
LED exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Aluminium
Housing colour
Aluminium
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC/DC
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Diffuser lens/optic/panel
Light distribution
Asymmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Rated lifetime L70/B50 at 25 °C
100000 h
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Ja
Rated ambient temperature according to IEC 62722-2-1
-20 - 50 °C
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Suitable for lamp power
30 - 30 W
Max. system power
43 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
20 mm
Height/depth
130 mm
Length
1450 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Bus
Surface protection housing
Anodised
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
100 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
100 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
100 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
1 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
10
Max. number of luminaires per miniature circuit breaker C16 (MCB)
14
Flickering value Pst LM
1
Stroboscope effect value SVM
0
Constant light output (CLO)
Ja
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
22
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Compatible with Casambi
Nein
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Ja
Movement sensor/presence detector technology
Other
Dimmable
Nein
Luminaire efficacy
190 - 208 lm/W
Rated luminous flux according to IEC 62722-2- 1
8305 - 8305 lm
With presence detector
Nein
Containing product according to 2019/2020/EU
Ja
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
8
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1.5 - 2.5 mm²
Ball-proof according to DIN 18032-3
Nein
Suitable for clamp-mounting
Nein
With mounting material
Ja
With switch
Nein
