Zur Auswahl hinzufügen
YSLY-JZ 3G1 mm² Dca-s2,d0,a3
- 3043-7852
- |
- YSLYD2092030
100 meter
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information

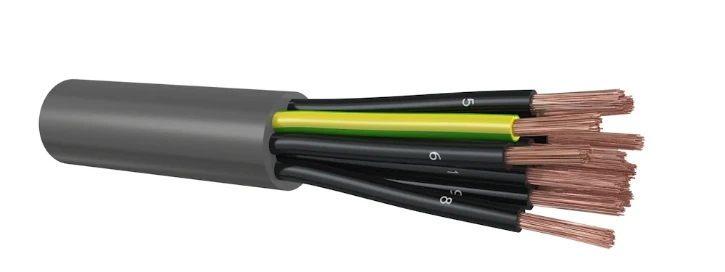

YSLY-JZ 3G1 mm² Dca-s2,d0,a3
YSLY-JZ 3G1 mm² Dca-s2,d0,a3
YESSS-Bestellnummer
3043-7852
Produktcode
YSLYD2092030
EAN-Code
08717714111626
Produktgruppe
Power cable < 1 kV, for moving application
Marke
Dynamic
Serie
YSLY Dca
Typ
PVC stuurstroomleiding
Produktbeschreibung
PVC stuurstroomleiding YSLY-JZ 3G1 mm² Dca-s2,d0,a3
Produktspezifikationen
Nominal cross section conductor
1 mm²
Conductor category
Class 5 = flexible
Number of cores
3
Stranding element
No
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colours and numbers
Screen over stranding element
None
Screen over stranding
None
Suspension element
None
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Grey
Torsion resistant
Nein
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d0
Reaction-to-fire according to EN 13501-6: Acidity
a3
Low temperature resistant according to EN 60811-504+505+506
Nein
Oil resistant according to EN IEC 60811-404
Nein
Cable width approximate
6 mm
Cable height approximate
6 mm
Outer diameter approximate
6 mm
Min. permitted bending radius, moving application/free movement
45 mm
Min. permitted bending radius, stationary application/permanent installation
45 mm
Permitted cable outer temperature during assembling/handling
0 - 70 °C
Permitted cable outer temperature after assembling without vibration
-25 - 70 °C
Nominal voltage U0
300 V
Nominal voltage U
500 V
Conductor material
Copper
Conductor surface
Bare
Conductor resistance at 20 °C
19.5 Ohm/km
Core identification according to HD 308 S2
Nein
With protective conductor
Ja
Cable geometry
Round
Shape of conductor
Round
Weight
65 kg/km
Drain wire
Nein
Screen
Nein
Protective barrier
None
Armouring/reinforcement
None
Number of pilot/reduced conductors
0
Max. permitted conductor temperature
70 °C
Number of stranding elements
1
Flame retardant according to IEC 60332-1-2
Ja
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
Nein
Flame retardant according to IEC 60332-3-22 (Cat A)
Nein
Flame retardant according to IEC 60332-3-23 (Cat B)
Nein
Flame retardant according to IEC 60332-3-24 (Cat C)
Ja
Flame retardant according to IEC 60332-3-25 (Cat D)
Nein
Low smoke according to EN IEC 61034-2
Nein
Halogen free according to EN IEC 60754-1
Nein
Halogen free according to EN IEC 60754-2
Nein
Halogen free according to EN IEC 60754-3
Nein
