Allgemeine Information

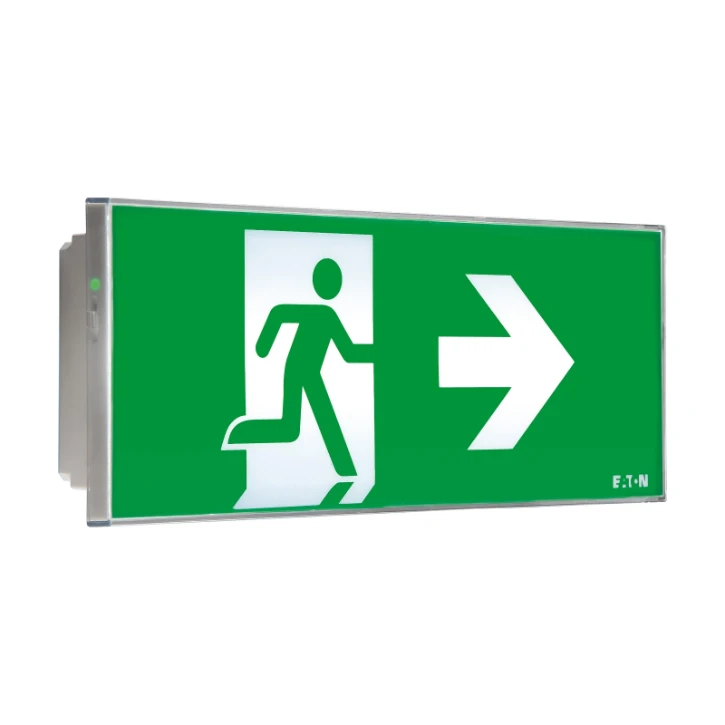

NEXITECH LED 150 1 H AT
NEXITECH LED 150 1 H AT
YESSS-Bestellnummer
3011-8572
Produktcode
NEXI150-AT
EAN-Code
03660191600235
Produktgruppe
Emergency luminaire
Marke
Eaton Blessing
Serie
NexiTech
Typ
NexiTech 150 1h AT
Produktbeschreibung
Eaton NexiTech LED, Sicherheitsbeleuchtung / Rettungszeichen, 20 m Erkennungsweite, Fluchtwegausleuchtung, Auto-Test, LED, Dauer- / Bereitschaftsbetrieb, IP40, 150 lm, 1 Stunde Leuchtdauer
Produktspezifikationen
Mounting method
Surface mounting/recessed mounting
Function
Escape route lighting/signage
Suitable for labelling type
Insert sheet/plate
Type of indicator
Single/double-sided
With pictogram
Nein
With remote switch connection
Nein
Battery technology
NiCd
Lamp type
LED not exchangeable
With light source
Nein
Suitable for number of light sources
1
Lamp holder
None
Number of lighting heads
16
Housing material
Plastic
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
Light distributor
Reflector
Degree of protection (IP)
IP40
Degree of protection (NEMA)
Other
Impact strength
IK03
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
5 - 30 °C
Max. system power
2.4 W
Luminous flux in standby mode
60 lm
Colour temperature
5053 - 5053 K
Power factor
0.52
Recognition distance
20 m
Nominal operation time
1 - 1 h
Width
110 mm
Built-in width
95 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Conductor cross section
2.5 mm²
Connection type
Plug-in connection
With remote control
Nein
Exchangeable control gear
Nein
Constant light output (CLO)
Nein
Nominal current
2.7 - 10.9 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
A
RAL-number housing
9003
Suitable for standby switching
Nein
Suitable for continuous circuit
Nein
Emergency function monitoring system
Automatic self test
Emergency power supply system
Peripheral (individual battery)
Luminous flux in emergency mode
150 lm
Power consumption in emergency mode
2.4 W
Connectable conductor cross section
0.5 - 2.5 mm²
