EIN-AUS-Schalter, P1, 25 A, Einbau, 3-polig, 1 S, 1 Ö,
- 0039-6970
- |
- 002600
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
EIN-AUS-Schalter, P1, 25 A, Einbau, 3-polig, 1 S, 1 Ö,
EIN-AUS-Schalter, P1, 25 A, Einbau, 3-polig, 1 S, 1 Ö, NOT-AUS-Funktio
YESSS-Bestellnummer
0039-6970
Produktcode
002600
EAN-Code
04015080026006
Produktgruppe
Switch disconnector (AC)
Marke
Eaton
Serie
P lastschakelaar
Typ
P1-25/E-RT/HI11
Produktbeschreibung

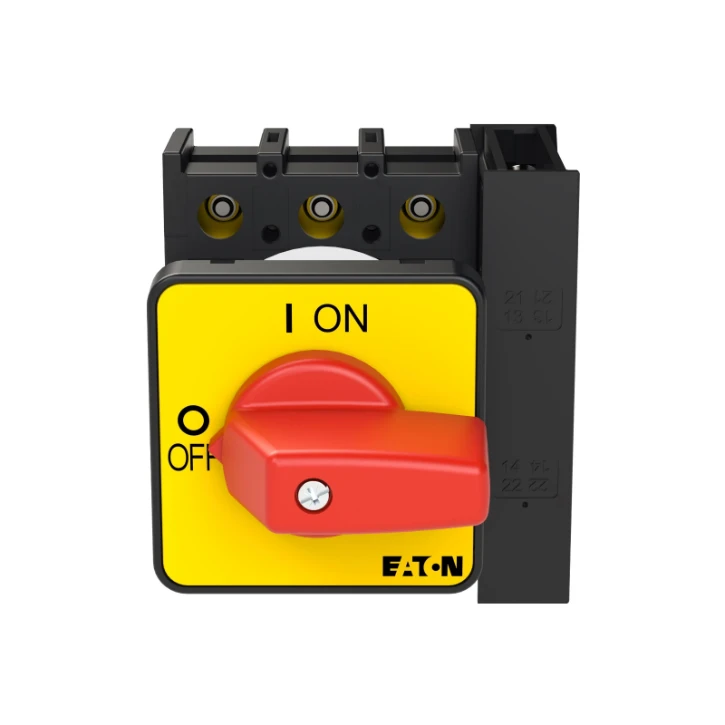

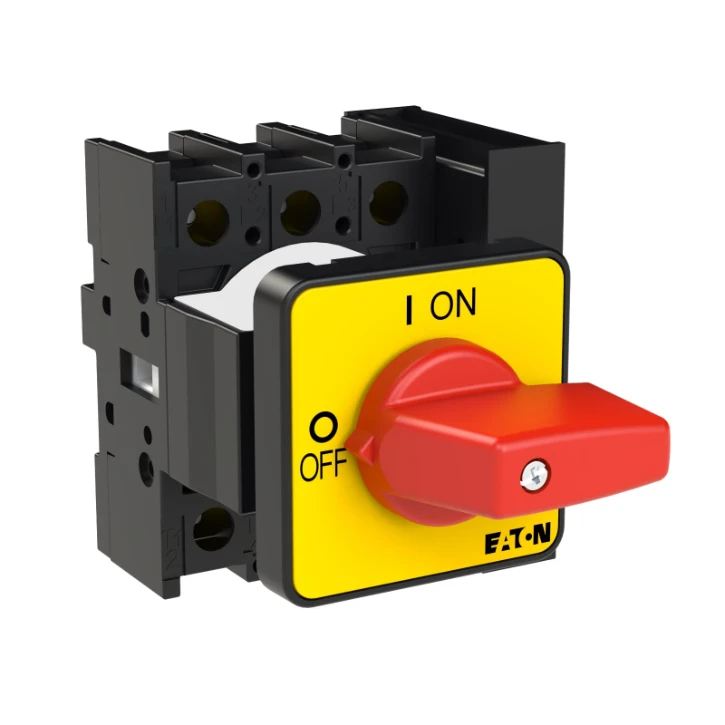

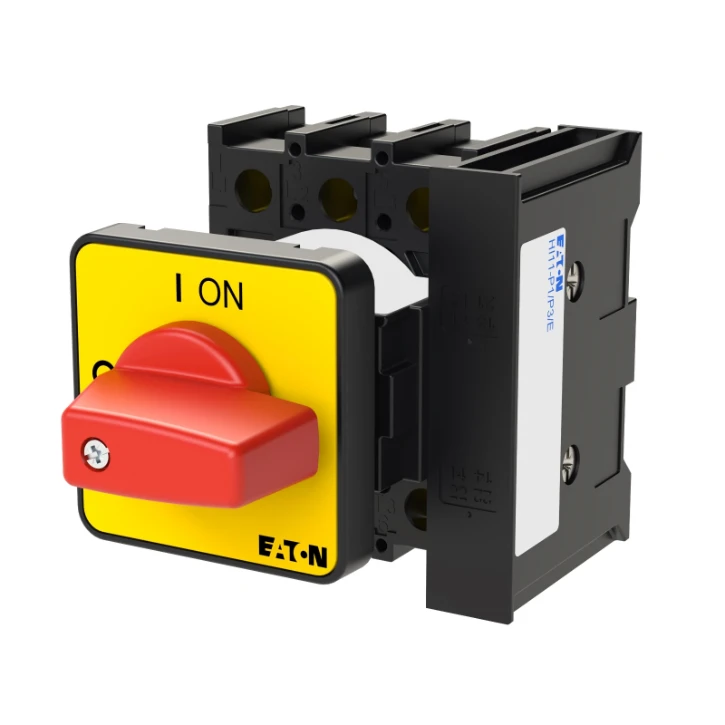

EIN-AUS-Schalter, P1, Bemessungsdauerstrom (Iu): 25 A, Funktionen: NOT-AUS-Funktion, Ausstattung: Roter Knebelgriff und gelbe Frontplatte, Montageart: Einbau, Polzahl: 3-polig, Schutzart: NEMA 12
Produktspezifikationen
Version as main switch
Nein
Version as maintenance-/service switch
Nein
Version as safety switch
Nein
Version as emergency stop installation
Ja
Version as reversing switch
Nein
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
690 - 690 V
Rated permanent current Iu
25 A
Rated permanent current at AC-23, 400 V
25 A
Rated permanent current at AC-21, 400 V
25 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated short-time withstand current lcw
0.64 kA
Rated operation power at AC-23, 400 V
13 kW
Switching power at 400 V
13 kW
Conditioned rated short-circuit current Iq
50 kA
Number of poles
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Nein
Motor drive integrated
Nein
Voltage release optional
Nein
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Ja
Suitable for front mounting centre
Nein
Suitable for distribution board installation
Nein
Suitable for intermediate mounting
Nein
Colour control element
Red
Type of control element
Short rotary handle
Interlockable
Nein
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
With pre-assembled cabling
Nein
Width
64 mm
Height
70 mm
Depth
94 mm
Suitable for floor mounting
Nein
Housing colour
Grey
Housing material
Plastic
