S55 FLEX, 1f / 3f, Leitungsschutzschalter 9 gr 3 ALS
- 2029-6453
- |
- 1968213
5 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information

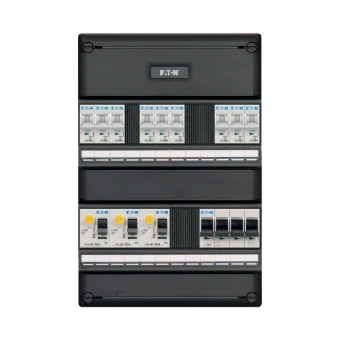

S55 FLEX, 1f / 3f, Leitungsschutzschalter 9 gr 3 ALS
S55 FLEX, 1f / 3f, Leitungsschutzschalter 9 gr 3 ALS HS 64
YESSS-Bestellnummer
2029-6453
Produktcode
1968213
EAN-Code
08711426847989
Produktgruppe
Small distribution board equipped
Marke
Eaton
Serie
Systeem 55
Typ
I-93V1400-HS-64
Produktbeschreibung
Systeem 55 compacte verdeler FLEX, 1-fase of 3-fase, installatieautomaat 9 groepen 3x aardlekschakelaar 1x hoofdschakelaar; H = 330 mm; B = 220 mm
Produktspezifikationen
Mounting method
Surface mounted
Number of phases
1
Protection
Miniature-/earth leakage circuit breaker
Total number of groups
9
Number of direct groups
0
Number of light groups
9
Number of groups behind earth leakage switch
9
Number of earth leakage circuit breakers
0
Number of earth leakage switches 30 mA
3
Number of earth leakage switches 300 mA
0
Number of poles main switch
4
Main switch rated current
40 A
Cooker group
None
Cooker group suitable as power current group
Nein
With socket outlet
Nein
With bell transformer
Nein
Overvoltage protection
Nein
Housing material
Plastic
Degree of protection (IP)
IP3X
Height
140 mm
Width
234 mm
Width in number of modular spacings
12
Depth
401 mm
Extension possible
Ja
With transparent cover
Nein
Lockable
Nein
Protection main switch
Nein
Protection incoming RCD
Nein
Protection high integrity
Nein
Protection split load
Nein
Protection dual RCD
Nein
Suitable for data
Nein
With meter
Nein
Number of rows
2
Number of single-phase miniature circuit breakers (MCB)
9
Number of three-phase miniature circuit breakers (MCB)
0
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10 kA
Built-in height
45 mm
Built-in width
210 mm
Type of covering
Cover
Type of closure
Other
Colour
Black
RAL-number
9005
Outgoing connections with connectors for plug-in building installation
Nein
Number of earth leakage circuit breakers/AFDD
0
With N-disconnect slide
Nein
Connection type
Screwed terminal
