Allgemeine Information

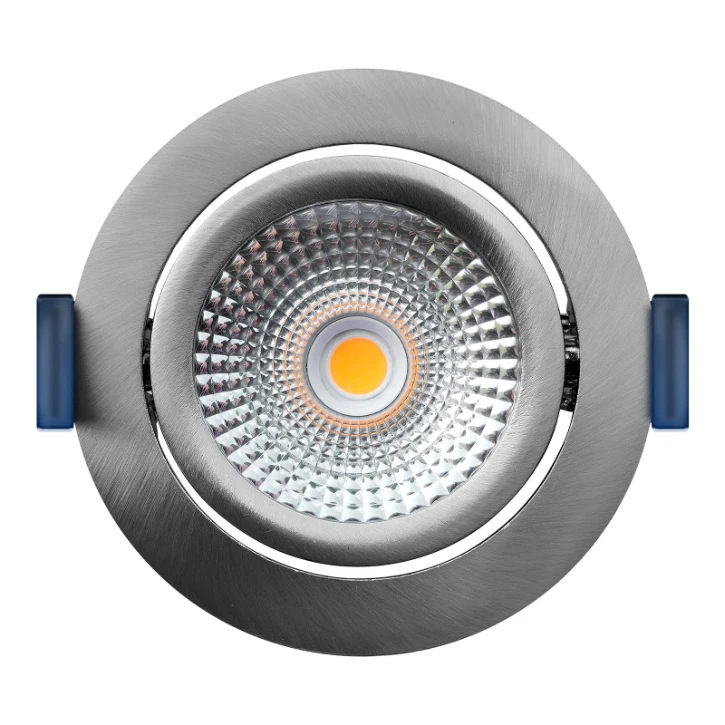

Led inbouwspot dimbaar kleine inbouwdiepte dim to warm rond nikkel
Led inbouwspot dimbaar kleine inbouwdiepte dim to warm rond nikkel
YESSS-Bestellnummer
3057-8569
Produktcode
ED-10024
EAN-Code
08719322372093
Produktgruppe
Downlight/spot/floodlight
Marke
EcoDim
Serie
Led spots
Typ
Dim to warm, Rond, Nikkel
Produktbeschreibung

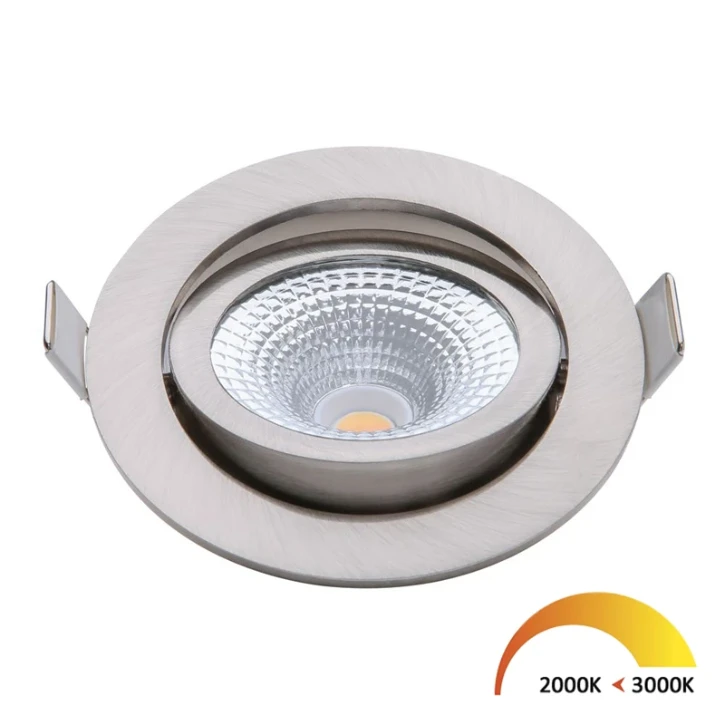

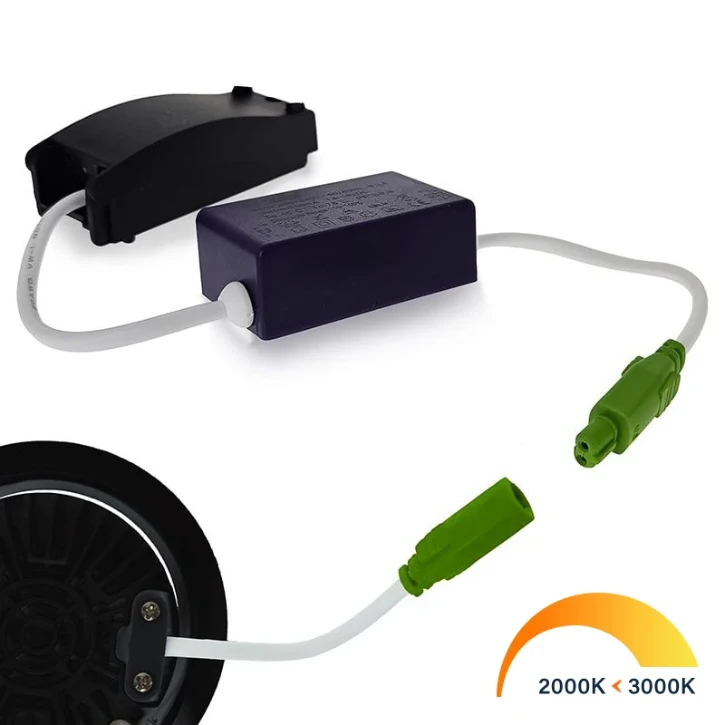

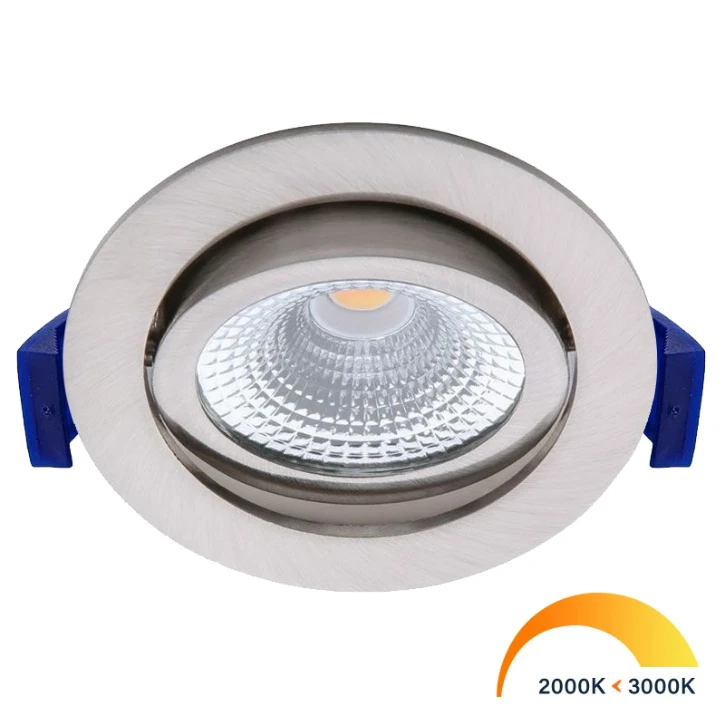

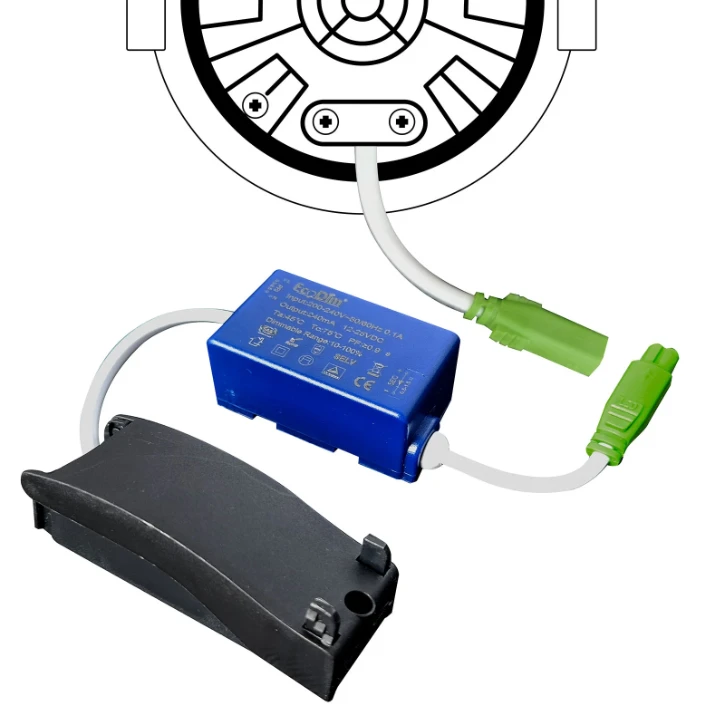

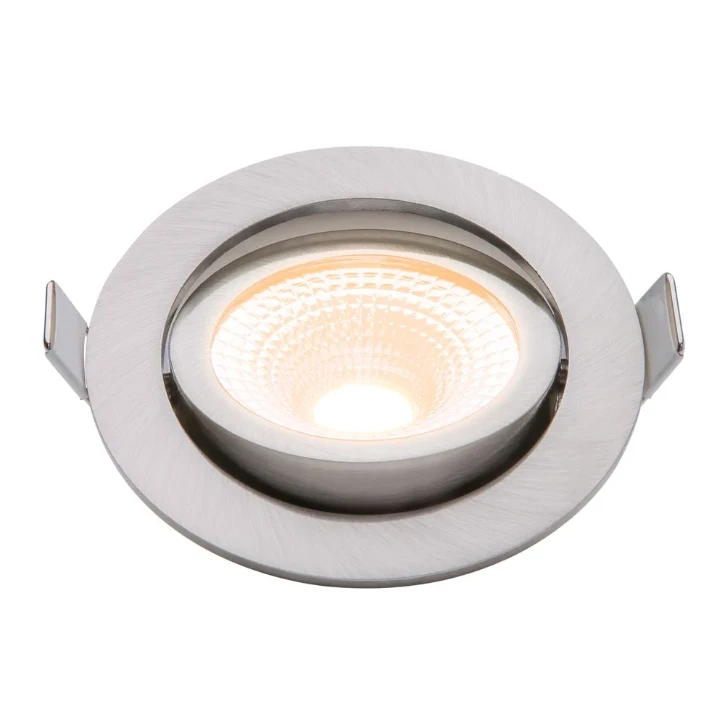

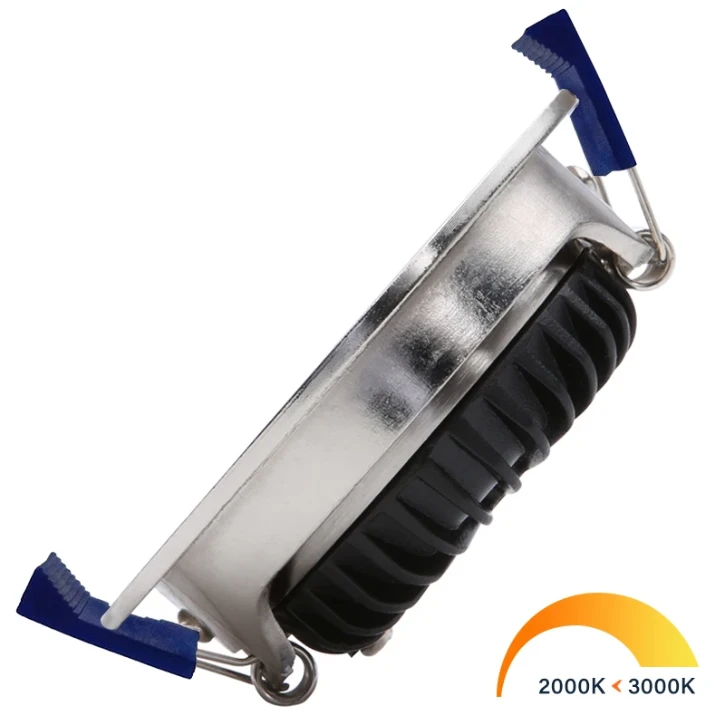

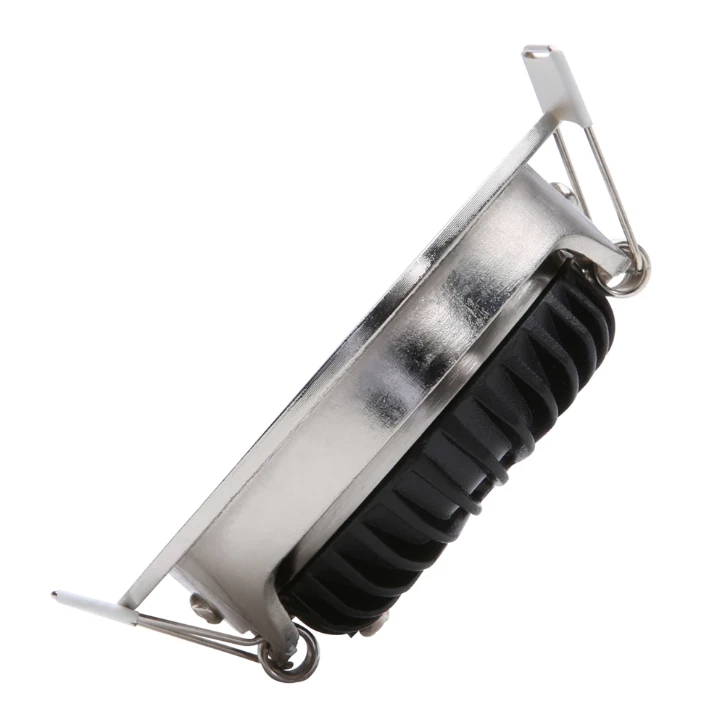

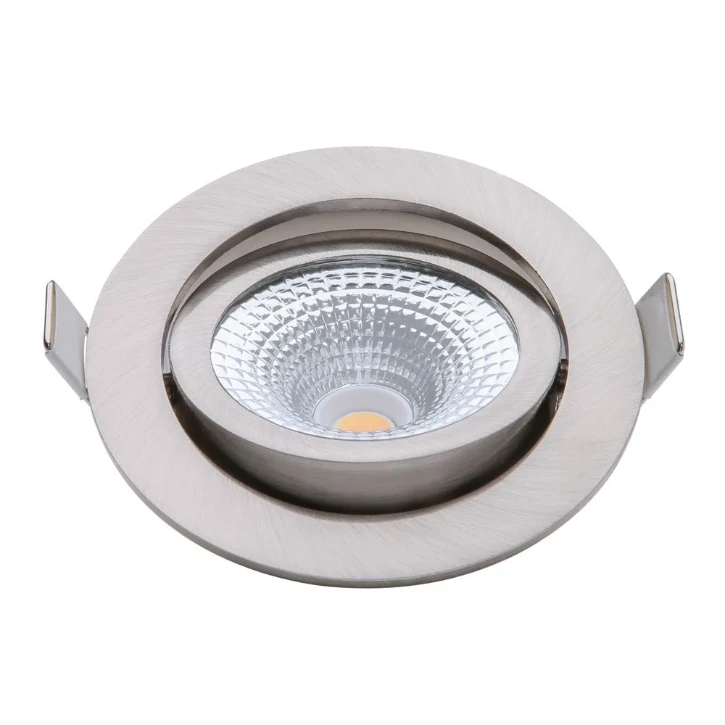

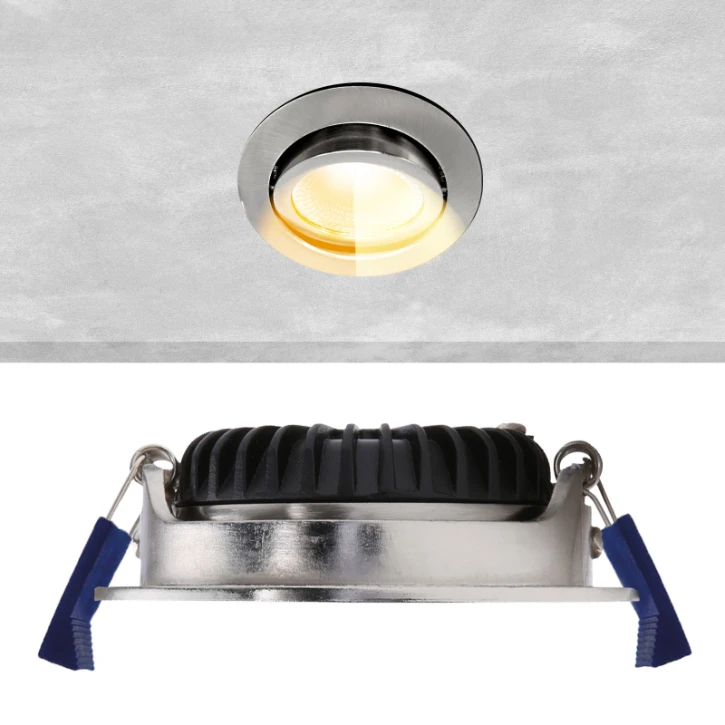

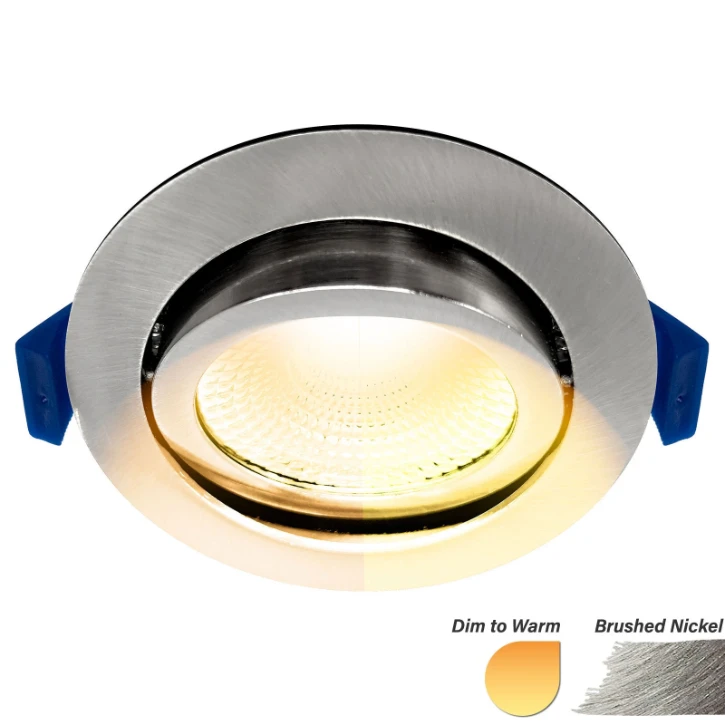

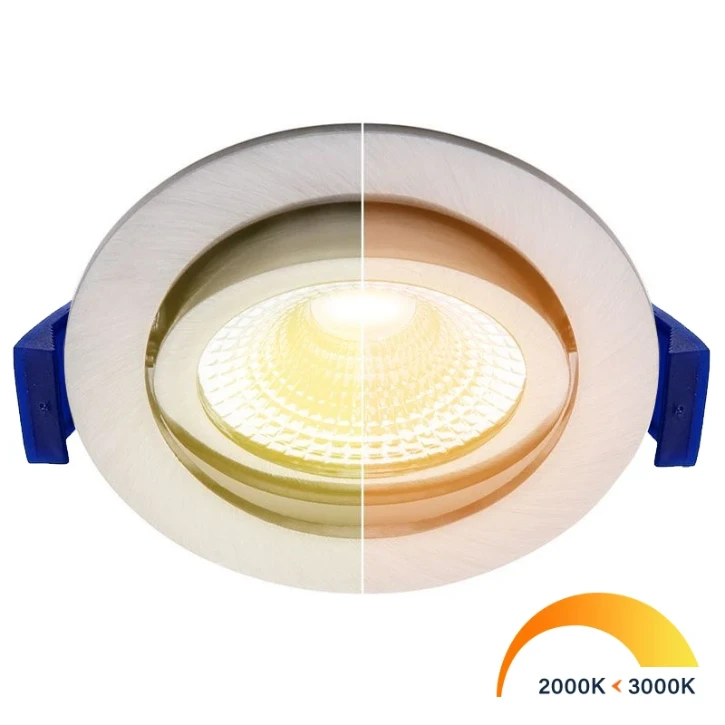

Deze nikkelkleurige ronde led inbouwspot is spatwaterdicht (IP54, geschikt voor badkamer) en heeft een kleine inbouwdiepte van slechts 23mm. Uniek is de uitstekende dimbaarheid en het eenvoudige 2-draads doorlussen dankzij de compacte lasdoos met dubbele klemconnector (2x fase- en 2x nuldraad). Bijzonder is de lichtkleur ‘dim to warm’. Hiermee wordt de lichtkleur ‘warmer’ naarmate u dimt, namelijk van 3000K-2000K. Uitstekend dimbaar met alle EcoDim led dimmers.
Produktspezifikationen
Suitable for surface mounting
Nein
Suitable for built-in mounting
Ja
Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Ja
Suitable for traverse mounting
Nein
Suitable for pedestal/floor mounting
Ja
Suitable for light-track mounting
Nein
Suitable for clamp-mounting
Nein
Suitable for low voltage cable system
Nein
Adjustability
Rotatable
With movement sensor
Nein
With light sensor
Nein
Lamp type
LED not exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
None
Housing material
Aluminium
Surface protection
Other
Housing colour
Nickel
Material cover
Glass transparent
Surface brushed
Ja
Voltage type
DC
Nominal voltage
220 - 240 V
Type of control gear
Electronic transformer
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Ja
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Reflector
High-gloss
Light distributor
Reflector
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Degree of protection (NEMA)
Other
Impact strength
Other
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Suitable for lamp power
5 - 5 W
Max. system power
5 W
Colour of light
White
Colour temperature
2000 - 3000 K
Colour rendering index CRI
90-100
Power factor
0.9
Height/depth
24 mm
Outer diameter
85 mm
Type of wiring
Ending
Number of poles
4
Conductor cross section
0.5 mm²
Connectable conductor cross section
5 - 5 mm²
Connection type
Push-in clamp
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Ja
Suitable for workplace according to EN 12464-1
Ja
Covering of the luminaire with thermally insulating material possible
Ja
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Nein
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
92 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
90 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
0 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
0.003 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
0.003 %
Constant light output (CLO)
Ja
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Stroboscope effect value SVM
1
Built-in diameter
75 - 75 mm
IFTTT support available
Nein
Unified Glare Ratio (UGR)
27
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
Nominal current
100 - 100 mA
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Operation by Bluetooth
Nein
Reflector colour
Silver
Compatible with Casambi
Nein
Movement sensor/presence detector technology
Other
UK Building Regs Part B fire rated - 30 minutes
Nein
UK Building Regs Part B fire rated - 60 minutes
Nein
UK Building Regs Part B fire rated - 90 minutes
Nein
Dimmable
Ja
With presence detector
Nein
Containing product according to 2019/2020/EU
Nein
Total harmonic distortion (THD)
20 %
Rated luminous flux according to IEC 62722-2- 1
450 - 450 lm
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP54
Emergency power supply system
None
Power consumption in emergency mode
0 W
Emergency function monitoring system
None
Luminous flux in emergency mode
0 lm
Luminaire efficacy
90 - 90 lm/W
Luminous intensity
536 - 536 cd
Built-in length
75 - 75 mm
Built-in width
75 - 75 mm
Built-in height
23 - 23 mm
