TRMS industriële multimeter met VDF en Meterlink

  • 3109-0002
  • |
  • DM93-2
0 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

TRMS industriële multimeter met VDF en Meterlink TRMS industriële multimeter met VDF en Meterlink
YESSS-Bestellnummer
3109-0002
Produktcode
DM93-2
EAN-Code
00793950372937
Produktgruppe
Multimeter
Marke
FLIR
Serie
Multimeter
Typ
DM93-2

Produktbeschreibung

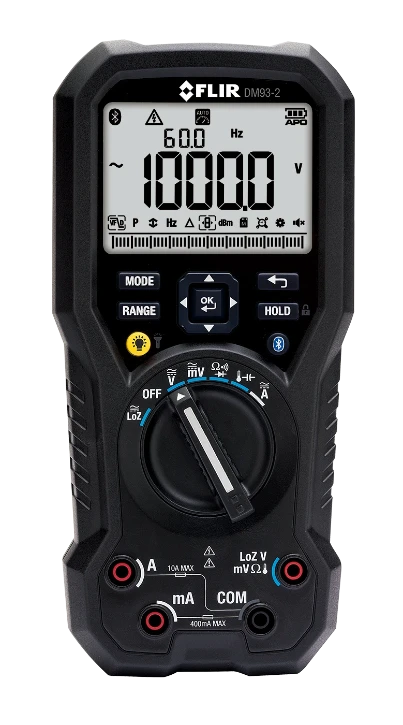

De FLIR DM93-2 is een geavanceerde digitale TRMS multimeter die speciaal ontworpen is voor VFD metingen. Deze robuuste multimeter is zeer geschikt voor intensief industrieel gebruik en te gebruiken in combinatie met Meterlink.

Kenmerken:

  • Bereik AC/DC spanning: 1000V
  • Bereik AC/DC stroom: 10.000A
  • VFD spanning: 1000V
  • Weerstand: 40MΩ
  • Continuity Threshold: 30Ω
  • Frequentie: 100.00kHz
  • Capaciteit: 40.00 mF
  • Temperatuur bereik: -200 tot 1200 °C (-328 tot 2192 °F)
  • Diode test: 2V
  • Bereik Bluetooth: 10 m
  • Compatibel met MeterLink
  • Voorzien van VFD mode, LoZ mode, analoge bargraph, automatische AC/DC instelling, min/max/average recording, auto power off, hold, relative, peak hold, store, recall, display counts: 40.000 en data recording: 20.000 Pts (max. 125 dagen)
  • Veiligheidscategorie: CAT IV 600V, CAT III 1000V

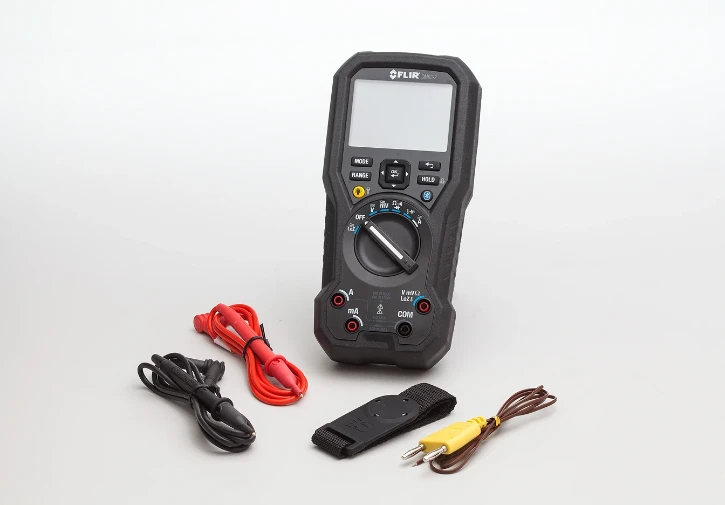

In de doos:
  • FLIR DM93-2 Di

Produktspezifikationen

Indication
Analogue/digital
Multiple display
Ja
Measuring range selection
Manual/automatic
Max. voltage measuring range AC
1000 V
Lowest resolution, AC voltage
0.001 mV
Max. voltage measuring range DC
1000 V
Lowest resolution, DC voltage
0.001 mV
Max. current measuring range, AC
10 A
Lowest resolution, AC current
1 µA
Max. current measuring range, DC
10 A
Lowest resolution, DC current
1 µA
Max. resistance measuring range
40 M Ohm
Milliohm measurement with 4 wire technique (Kelvin connection)
Nein
Lowest resolution, resistance
0.01 Ohm
Temperature measurement RTD
Nein
Temperature measurement TC
Ja
Max. temperature measuring range
1200 °C
Lowest resolution temperature
Other
Capacitance measurement
Ja
Max. capacitance measuring range
40000 µF
Lowest resolution, capacitance
0.00001 µF
Frequency measurement
Ja
Max. frequency measuring range
4000 kHz
Lowest resolution, frequency
0.001 Hz
Resistance test/diode test
Ja
Nominal test voltage 10 V
Nein
Nominal test voltage 50 V
Nein
Nominal test voltage 100 V
Nein
Nominal test voltage 250 V
Nein
Nominal test voltage 500 V
Nein
Nominal test voltage 1000 V
Nein
Cable length measurement
Nein
Cable symmetry testing for two wire connections a-b-E
Nein
Power and energy measurement
Nein
Harmonics analysis/power quality
Nein
With decibel measurement (dB)
Nein
Relative value measurement
Ja
Inductance measurement
Nein
With conductivity measurement
Nein
Continuity test
Ja
Data hold
Ja
Max. value storage
Ja
Min. value storage
Ja
Peak value memory
Ja
True RMS measurement
Ja
Duty cycle measurements
Nein
Rotational speed measuring
Nein
Measured value memory
Ja
Interface
Nein
Bluetooth interface
Ja
IR interface
Nein
Automatic circuit breaker
Nein
Measuring circuit category
CAT IV
Max. voltage measuring circuit category
600 V
Explosion-tested version
Nein
With display backlight
Ja
Temperature measurement
Ja
Degree of protection (IP)
IP54
Scaling bar graph linear
Nein
Scaling bar graph logarithmic
Nein
Max. voltage measuring range AC/DC
1000 V
Lowest resolution, AC/DC voltage
0.001 mV
Max. current measuring range, AC/DC
10 A
Lowest resolution, AC/DC current
1 µA
High voltage test for motor windings
Nein
Current supply
Battery
