Allgemeine Information

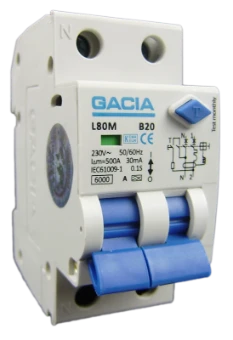

GACIA L80M-B16 Al.aut. 1p+n B16A 30mA 6kA
GACIA L80M-B16 Al.aut. 1p+n B16A 30mA 6kA
YESSS-Bestellnummer
1102-4542
Produktcode
L80M-B16
EAN-Code
08718995005420
Produktgruppe
Earth leakage circuit breaker
Marke
GACIA Europe
Serie
S-Series
Typ
Aardlekautomaat
Produktbeschreibung
GACIA L80M-B16 Al.aut. 1p+n B16A 30mA 6kA
Produktspezifikationen
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
16 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2
6 kA
Disconnection characteristic
Undelayed
Surge current capacity
3 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
B
Concurrently switching neutral conductor
Ja
With interlocking device
Ja
Overvoltage category
3
Pollution degree
2
Ambient temperature during operating
-25 - 40 °C
Width in number of modular spacings
2
Built-in depth
74 mm
Anti-nuisance tripping version
Nein
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1.5 - 16 mm²
Connectable conductor cross section multi-wired
1.5 - 10 mm²
