Allgemeine Information

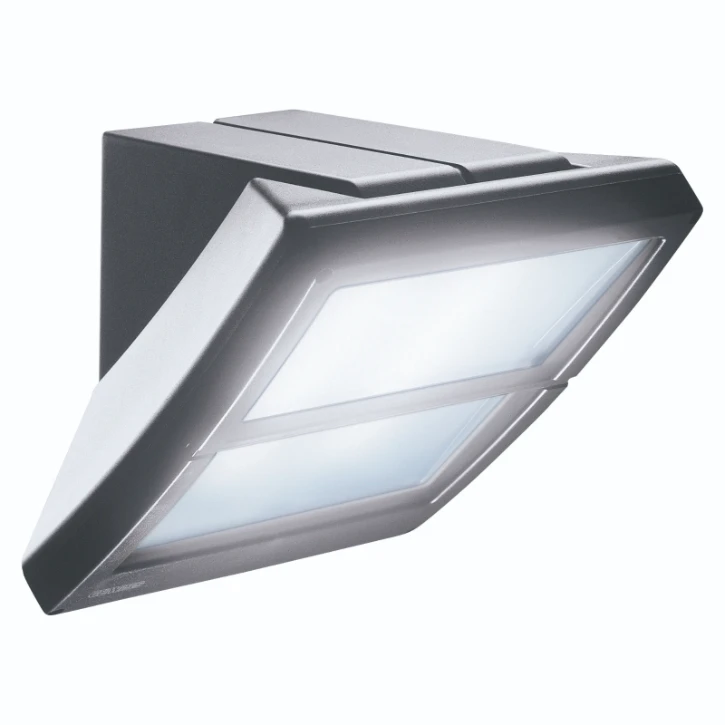

EXTRO 2X26-32W TC-TEL IP55 EVG GRAPH.-LED-Hublots 32W opal
EXTRO 2X26-32W TC-TEL IP55 EVG GRAPH.-LED-Hublots 32W opal
YESSS-Bestellnummer
3110-5433
Produktcode
GW82286
EAN-Code
08011564210332
Produktgruppe
Ceiling-/wall luminaire
Marke
Gewiss
Serie
EXTRO
Typ
GW82286
Produktbeschreibung
Multifunctioneel armatuur voor residentiële en openbare gebieden, met een polycarbonaat behuizing en opalen afscherming: Ook beschikbaar in 13W en 26W. Multifunctioneel armatuur voor residentiële en openbare gebieden, met een polycarbonaat behuizing en opalen afscherming. Mogelijkheid voor wand-, plafond- en mastmontage in de kleuren grafiet, wit en donkerblauw.
Produktspezifikationen
Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Nein
Suitable for built-in mounting
Nein
Suitable for surface mounting
Ja
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Nein
Lamp type
Compact fluorescent lamp
With light source
Nein
Suitable for number of light sources
1
Lamp holder
GX24q-3
Housing material
Plastic
Housing colour
Grey
Material cover
Glass opal
Type of grid
None
Voltage type
AC
Nominal voltage
220 - 220 V
Type of control gear
Electronic transformer
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Reflector

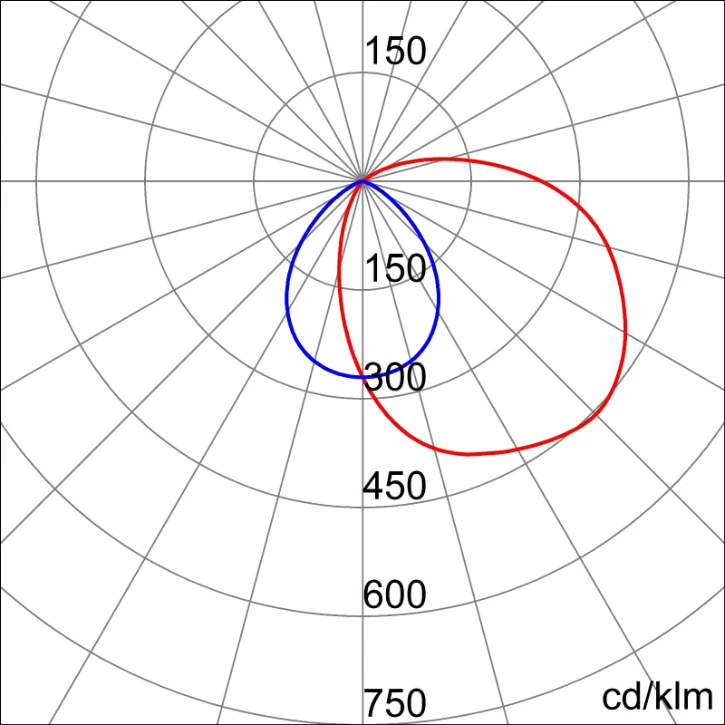

Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Impact strength
IK09
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
-25 - 25 °C
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Filament test according to IEC 60695-2-11
850 °C - 30 s
Suitable for lamp power
26 - 32 W

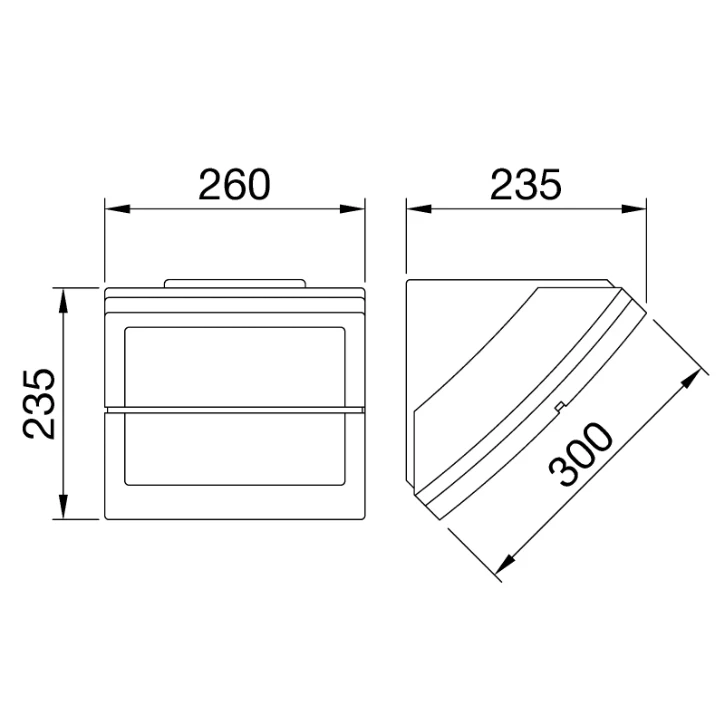

Width
260 mm
Height/depth
235 mm
Length
235 mm
Type of wiring
Ending
Number of poles
3
Connection type
Screwed terminal
Surface protection housing
Untreated
Exchangeable control gear
Nein
Dimming DALI-2
Nein
Max. number of luminaires per miniature circuit breaker C16 (MCB)
30
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Ja
Compatible with Casambi
Nein
