Allgemeine Information

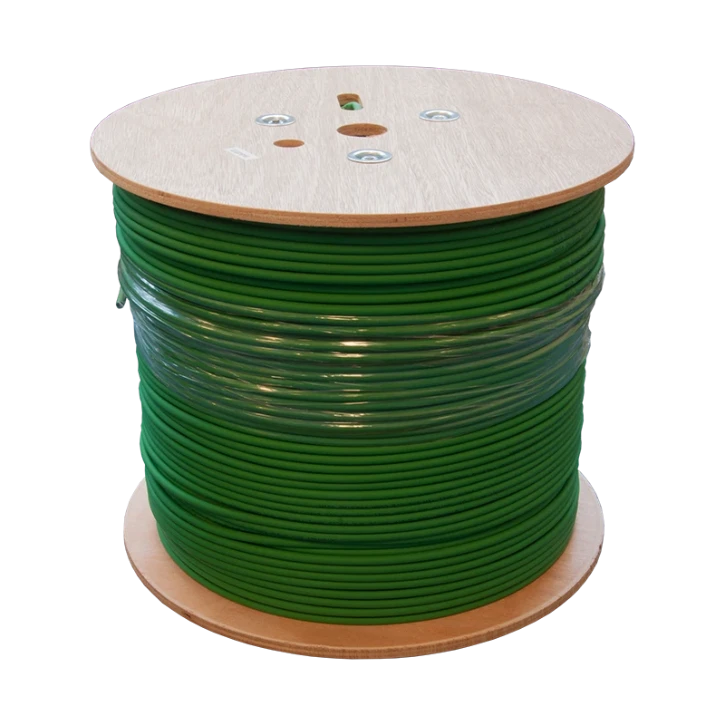

Cat6 U/UTP LSZH kabel 500m
Cat6 U/UTP LSZH kabel 500m
YESSS-Bestellnummer
3144-7511
Produktcode
ZN500BC13925000
EAN-Code
08719357026381
Produktgruppe
Data and communication cable
Marke
Grayle
Serie
Cat6 U/UTP LSZH 24AWG Dca 500m
Typ
Groen massief 500m
Produktbeschreibung
Deze Grayle Cat6 datakabel is ontwikkeld voor professionele netwerkinstallaties waar langere trajecten nodig zijn. De massieve koperen geleiders ondersteunen prestaties tot 250 MHz. De LSZH-mantel en Dca CPR-classificatie maken deze kabel geschikt voor binneninstallaties met brandveiligheidseisen.
Produktspezifikationen
Diameter conductor
0.511 mm
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
None
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
None
Longitudinal water blocking cable
Nein
Radial water blocking cable
Nein
Colour outer sheath
Green
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s3
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a3
Halogen free according to EN IEC 60754-2
Ja
Oil resistant according to EN IEC 60811-404
Nein
Outer diameter approximate
5.4 mm
Category
6
Suitable for underground installation
Nein
Conductor material
Copper
AWG size
24
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
Nein
Suitable as telephone cable
Ja
Suitable as computer data cable
Ja
Cable type
U/UTP
With rodent protection
Nein
Halogen free according to EN IEC 60754-1
Ja
Circuit integrity according to IEC 60331-23
Nein
Number of sheath layers
1
