Allgemeine Information

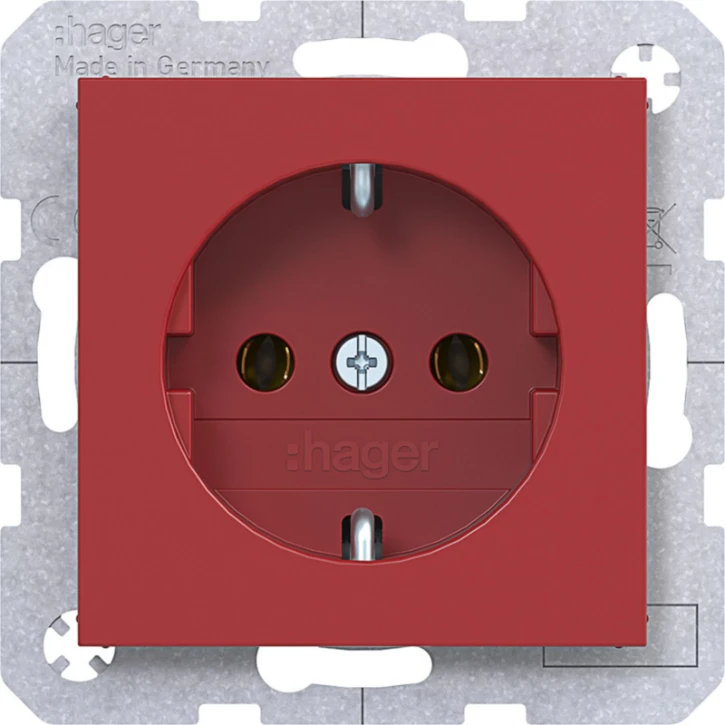

SCHUKO-wandcontactdoos, steekkl., A.x/C.x, rood glanzend
SCHUKO-wandcontactdoos, steekkl., A.x/C.x, rood glanzend
YESSS-Bestellnummer
3144-4845
Produktcode
WAS1100RG
EAN-Code
03250610070819
Produktgruppe
Socket outlet
Marke
Hager
Serie
A.x/C.x
Typ
Wandcontactdoos
Produktbeschreibung
SCHUKO-wandcontactdoos, steekkl., A.x/C.x, rood glanzend
Produktspezifikationen
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
Nein
Number of modules (module system)
0
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Push-in clamp
With hinged lid
Nein
With enhanced contact protection
Nein
Label space/information surface
Nein
Colour
Red
RAL-number (similar)
3020
Transparent
Nein
Lockable
Ja
Eject-mechanism
Nein
Insulated mounting
Ja
With function lighting
Nein
With orientation lighting
Nein
Overvoltage protection
Nein
Fault current protection
Nein
With miniature fuse
Nein
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Ja
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
Nein
With on/off switch
Nein
With loop through function
Ja
Rotated central insert
Nein
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 60 Hz
Rated fault current
16000 mA
Suitable for degree of protection (IP)
IP21
Impact strength
IK05
Device width
70.9 mm
Device height
70.9 mm
Device depth
41.3 mm
Min. depth of built-in installation box
40 mm
Metallic colour
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
For heavy conditions according to VDE
Nein
Number of ports USB-A
0
Number of ports USB-C
0
Max. current rating of USB power supply
0 A
Colour of switch operator
Other
With Wi-Fi signal repeater
Nein
With built-in bluetooth speaker
Nein
Compliant with UK Building Regulations Part M
Nein
Concurrently switching neutral conductor
Nein
Protective contact
Earthing clips
Number of active contacts (square)
0
Number of loop throughs
1
