Allgemeine Information

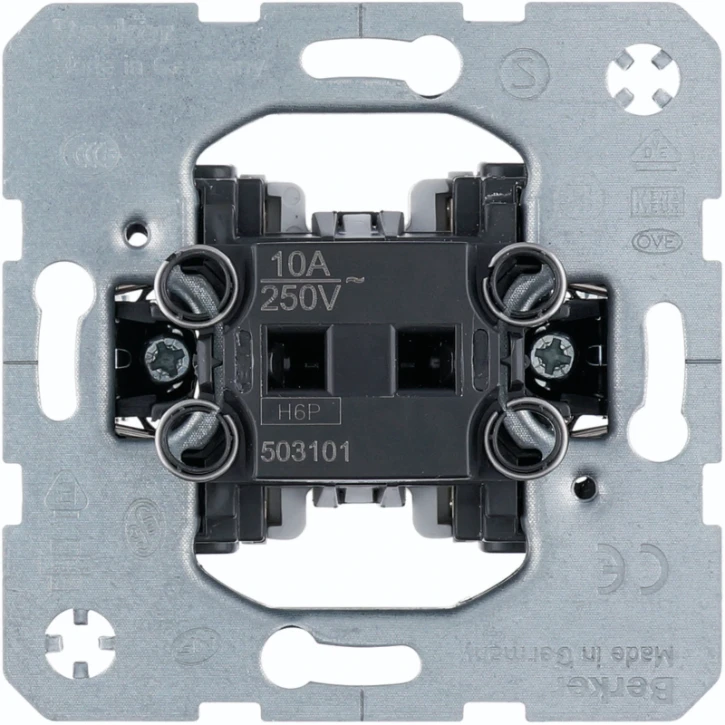

Taster Schließer mit zwei Meldekontakten
Taster Schließer mit zwei Meldekontakten
YESSS-Bestellnummer
1266-0220
Produktcode
503101
EAN-Code
04011334030300
Produktgruppe
Push button
Marke
Hager
Serie
berker
Typ
503101
Produktbeschreibung
-
Produktspezifikationen
Assembly arrangement
Basic element
Model
Single push button
Operating method
Rocker
Number of poles
1
Monitoring contact
Nein
Number of rockers
1
Number of modules (module system)
0
With lighting
Nein
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Other
Material quality
Other
Halogen free
Ja
Surface protection
Untreated
Surface finishing
matt
Anti-bacterial treatment
Nein
Colour
Other
Transparent
Nein
Label space/information surface
Nein
Imprint
None
With signal lamp
Nein
Suitable for degree of protection (IP)
IP20
Nominal voltage
250 V
Rated current
10 A
Device width
71 mm
Device height
71 mm
Device depth
41.6 mm
Min. depth of built-in installation box
35 mm
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
Nein
With light source
Nein
Connection type
Push-in clamp
Impact strength
IK07
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operating principle
Electromechanical
