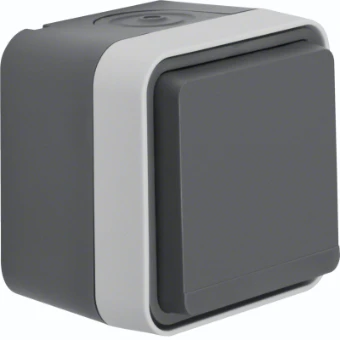

Steckdose SCHUKO mit Klappdeckel AP W.1 grau
- 2009-7142
- |
- 47403515
76 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Steckdose SCHUKO mit Klappdeckel AP W.1 grau
Steckdose SCHUKO mit Klappdeckel AP W.1 grau
YESSS-Bestellnummer
2009-7142
Produktcode
47403515
EAN-Code
04011334404217
Produktgruppe
Socket outlet
Marke
Hager
Serie
berker
Typ
W.1
Produktbeschreibung
-
Produktspezifikationen
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
Nein
Number of modules (module system)
1
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
Ja
With enhanced contact protection
Nein
Label space/information surface
Nein
Colour
Grey
RAL-number (similar)
7011
Transparent
Nein
Lockable
Nein
Eject-mechanism
Nein
Insulated mounting
Ja
With function lighting
Nein
With orientation lighting
Nein
Overvoltage protection
Nein
Fault current protection
Nein
With miniature fuse
Nein
Special power supply
ohne Sonderstromversorgung
Mounting method
Surface mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Other
Halogen free
Ja
Surface protection
Untreated
Surface finishing
matt
Anti-bacterial treatment
Nein
With on/off switch
Nein
With loop through function
Nein
Rotated central insert
Nein
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 60 Hz
Rated fault current
16 mA
Suitable for degree of protection (IP)
IP55
Impact strength
IK05
Device width
76 mm
Device height
76 mm
Device depth
63 mm
Min. depth of built-in installation box
0 mm
Metallic colour
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
For heavy conditions according to VDE
Nein
Colour of switch operator
Grey
With Wi-Fi signal repeater
Nein
With built-in bluetooth speaker
Nein
Compliant with UK Building Regulations Part M
Nein
Concurrently switching neutral conductor
Nein
Protective contact
Earthing clips
Number of loop throughs
1
