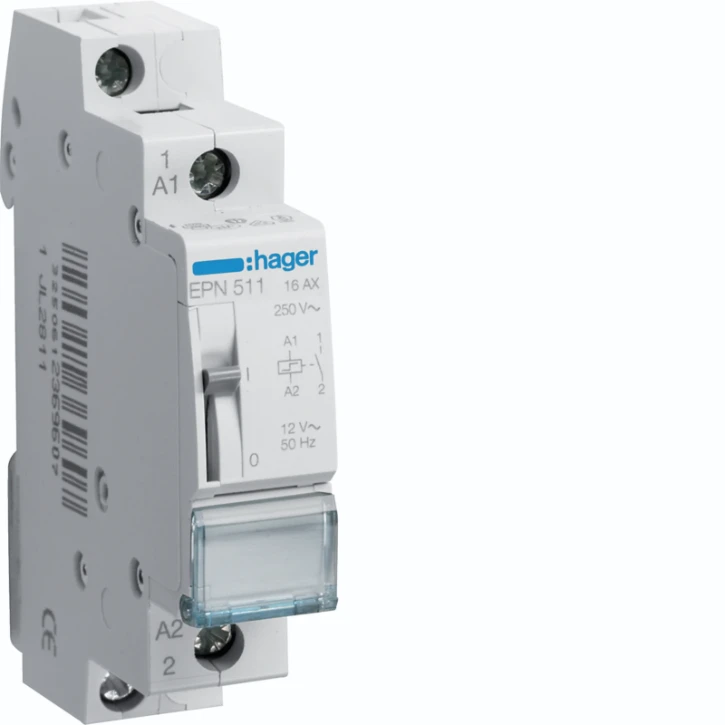

Fernschalter 1 Schließer 12V AC 16A 1PLE
- 0012-9751
- |
- EPN511
3 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Fernschalter 1 Schließer 12V AC 16A 1PLE
Fernschalter 1 Schließer 12V AC 16A 1PLE
YESSS-Bestellnummer
0012-9751
Produktcode
EPN511
EAN-Code
03250612369607
Produktgruppe
Latching relay
Marke
Hager
Typ
EPN511
Produktbeschreibung
-
Produktspezifikationen
Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
17.5
Built-in depth
63 mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1
12 - 12 V
Type of control voltage 1
AC
Frequency control voltage 1
50 - 60 Hz
Control voltage 2
0 - 0 V
Type of control voltage 2
DC
Frequency control voltage 2
50 - 60 Hz
Rated switch current
16 A
Supply voltage
250 - 250 V
Voltage type (supply voltage)
AC
Max. incandescent lamp load
1800 W
Max. load fluorescent lamp
800 VA
Max. load fluorescent lamp (Duo circuit)
1600 VA
Max. load fluorescent lamp (parallel compensated)
900 VA
Max. switching current (cos phi = 0.6)
16 A
Suitable for manual operation
Ja
