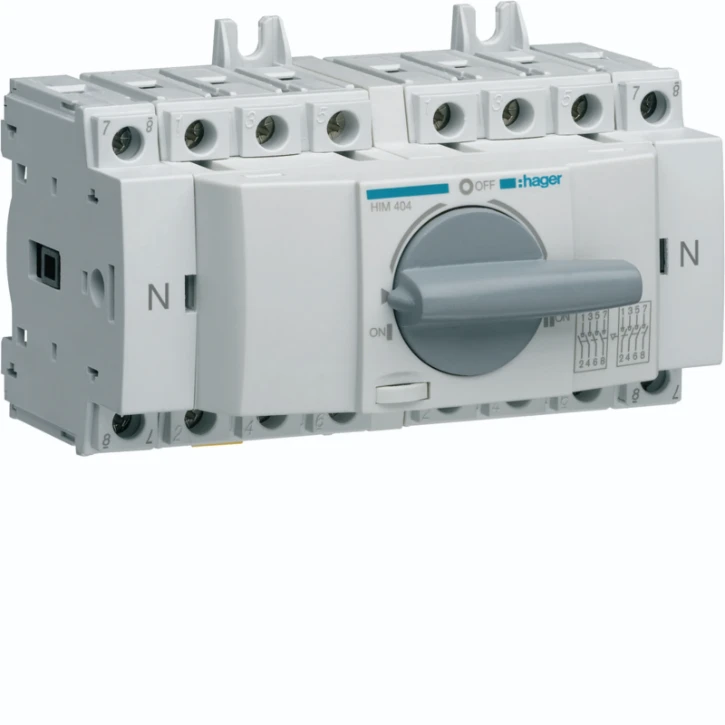

Lastumschalter 4polig 40A für Hutschiene/Montageplatte
- 0761-7997
- |
- HIM404
2 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Lastumschalter 4polig 40A für Hutschiene/Montageplatte
Lastumschalter 4polig 40A für Hutschiene/Montageplatte
YESSS-Bestellnummer
0761-7997
Produktcode
HIM404
EAN-Code
03250613140557
Produktgruppe
Switch disconnector (AC)
Marke
Hager
Typ
HIM404
Produktbeschreibung
-
Produktspezifikationen
Version as main switch
Ja
Version as maintenance-/service switch
Ja
Version as safety switch
Ja
Version as emergency stop installation
Nein
Version as reversing switch
Ja
Number of switches
1
Max. rated operation voltage Ue AC
415 V
Rated operating voltage
380 - 415 V
Rated permanent current Iu
40 A
Rated permanent current at AC-23, 400 V
40 A
Rated permanent current at AC-21, 400 V
40 A
Rated short-time withstand current lcw
1.26 kA
Rated operation power at AC-23, 400 V
18 kW
Switching power at 400 V
26 kW
Conditioned rated short-circuit current Iq
50 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
Nein
Motor drive integrated
Nein
Voltage release optional
Nein
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Nein
Suitable for front mounting centre
Nein
Suitable for distribution board installation
Ja
Suitable for intermediate mounting
Nein
Colour control element
Grey
Type of control element
Short rotary handle
Interlockable
Ja
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Degree of protection (NEMA)
Other
With pre-assembled cabling
Nein
Width
127.5 mm
Height
68 mm
Depth
89 mm
Width in number of modular spacings
8
Suitable for floor mounting
Nein
Housing colour
Grey
Housing material
Plastic
