Allgemeine Information

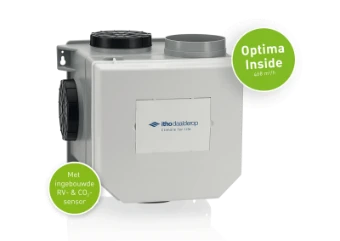

Ventilatiepakket Optima Inside CVE-S ECO HP
Ventilatiepakket Optima Inside CVE-S ECO HP
YESSS-Bestellnummer
3013-5713
Produktcode
03-00421
EAN-Code
08713418039068
Produktgruppe
Domestic fan
Marke
Itho Daalderop
Serie
Ventilatiepakket CVE-S ECO
Typ
CVE-S OPTIMA in
Produktbeschreibung
Het Optima Inside pakket bevat de CVE-S ECO HP met geïntegreerde vocht- en CO2-sensor en Perilexstekker, en het pakket bevat een extra snoer met Eurostekker. De ingebouwde CO2-sensor meet de CO2-concentratie en past de ventilatorsnelheid hier op aan. Met dit pakket heeft u alles bij de hand om de woning optimaal te ventileren.
Produktspezifikationen
Housing material
Plastic
Type of motor
Electronically commutated (EC)
Electrical connection
Perilex connecting cable
With wireless remote control
Nein
Suitable for wireless remote control
Ja
Suitable for requirement-controlled ventilation
Ja
Type of speed control
3 positions
Connection
Insert end
Number of suction connections
4
Rear connection
Nein
Depth
294 mm
Height
350 mm
Width
355 mm
Max. air volume at 50 Pa
520 m³/h
Max. air volume at 100 Pa
468 m³/h
Max. air volume at 150 Pa
415 m³/h
Max. air volume at 200 Pa
380 m³/h
Max. air volume at 250 Pa
350 m³/h
Max. air volume at 300 Pa
310 m³/h
Energy efficiency class
B
Control signal
Other
With wired control unit
Nein
Suitable for wired control unit
Ja
With internal humidity (RH) sensor
Ja
With external humidity (RH) sensor
Nein
Suitable for (extra) humidity (RH) sensor
Ja
With internal carbon dioxide (CO2) sensor
Ja
With external carbon dioxide (CO2) sensor
Nein
Suitable for (extra) carbon dioxide (CO2) sensor
Ja
With pressure sensor
Nein
Suitable for (extra) pressure sensor
Nein
With zone controller
Nein
Suitable for zone controller
Ja
Operation by app
Nein
With movement sensor
Nein
Suitable for movement sensor
Ja
Frequency supply voltage
50 - 50 Hz
Supply voltage
207 - 253 V
Max. nominal current
0.68 A
Sound performance level
72 dB(A)
Detects volatile organic compounds
Nein
Sensor controlled air flow
Ja
Suitable for wall mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for suspended mounting
Nein
Horizontal mounting
Ja
Vertical mounting
Ja
Suitable for floor mounting
Ja
Extra electrical connection included separately
Connection cable with Europlug
Power consumption at max. air volume at 100 Pa
75 W
With constant volume flow control
Nein
Nominal duct diameter suction side
125 mm
Nominal duct diameter exhaust air
125 mm
Suitable for mounting in suspended ceiling
Nein
Suitable for mounting in an attic
Ja
Weight
4 kg
