Allgemeine Information
Ventilatiepakket Alles in 1 CVE-S ECO SP
Ventilatiepakket Alles in 1 CVE-S ECO SP
YESSS-Bestellnummer
3013-5710
Produktcode
03-00404
EAN-Code
08713418038832
Produktgruppe
Domestic fan
Marke
Itho Daalderop
Serie
Ventilatiepakket CVE-S ECO
Typ
CVE-S PAK
Produktbeschreibung

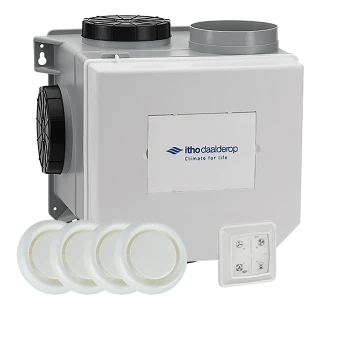

Dit pakket bevat alles om uw huidige ventilatiesysteem 1 op 1 te updaten naar een energiezuinig en comfortabel ventilatiesysteem. Naast de energiezuinige CVE-S ECO SP inclusief geïntegreerde vochtsensor bestaat het pakket uit een RFT-N Auto bediening, 4 ventielen en een extra aansluitsnoer met eurostekker. Standaard is de Perilexstekker aan de unit gemonteerd en met deze extra voeding is er voor elke situatie een oplossing.
Produktspezifikationen
Housing material
Plastic
Type of motor
Electronically commutated (EC)
Electrical connection
Perilex connecting cable
With wireless remote control
Ja
Suitable for wireless remote control
Ja
Suitable for requirement-controlled ventilation
Ja
Type of speed control
3 positions
Connection
Insert end
Number of suction connections
4
Rear connection
Nein
Depth
294 mm
Height
350 mm
Width
355 mm
Max. air volume at 50 Pa
415 m³/h
Max. air volume at 100 Pa
375 m³/h
Max. air volume at 150 Pa
325 m³/h
Max. air volume at 200 Pa
280 m³/h
Max. air volume at 250 Pa
230 m³/h
Max. air volume at 300 Pa
175 m³/h
Energy efficiency class
D
Control signal
Other
With wired control unit
Nein
Suitable for wired control unit
Ja
With internal humidity (RH) sensor
Ja
With external humidity (RH) sensor
Nein
Suitable for (extra) humidity (RH) sensor
Ja
With internal carbon dioxide (CO2) sensor
Nein
With external carbon dioxide (CO2) sensor
Nein
Suitable for (extra) carbon dioxide (CO2) sensor
Ja
With pressure sensor
Nein
Suitable for (extra) pressure sensor
Nein
With zone controller
Nein
Suitable for zone controller
Ja
Operation by app
Nein
With movement sensor
Nein
Suitable for movement sensor
Ja
Frequency supply voltage
50 - 50 Hz
Supply voltage
207 - 253 V
Max. nominal current
0.454 A
Sound performance level
69 dB(A)
Detects volatile organic compounds
Nein
Sensor controlled air flow
Ja
Suitable for wall mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for suspended mounting
Nein
Horizontal mounting
Ja
Vertical mounting
Ja
Suitable for floor mounting
Ja
Extra electrical connection included separately
Connection cable with Europlug
Power consumption at max. air volume at 100 Pa
44 W
With constant volume flow control
Nein
Nominal duct diameter suction side
125 mm
Nominal duct diameter exhaust air
125 mm
Suitable for mounting in suspended ceiling
Nein
Suitable for mounting in an attic
Ja
Weight
4 kg
