Allgemeine Information

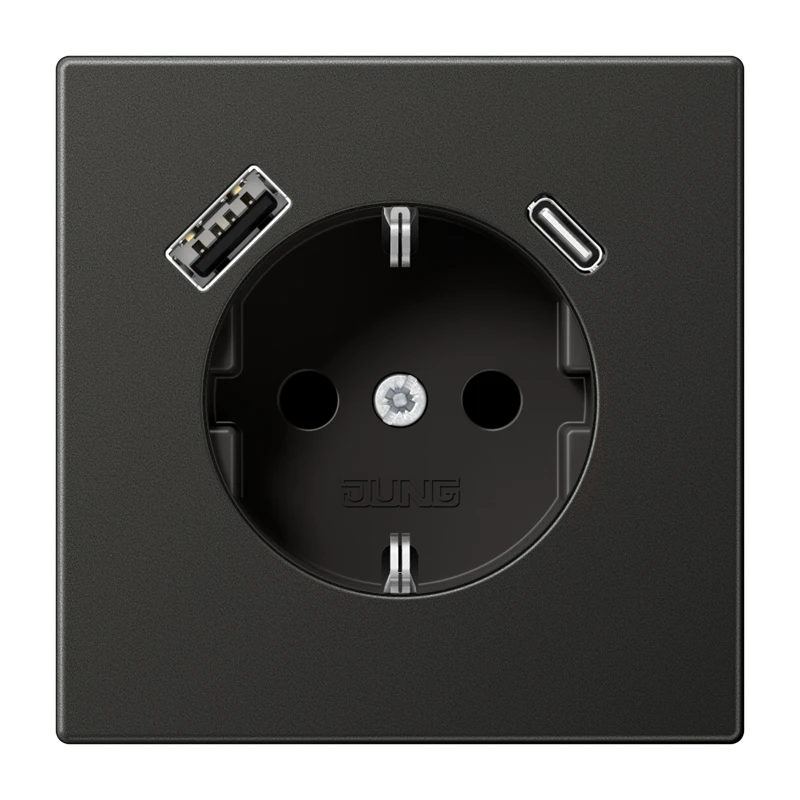

Wcd.m.lader LS990 gra.zw.v.USB type A&C
Wcd.m.lader LS990 gra.zw.v.USB type A&C
YESSS-Bestellnummer
3049-8560
Produktcode
LS1520-15CASWM
EAN-Code
04011377187627
Produktgruppe
Socket outlet
Marke
Jung
Serie
LS range
Typ
LS1520-15CASWM
Produktbeschreibung
Wcd.m.lader LS990 gra.zw.v.USB type A&C
Produktspezifikationen
Model
Socket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)
2
Number of active contacts (flat)
0
With signal lamp
Nein
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Push-in clamp
With hinged lid
Nein
With enhanced contact protection
Ja
Label space/information surface
Nein
Colour
Black
RAL-number (similar)
9005
Transparent
Nein
Lockable
Nein
Eject-mechanism
Nein
With function lighting
Nein
With orientation lighting
Nein
Overvoltage protection
Nein
Fault current protection
Nein
With miniature fuse
Nein
Mounting method
Flush-mounted
Type of fastening
Mounting with claw and screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Ja
Surface protection
Lacquered
Surface finishing
matt
Anti-bacterial treatment
Nein
With on/off switch
Nein
With loop through function
Ja
Rotated central insert
Nein
Nominal current
16 A
Nominal voltage
250 V
Frequency
50 - 50 Hz
Suitable for degree of protection (IP)
IP20
Device width
70 mm
Device height
70 mm
Min. depth of built-in installation box
57 mm
Metallic colour
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
For heavy conditions according to VDE
Nein
Number of ports USB-A
1
Number of ports USB-C
1
Max. current rating of USB power supply
3 A
With Wi-Fi signal repeater
Nein
With built-in bluetooth speaker
Nein
Concurrently switching neutral conductor
Nein
Protective contact
Earthing clips
Number of active contacts (square)
0
Number of loop throughs
1
Number of socket outlets
1
Socket outlets phase-separated
Nein
Mounting direction
Vertical
Assembly arrangement
Basic element with central cover plate
