Allgemeine Information
Holle wanddoos Batibox diepte 50mm 5mod.Mosaic
Holle wanddoos Batibox diepte 50mm 5mod.Mosaic
YESSS-Bestellnummer
0456-4783
Produktcode
080052
EAN-Code
03414971157262
Produktgruppe
Box/housing for built-in mounting in the wall/ceiling
Marke
Legrand
Serie
Inbouwdoos
Typ
Legrand 080052
Produktbeschreibung

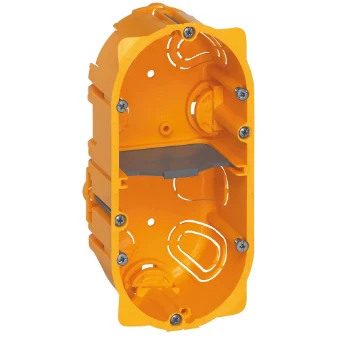

Holle wanddoos verticaal Batibox diepte 50mm 5modules voor Mosaic schakelmateriaal. Ook geschikt voor Mosaic badgelezers.
Produktspezifikationen
Mounting method
Hollow wall
Shape
oval
Construction type
Device connection box (round/square)
Model
Double
Provided with revolving ring
Nein
Couplable
Nein
Equipped with
None
Diameter
67 mm
Length
142 mm
Width
72.8 mm
Depth
53 - 53 mm
Inner depth
50 mm
For number of device inserts
5
Mounting switching equipment
Screw or spread out
With screws
Ja
Housing feed-through by break-out opening
Ja
Housing feed-through by seal membrane
Nein
Housing feed-through by nozzle
Nein
Housing feed-through by step membrane
Nein
For tube diameter
Other
Suitable for cable diameter
16 - 25 mm
Pipe locking
Nein
Pipe locking optional
Nein
Inlet from the rear
Ja
Number of inlets
6
Number of included spouts
0
Material
Plastic
Halogen free
Ja
Surface protection
Untreated
Colour
Yellow
Degree of protection (IP)
IP20
Cover model
None
Cover attachment
Other
Sealable
Nein
Circuit integrity
None
With screening
Nein
Airtight
Nein
Max. conductor cross section
0 mm²
Number of poles of the clamp
0
Clamp position fixed
Nein
Luminaire hook mounting
Nein
Nozzle
None
Special application
None
