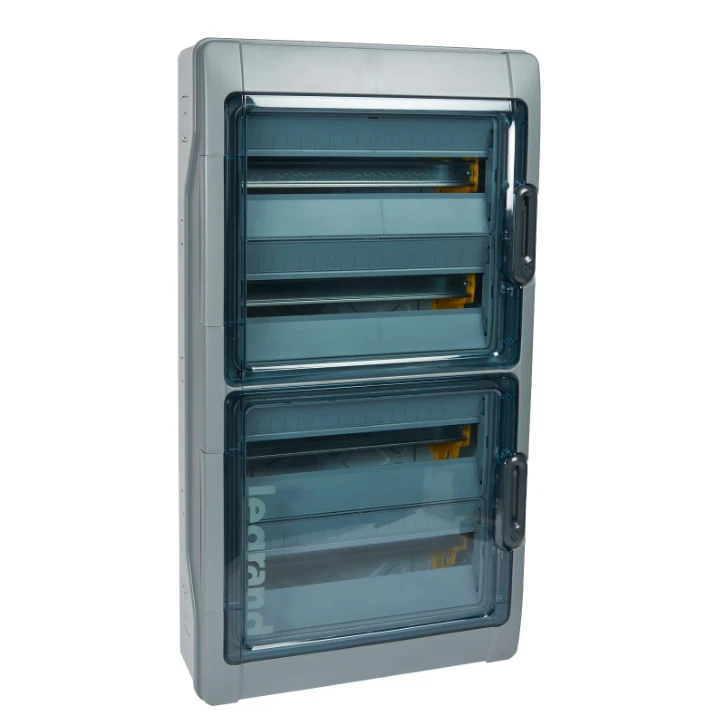

Plexo modulaire behuizing IP65 IK07 Klasse II, 4rijen, 72modules

  • 0848-3935
  • |
  • 601968
1 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

Plexo modulaire behuizing IP65 IK07 Klasse II, 4rijen, 72modules Plexo modulaire behuizing IP65 IK07 Klasse II, 4rijen, 72modules
YESSS-Bestellnummer
0848-3935
Produktcode
601968
EAN-Code
03245066019680
Produktgruppe
Small distribution board
Marke
Legrand
Serie
Installatiekasten
Typ
Legrand 601968

Produktbeschreibung

Produktspezifikationen

Mounting method
Surface mounted
Number of rows
4
Width in number of modular spacings
18
Type of covering
Door
Cover model
Closed
Transparent cover/door
Ja
Housing material
Plastic
Height
822 mm
Width
448 mm
Depth
161 mm
Built-in depth
157 mm
Inner depth
78 mm
DIN-rail
Ja
With mounting plate
Nein
Extension possible
Ja
EMC-version
Nein
Colour
Grey
RAL-number
7046
Degree of protection (IP)
IP65
With lock
Nein
Type of closure
Other
Built-in height
818 mm
Built-in width
444 mm
Earthing terminal block
Ja
Neutral terminal block
Nein
Signal passing door
Ja
Type of door
Single
Website des Herstellers.
