Allgemeine Information

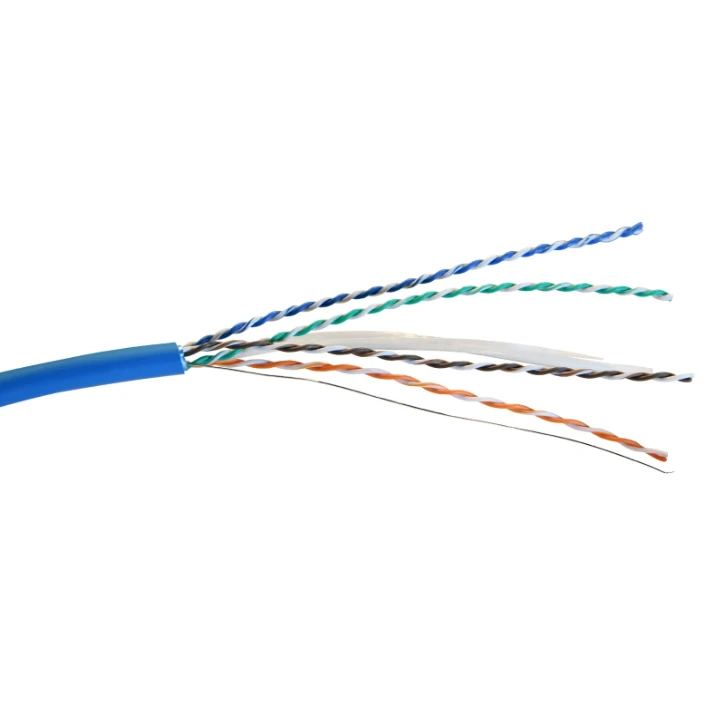

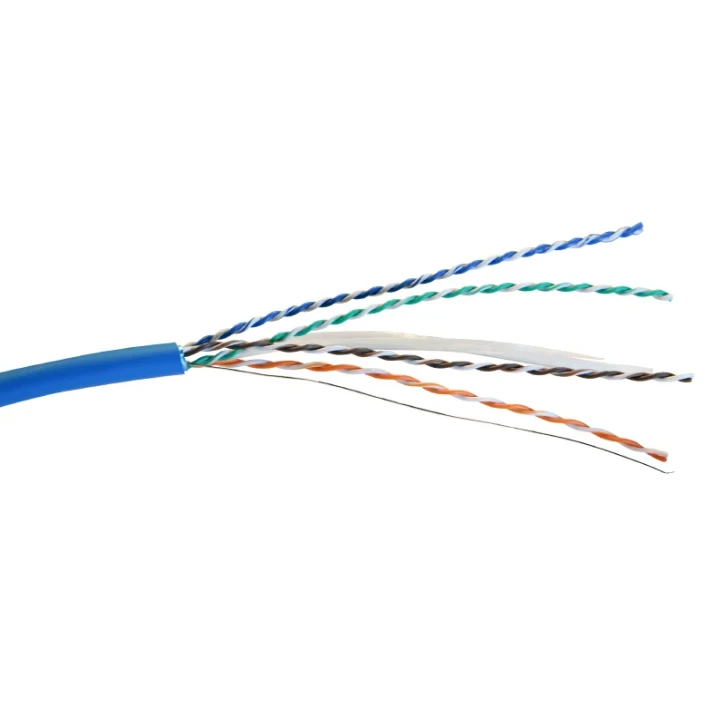

LCS Datakabel F/UTP Cat6 LSZH 250MHz 305 mtr in doos
LCS Datakabel F/UTP Cat6 LSZH 250MHz 305 mtr in doos Dca
YESSS-Bestellnummer
3047-5670
Produktcode
032856
EAN-Code
03414972020701
Produktgruppe
Data and communication cable
Marke
Legrand
Serie
LCS3 Copper
Typ
Legrand 032856
Produktbeschreibung
Produktspezifikationen
Conductor surface
Bare
Diameter conductor
0.56 mm
Nominal cross section conductor
0.25 mm²
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
None
Stranding
Bundle
Screen over stranding
Foil
Longitudinal water blocking cable
Nein
Radial water blocking cable
Ja
Protective sheath
None
Material outer sheath
Other
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Blue
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a1
Halogen free according to EN IEC 60754-2
Ja
Low smoke according to EN IEC 61034-2
Ja
Outer diameter approximate
7.1 mm
Min. permitted bending radius, moving application with forced guidance
57 mm
Min. permitted bending radius, stationary application/permanent installation
28.5 mm
Permitted cable outer temperature during assembling/handling
0 - 50 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
6
NVP value
66 %
Suitable for underground installation
Nein
Conductor material
Copper
AWG size
23
Core identification according to HD 308 S2
Nein
Approved type of underground installation
Other
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
Nein
Suitable as telephone cable
Ja
Suitable as computer data cable
Ja
Suitable as signalling cable
Nein
Weight
47 kg/km
Cable type
F/UTP
Drain wire
Nein
Compatible with Grade2TV according to XP-C 90-483
Nein
Compatible with Grade3TV according to XP-C 90-483
Nein
Flame retardant according to IEC 60332-1-2
Ja
Halogen free according to EN IEC 60754-1
Ja
Duplex
Nein
Suitable for use as security alarm cable
Nein
With rip cord
Nein
