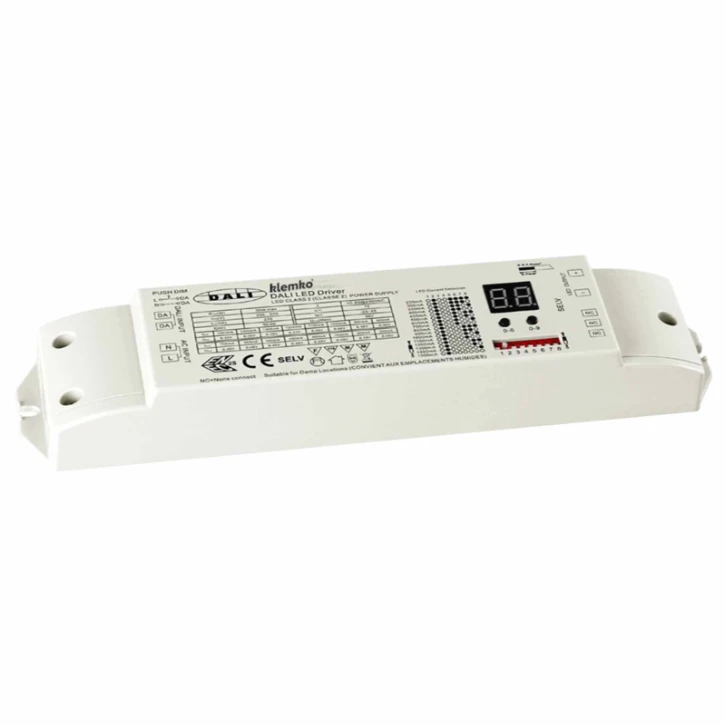

50Watt Dali constant stroom Driver inclusief CCT controller
- 3038-1839
- |
- 860444
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
50Watt Dali constant stroom Driver inclusief CCT controller
50Watt Dali constant stroom Driver inclusief CCT controller
YESSS-Bestellnummer
3038-1839
Produktcode
860444
EAN-Code
08716643065505
Produktgruppe
LED driver
Marke
Lumiko
Serie
Leddriver constante stroom, DALI
Typ
DA-DR-CC50W-CCT
Produktbeschreibung
50Watt Dali constant stroom Driver inclusief CCT controller
Produktspezifikationen
Suitable for outdoor use
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Ja
Dimming DSI
Nein
Dimming DMX
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Ja
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Ja
Housing
Plastic housing
Suitable for constant current
Ja
Suitable for constant voltage
Nein
Output voltage
8 - 48 V
Output current
250 - 1500 mA
Suitable for DC-voltage (primary side)
Nein
Output power
2 - 50 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length
210 mm
Width
50 mm
Height
32 mm
Constant light output (CLO)
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Dimmable
Ja
Dimming DALI-2
Ja
Input voltage
200 - 240 V
Frequency input voltage
50 - 60 Hz
Independently operating
Ja
Overload protection
Ja
Overtemperature protection
Ja
Short-circuit protected
Ja
Dimming D4i
Nein
Emergency power supply system
None
Ambient temperature
-20 - 45 °C
Number of colour channels
1
DIN-rail mounting
Nein
Operation by Matter
Nein
