Allgemeine Information
Leddriver constante stroom 300-1050 mA, 38W, DALI2/puls
Leddriver constante stroom 300-1050 mA, 38W, DALI2/puls
YESSS-Bestellnummer
3052-7071
Produktcode
860009
EAN-Code
08716643070608
Produktgruppe
LED driver
Marke
Lumiko
Serie
Leddriver constante stroom, DALI
Typ
LD-CC-DALI-38
Produktbeschreibung
Leddriver constante stroom 300-1050 mA, 38W, DALI2/puls
Produktspezifikationen
Suitable for outdoor use
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Ja
Dimming DSI
Nein
Dimming DMX
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Ja
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Ja
Housing
Plastic housing
Suitable for constant current
Ja
Suitable for constant voltage
Nein
Output voltage
10 - 54 V
Output current
300 - 1050 mA
Suitable for DC-voltage (primary side)
Nein
Output power
3 - 38 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II

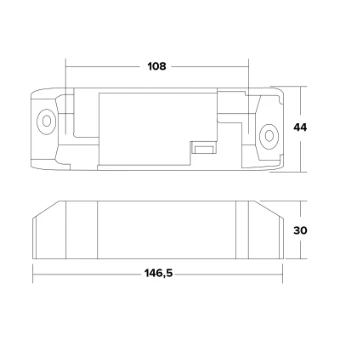

Length
146.5 mm
Width
44 mm
Height
30 mm
Constant light output (CLO)
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Dimmable
Ja
Dimming DALI-2
Ja
Input voltage
220 - 240 V
Frequency input voltage
50 - 60 Hz
Independently operating
Ja
Overload protection
Ja
Overtemperature protection
Ja
Short-circuit protected
Ja
Dimming D4i
Nein
Emergency power supply system
None
Ambient temperature
-25 - 45 °C
Number of colour channels
1
DIN-rail mounting
Nein
Operation by Matter
Nein
