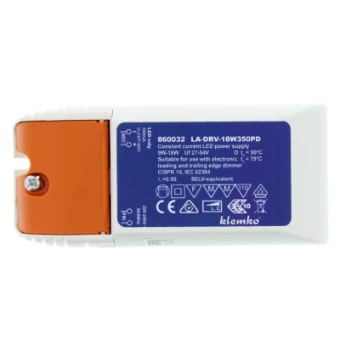

Leddriver constante stroom 350mA 9-18W, 27-54V, dimbaar
- 1870-8073
- |
- 860032
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Leddriver constante stroom 350mA 9-18W, 27-54V, dimbaar
Leddriver constante stroom 350mA 9-18W, 27-54V, dimbaar
YESSS-Bestellnummer
1870-8073
Produktcode
860032
EAN-Code
08716643057258
Produktgruppe
LED driver
Marke
Lumiko
Serie
Leddriver constante stroom, Fase di
Typ
DRV-18W350PD
Produktbeschreibung
Leddriver constante stroom 350mA 9-18W, 27-54V, dimbaar
Produktspezifikationen
Suitable for outdoor use
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DSI
Nein
Dimming DMX
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Ja
Dimming phase cut-off (trailing edge)
Ja
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Housing
Plastic housing
Suitable for constant current
Ja
Suitable for constant voltage
Nein
Output voltage
27 - 54 V
Output current
350 - 350 mA
Suitable for DC-voltage (primary side)
Nein
Output power
9 - 18 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length
120 mm
Width
53 mm
Height
27 mm
Constant light output (CLO)
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Dimmable
Ja
Dimming DALI-2
Nein
Input voltage
220 - 240 V
Frequency input voltage
50 - 60 Hz
Independently operating
Ja
Overload protection
Ja
Overtemperature protection
Ja
Dimming D4i
Nein
Emergency power supply system
None
Ambient temperature
-20 - 55 °C
Number of colour channels
1
DIN-rail mounting
Nein
Operation by Matter
Nein
