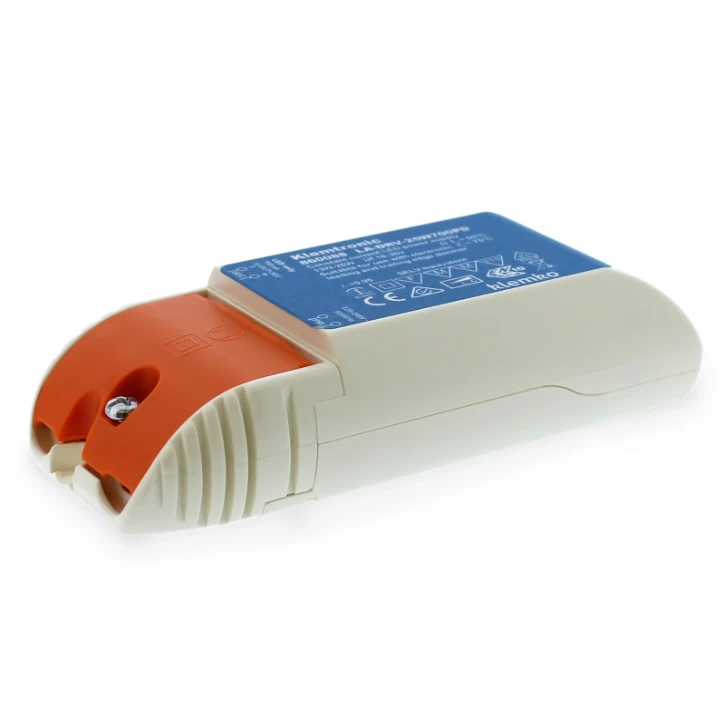

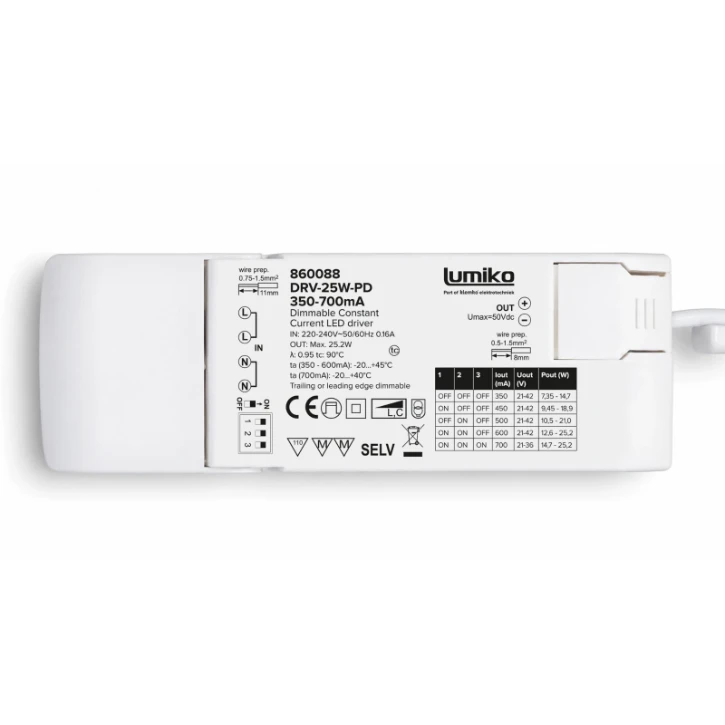

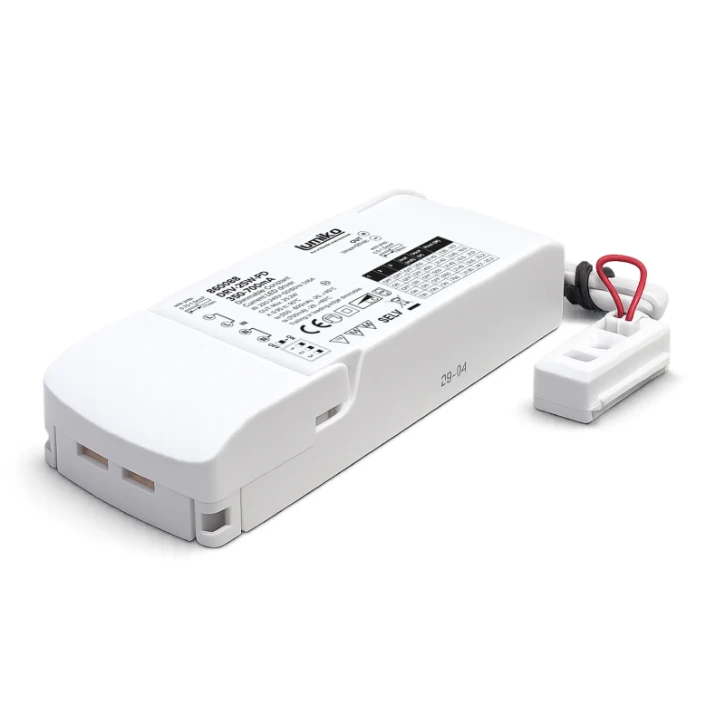

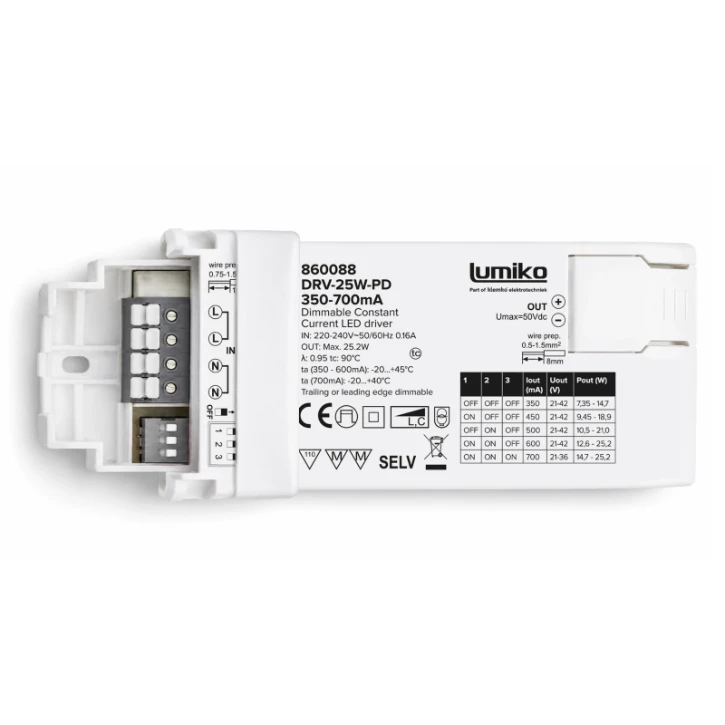

Leddriver constante stroom 700mA 14.7-25.2W, 21-36V
- 2020-3831
- |
- 860088
1 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Leddriver constante stroom 700mA 14.7-25.2W, 21-36V
Leddriver constante stroom 700mA 14.7-25.2W, 21-36V
YESSS-Bestellnummer
2020-3831
Produktcode
860088
EAN-Code
08716643057296
Produktgruppe
LED driver
Marke
Lumiko
Serie
Leddriver constante stroom
Typ
LA-DRV-25W700PD
Produktbeschreibung
Leddriver constante stroom 700mA 14.7-25.2W, 21-36V
Produktspezifikationen
Suitable for outdoor use
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DSI
Nein
Dimming DMX
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Ja
Dimming phase cut-off (trailing edge)
Ja
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Housing
Plastic housing
Suitable for constant current
Ja
Suitable for constant voltage
Nein
Output voltage
21 - 36 V
Output current
350 - 700 mA
Suitable for DC-voltage (primary side)
Ja
Output power
14.7 - 25.2 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length
125 mm
Width
45 mm
Height
25 mm
Constant light output (CLO)
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Dimmable
Ja
Dimming DALI-2
Nein
Input voltage
198 - 264 V
Frequency input voltage
50 - 60 Hz
Independently operating
Ja
Overload protection
Ja
Overtemperature protection
Ja
Short-circuit protected
Ja
Dimming D4i
Nein
Efficiency
85 %
Mains surge immunity (common mode, L/N-Ground)
2 kV
Mains surge immunity (differential mode, L-N)
2 kV
Emergency power supply system
None
Ambient temperature
-20 - 45 °C
Max. number of luminaires per miniature circuit breaker B16 (MCB)
56
Max. number of luminaires per miniature circuit breaker C16 (MCB)
100
Driver lifetime
50000 h
Number of colour channels
1
DIN-rail mounting
Nein
Operation by Matter
Nein
