Allgemeine Information

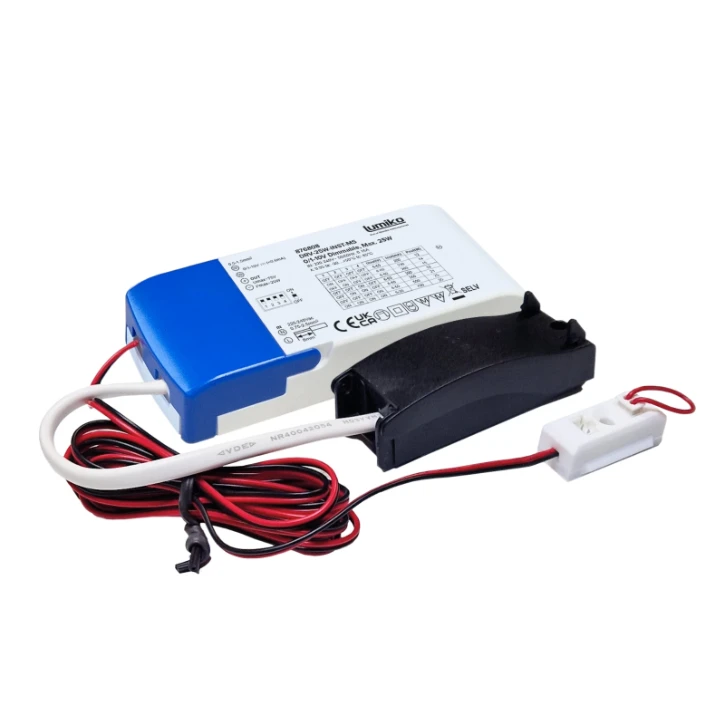

Led driver constante Stroom 25W, 700mA, 0/1-10V, met snoer
Led driver constante Stroom 25W, 700mA, 0/1-10V, met snoer
YESSS-Bestellnummer
0276-1480
Produktcode
876808
EAN-Code
08716643041271
Produktgruppe
LED driver
Marke
Lumiko
Serie
Leddriver universeel, 1-10V
Typ
DRV-25W-700-MS
Produktbeschreibung
Led driver constante Stroom 25W, 700mA, 0/1-10V, met snoer
Produktspezifikationen
Suitable for outdoor use
Nein
Dimming 0-10 V
Ja
Dimming 1-10 V
Ja
Dimming DALI
Nein
Dimming DSI
Nein
Dimming DMX
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Housing
Plastic housing
Suitable for constant current
Ja
Suitable for constant voltage
Nein
Output voltage
6 - 60 V
Output current
200 - 700 mA
Suitable for DC-voltage (primary side)
Nein
Output power
1.2 - 25.2 W
Degree of protection (IP)
IP20
Protection class according to IEC 61140
II
Length
119 mm
Width
52 mm
Height
22.5 mm
Constant light output (CLO)
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Operation by Bluetooth
Nein
Compatible with Casambi
Nein
Dimmable
Ja
Dimming DALI-2
Nein
Input voltage
180 - 240 V
Frequency input voltage
50 - 60 Hz
Independently operating
Ja
Overload protection
Ja
Overtemperature protection
Ja
Short-circuit protected
Ja
Dimming D4i
Nein
Emergency power supply system
None
Ambient temperature
-20 - 50 °C
Driver lifetime
50000 h
Number of colour channels
1
DIN-rail mounting
Nein
Operation by Matter
Nein
