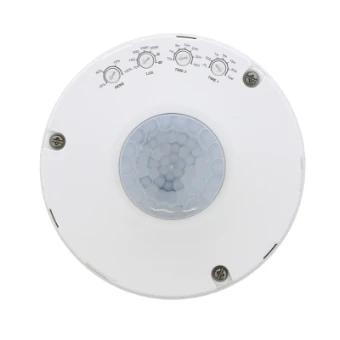

Aanwezigheidssensor opbouw PIR, 230V, 10A, HVAC, Ø10m, 80m², Wit
- 3109-6687
- |
- 870478
21 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Aanwezigheidssensor opbouw PIR, 230V, 10A, HVAC, Ø10m, 80m², Wit
Aanwezigheidssensor opbouw PIR, 230V, 10A, HVAC, Ø10m, 80m², Wit
YESSS-Bestellnummer
3109-6687
Produktcode
870478
EAN-Code
08716643079144
Produktgruppe
Movement sensor/presence detector complete
Marke
Lumiko
Serie
Sensoren
Typ
OB-PIR-ECO-W
Produktbeschreibung
Aanwezigheidssensor opbouw PIR, 230V, 10A, HVAC, Ø10m, 80m², Wit
Produktspezifikationen
Model
Movement sensor
Constant light control
Nein
HVAC-control
Ja
Animal zone
Nein
Networkable
Nein
Scan angle
360 °
Optimum mounting height
2.5 m
Max. reach sideways
5 m
Max. presence range
154 m²
Max. reach frontally
2 m
Diameter reach on floor
10 m
Suitable for wireless transmission
Nein
Remote operation
Ja
With remote control
Nein
Response value sensitivity adjustable
Ja
Response value luminosity adjustable
Ja
Teach-function for response value luminosity
Ja
Suitable for ceiling mounting
Ja
Dim function with dimmer basic element
Nein
Mounting method
Surface mounted
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Ja
Surface protection
Untreated
Surface finishing
matt
Anti-bacterial treatment
Nein
Colour
White
RAL-number (similar)
9016
Transparent
Nein
Degree of protection (IP)
IP55
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
30 s
Max. duty cycle
30 min
Detection angle horizontal
60 - 360 °
Response value luminosity
10 - 2000 lx
Max. switching power
2300 W
Number of switching zones
1
Max. starting current
117 A
Substation input
Ja
With alarm function
Nein
Width
111.7 mm
Height
39.9 mm
Diameter
111.7 mm
Max. switching power LED
400 W
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Nominal voltage
220 - 240 V
With acoustic sensor
Nein
With connection cable
Nein
Ceiling built-in mounting without installation box
Nein
Compatible with Casambi
Nein
Movement sensor/presence detector technology
Passive infrared
