Allgemeine Information

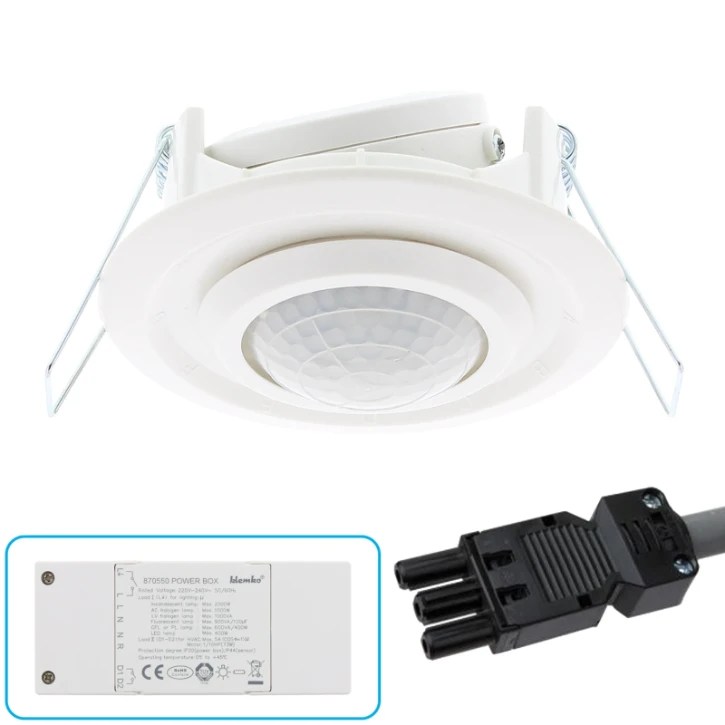

Aanwezigheid detector plafond PIR, 2300W, 7M, 40m2, 2 Relais-G3, Wiela
Aanwezigheid detector plafond PIR, 2300W, 7M, 40m2, 2 Relais-G3, Wiela
YESSS-Bestellnummer
1232-8594
Produktcode
870940
EAN-Code
08716643046191
Produktgruppe
Movement sensor/presence detector complete
Marke
Lumiko
Serie
Sensoren
Typ
PLF-IB-PIR-WI
Produktbeschreibung
Aanwezigheid detector plafond PIR, 2300W, 7M, 40m2, 2 Relais-G3, Wieland GST 18/3
Produktspezifikationen
Model
Movement sensor
Constant light control
Nein
HVAC-control
Ja
Forced switch off
Nein
Animal zone
Nein
Creep-under protection
Nein
Networkable
Nein
Scan angle
360 °
Optimum mounting height
2.5 m
Staircase light controller
Nein
Bridging switch
Ja
Max. reach sideways
3.5 m
Max. presence range
40 m²
Max. reach frontally
1.5 m
Diameter reach on floor
7 m
Suitable for wireless transmission
Nein
Remote operation
Nein
With remote control
Nein
Response value sensitivity adjustable
Ja
Response value luminosity adjustable
Ja
With signal unit
Nein
Teach-function for response value luminosity
Ja
Suitable for ceiling mounting
Ja
Dim function with dimmer basic element
Nein
Mounting method
Flush-mounted
Connection type
Push-in clamp
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
matt
Anti-bacterial treatment
Nein
Colour
White
RAL-number (similar)
9010
Transparent
Nein
Degree of protection (IP)
IP44
Voltage type
AC
Frequency
50 - 60 Hz
Min. switch-on time
5 s
Max. duty cycle
30 min
Detection angle horizontal
30 - 360 °
Swivel range sensor, vertical
0 - 30 °
Response value luminosity
10 - 2000 lx
Max. switching power
2300 W
Number of switching zones
1
Max. starting current
165 A
Substation input
Ja
With alarm function
Nein
Width
80 mm
Height
12.2 mm
Diameter
80 mm
Built-in width
65 mm
Built-in depth
38.5 mm
Built-in diameter
65 mm
Max. switching power LED
2300 W
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Nominal voltage
220 - 240 V
Suitable for wall mounting
Nein
With acoustic sensor
Nein
With connection cable
Ja
Connection cable length
1000 mm
Ceiling built-in mounting without installation box
Ja
Compatible with Casambi
Nein
Movement sensor/presence detector technology
Passive infrared
Ambient temperature
-20 - 45 °C
