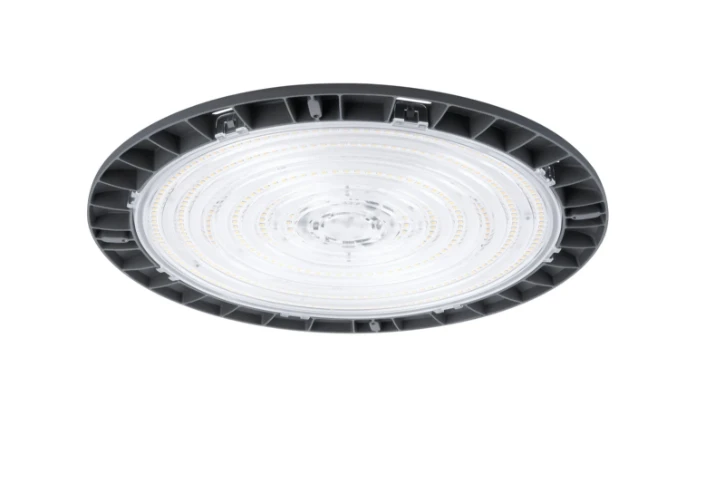

MAZDA+ BY009P 140S/840 PSU WB
- 3122-0656
- |
- 8719514530614
0 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information

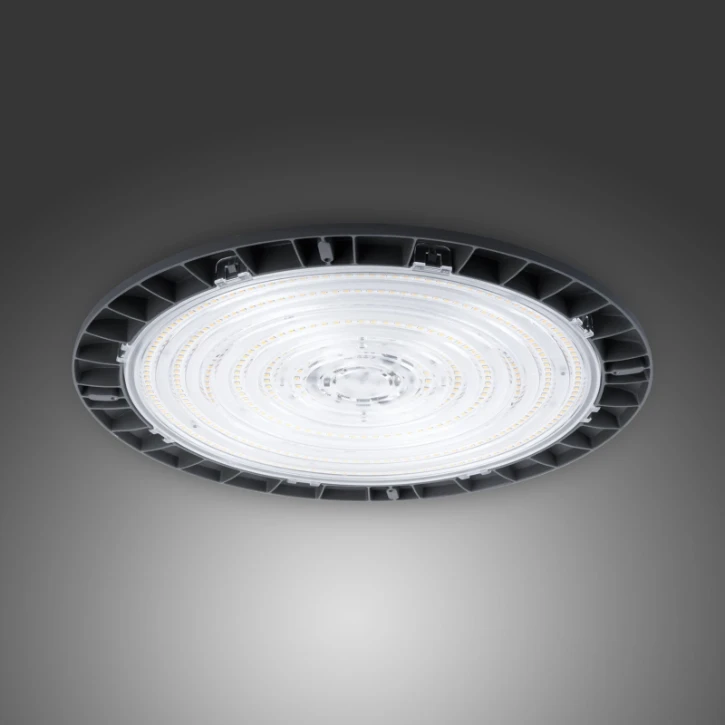

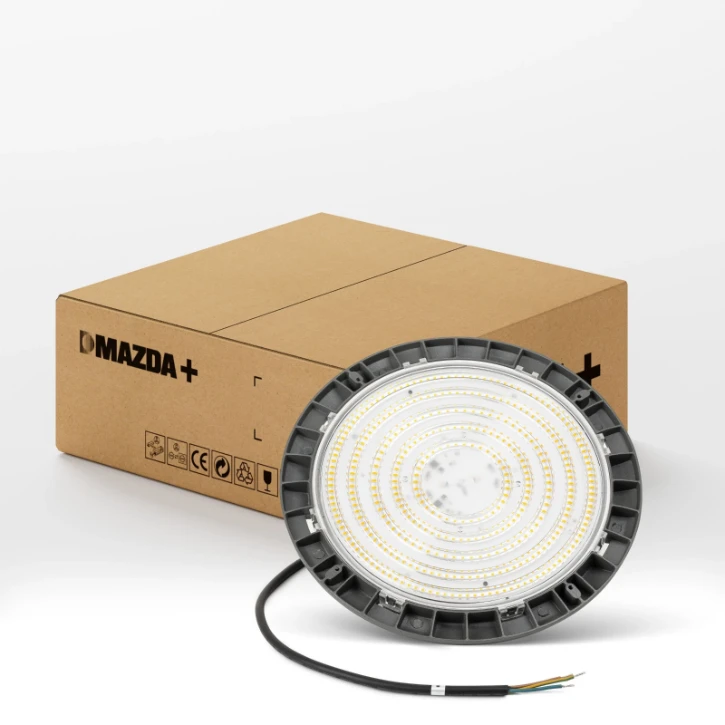

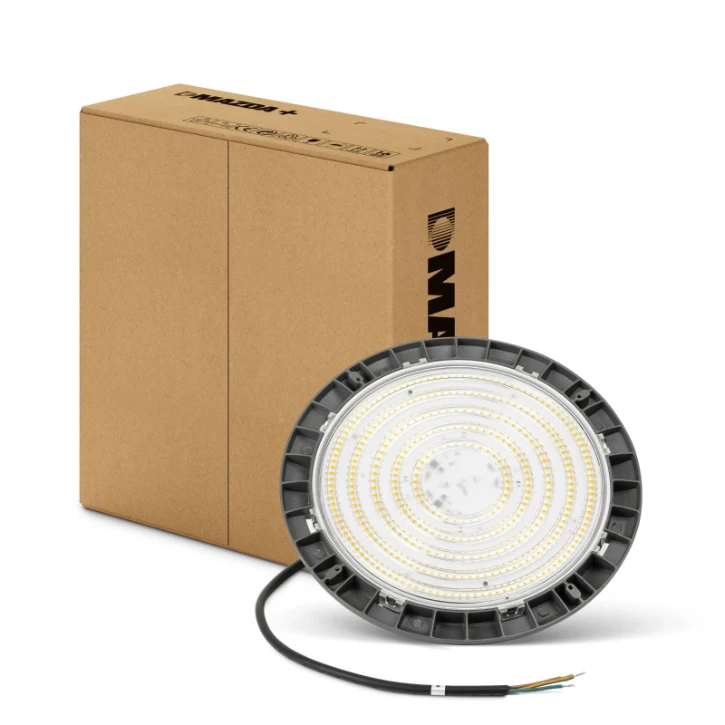

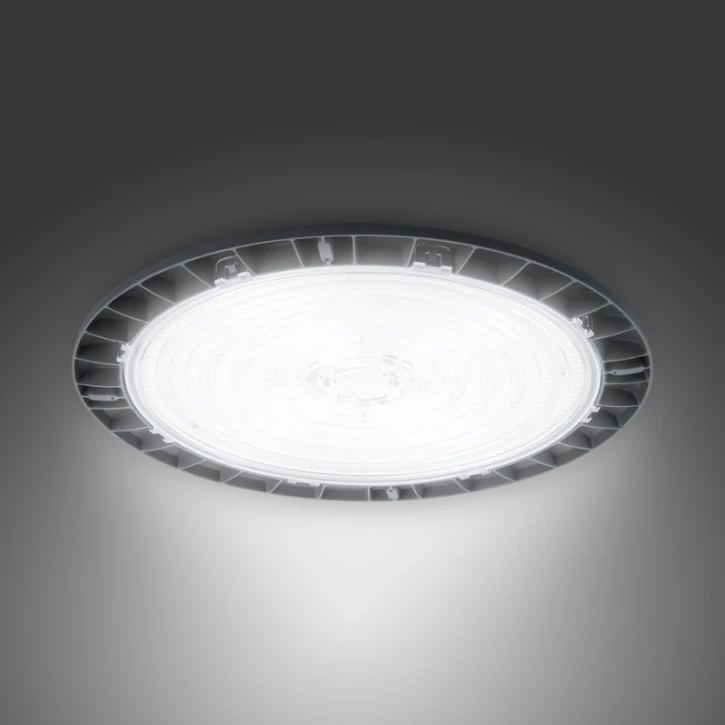

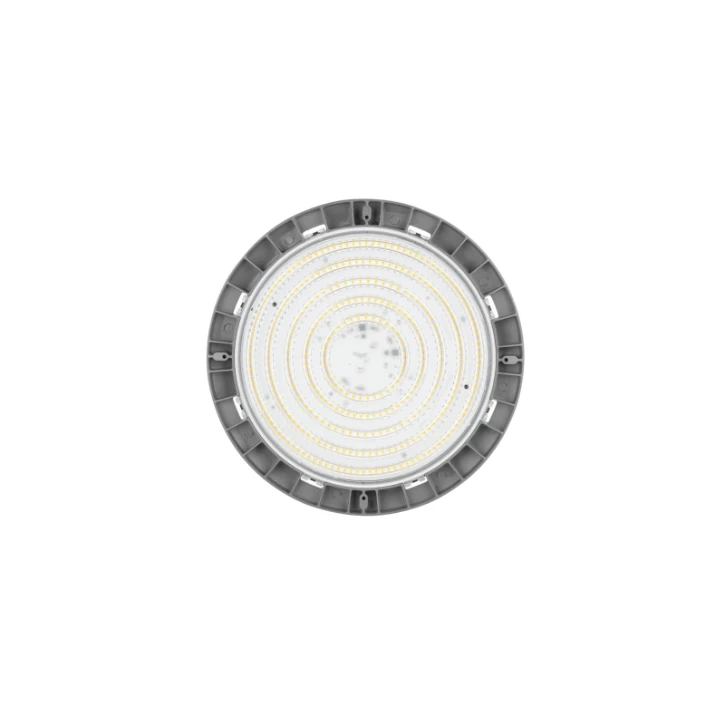

MAZDA+ BY009P 140S/840 PSU WB
MAZDA+ BY009P 140S/840 PSU WB
YESSS-Bestellnummer
3122-0656
Produktcode
8719514530614
EAN-Code
08719514530614
Produktgruppe
High bay luminaire
Marke
MAZDA
Serie
Mazda
Typ
Waterdicht armatuur
Produktbeschreibung

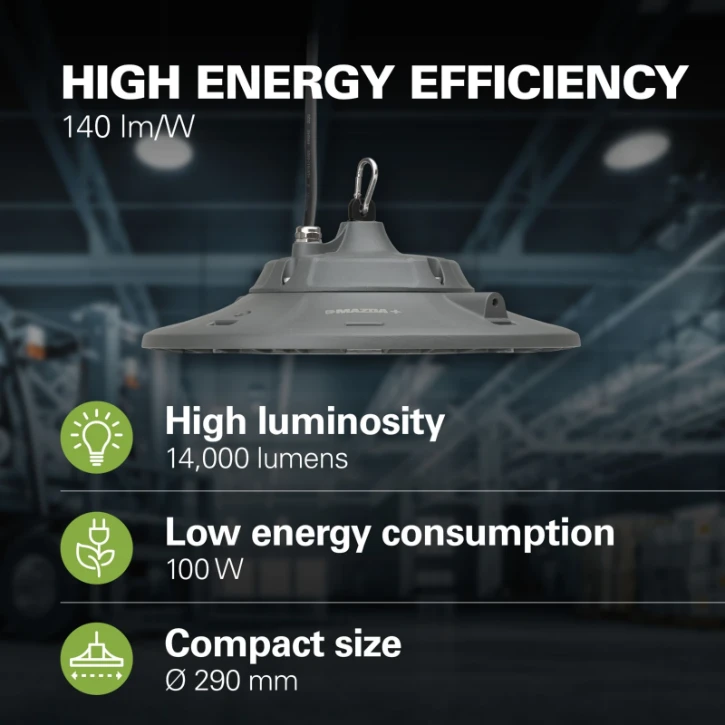

Mazda+ highbay armaturen D290 mm, Gietaluminium, Grijs, Verkeersgrijs B (RAL7043), Voedingsunit (aan/uit), 14000 lm, 100 W, 140 lm/W, 4000 K, (0.3825, 0.3798) SDCM≤5, Bundelhoek 90°, Opaal, Polycarbonaat, IP 65 | Bescherming tegen binnendringen van stof, straalwaterdicht, IK07 | 2 J versterkt, Veiligheidsklasse I, Aansluitunit, 3-polig
Produktspezifikationen
Lamp type
LED not exchangeable
With light source
Ja
Suitable for auxiliary lamp
Nein
Lamp holder
Other
Housing material
Aluminium
Housing colour
Grey
Voltage type
AC
Nominal voltage
120 - 277 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming potentiometer (integrated)
Nein
Dimming LineSwitch
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Sine Wave Reduction
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distribution
Symmetric
Light distributor
Diffuser lens/optic/panel
Reflector
None
Material reflector
Plastic
Beam angle
Open beam/diffuse
Degree of protection (IP)
IP65
Impact strength
IK07
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Filament test according to IEC 60695-2-11
650 °C - 30 s
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Suitable for lamp power
100 - 100 W
Max. system power
100 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9

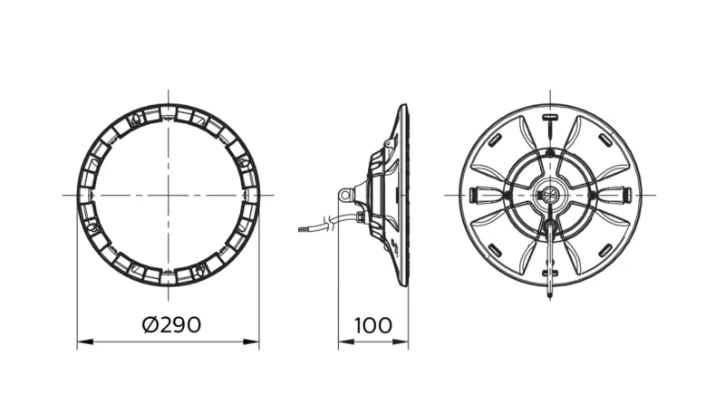

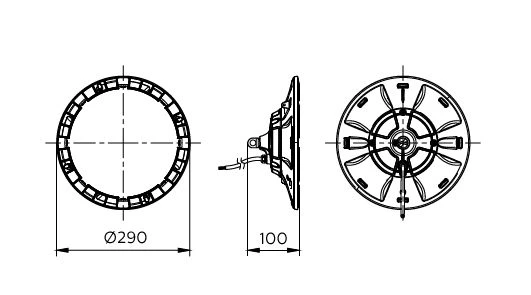

Outer diameter
290 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
1 mm²
Connection type
Other
Suitable for emergency lighting
Nein
With protective cover
Ja
Nominal current
370 - 960 mA
Exchangeable control gear
Nein
Colour consistency (McAdam ellipse)
SDCM5
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
70 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
7.5 %
Constant light output (CLO)
Nein
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
6
Max. number of luminaires per miniature circuit breaker C16 (MCB)
12
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
Nein
Reflector colour
White
Photobiological safety according to EN 62471
RG1
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Nein
With movement sensor
Nein
Dimmable
Nein
Dimming DALI-2
Nein
Suitable for ceiling mounting
Ja
Suitable for wall mounting
Nein
Suitable for suspended mounting
Ja
Luminaire efficacy
140 - 140 lm/W
Rated luminous flux according to IEC 62722-2- 1
14000 - 14000 lm
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1 - 1 mm²
With presence detector
Nein
With light sensor
Nein
Containing product according to 2019/2020/EU
Ja
Total harmonic distortion (THD)
25 %
Ball-proof according to DIN 18032-3
Nein
