Allgemeine Information
LP902P NC Sky W60L60
LP902P NC Sky W60L60
YESSS-Bestellnummer
3108-5727
Produktcode
8718699831424
EAN-Code
08718699831424
Produktgruppe
Ceiling-/wall luminaire
Marke
NATURECONNECT
Serie
NatureConnect
Typ
Inbouwarmatuur
Produktbeschreibung

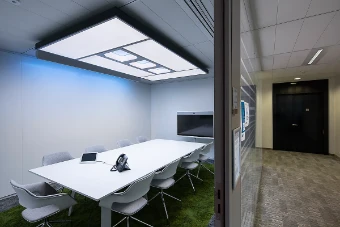

NatureConnect Het NatureConnect-systeem bootst natuurlijk daglicht na door de dagelijkse patronen van de zon te simuleren en een weergave van de hemel na te bootsen. Lichtrecepten verhogen het energieniveau en zorgen ervoor dat binnenruimtes ruimer en synchroon met de natuur aanvoelen. NatureConnect maakt van binnenruimtes productieve, ontspannende of inspirerende ruimtes.
Produktspezifikationen
Suitable for suspended mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for built-in mounting
Ja
Suitable for surface mounting
Ja
Suitable for light line configuration
Ja
Suitable for workplace according to EN 12464-1
Ja
Lamp type
LED not exchangeable
With light source
Ja
Lamp holder
Other
Housing material
Steel
Housing colour
White
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Ja
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
Open beam/diffuse
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
50000 h
Impact strength
IK02
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
10 - 35 °C
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Filament test according to IEC 60695-2-11
650 °C - 30 s
Max. system power
60 W
Colour of light
Multi-coloured
Colour temperature
2700 - 6500 K
Colour rendering index CRI
80-89
Power factor
0.92
Width
598 mm
Height/depth
140.4 mm
Length
598 mm
Built-in length
598 mm
Built-in width
598 mm
Built-in height/depth
140.4 mm
Type of wiring
Ending
Number of poles
5
Conductor cross section
0.75 mm²
Connection type
Push-in clamp
Surface protection housing
Powder coating
Nominal current
300 - 300 mA
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
70 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
42
Max. number of luminaires per miniature circuit breaker C16 (MCB)
63
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Constant light output (CLO)
Nein
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Nein
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Compatible with Casambi
Nein
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Nein
Dimmable
Ja
Luminaire efficacy
66 - 66 lm/W
Rated luminous flux according to IEC 62722-2- 1
4000 - 4000 lm
With presence detector
Nein
Containing product according to 2019/2020/EU
Ja
Total harmonic distortion (THD)
20 %
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
Max. number of luminaires per miniature circuit breaker C10 (MCB)
28
Emergency power supply system
None
Luminous flux in emergency mode
0 lm
Power consumption in emergency mode
9 W
Emergency function monitoring system
None
Connectable conductor cross section
0.75 - 0.75 mm²
Ball-proof according to DIN 18032-3
Nein
Suitable for clamp-mounting
Ja
With mounting material
Ja
With switch
Nein
