RONDO 300 - 4x 230V RA + 2x leeg -

  • 3037-8076
  • |
  • 33.73.012
0 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

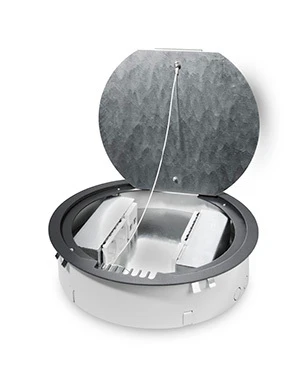

RONDO 300 - 4x 230V RA + 2x leeg - RONDO 300 - 4x 230V RA + 2x leeg - stalen deksel - grijs RAL7024
YESSS-Bestellnummer
3037-8076
Produktcode
33.73.012
EAN-Code
08719322731449
Produktgruppe
Device installation insert for subfloor installation
Marke
O.C.S. Rondo
Serie
Vloerdozen
Typ
Rondo

Produktbeschreibung

Vloerdoos OCS Rondo 300 is de grote broer van de OCS Rondo 160 en ideaal om in een later stadium aan te brengen. Ook deze vloerdoos wordt door OCS in Nederland geproduceerd.

  • Uitgevoerd met een dubbele bodem voor lasverbindingen
  • Dankzij het ronde design ideaal voor renovatieprojecten en bestaande vloeren.
  • Standaard leverbaar met 4x 230V, compleet voorbedraad geleverd, en RJ45 uitsparingen of M45 modules.
  • Deksel geschikt voor parket, tapijt of laminaat. Oplegrand in de kleur RAL7024.
  • <

Produktspezifikationen

Cover model
Round
Suitable for wet cleaning
Nein
Suitable for subfloor duct
Nein
Suitable for hollow floor
Nein
Suitable for double floor built-in
Nein
Number of device cups
6
With opening carpeting
Ja
Depth of flooring recess
5 mm
Protective frame carpeting
Nein
Min. built-in depth
76 mm
Colour
Other
RAL-number
7024
Outer diameter
323 mm
Length built-in dimension
300 mm
Width built-in dimension
300 mm
Built-in diameter
300 mm
Number of socket outlets with protective contact CEE 7/3 (type F)
4
Number of socket outlets British Standard BS 1363
0
Number of inlets
18
With cable outlet in cover
Ja
Housing material
Steel
Surface protection housing
Galvanised
Material cover
Steel
Surface protection cover
Galvanised
Surface treatment cover
Untreated
Suitable for indoor installation
Ja
Suitable for outdoor installation
Nein
Suitable for concrete installation
Ja
Suitable for floors in computer rooms
Nein
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Lockable cover
Nein
Outer length
323 mm
Outer width
323 mm
Degree of protection (IP) when in use (cable outlet open)
IP20
Degree of protection (IP) when not in use (cable outlet closed)
IP20
Number of socket outlets with protective contact CEE 7/5 (type E)
0
Number of data outlet openings
2
Height data outlet opening
45 mm
Width data outlet opening
45 mm
