Velox 2.0 Type 32 - 4x GST + 8x RJ45

  • 3016-3094
  • |
  • 33.70.004
0 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

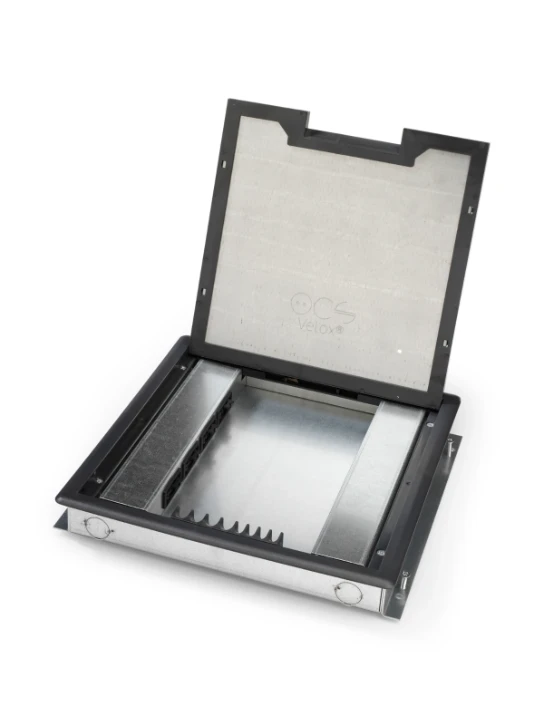

Velox 2.0 Type 32 - 4x GST + 8x RJ45 Velox 2.0 Type 32 - 4x GST + 8x RJ45 uitsp. - deksel - 4mm inleg - met
YESSS-Bestellnummer
3016-3094
Produktcode
33.70.004
EAN-Code
08719322730008
Produktgruppe
Device installation insert for subfloor installation
Marke
O.C.S. Velox®
Serie
Vloerdozen
Typ
Velox®

Produktbeschreibung

Vloerdoos OCS VELOX© is breed inzetbaar. We leveren een complete vloerdoos onder een artikelnummer. Alle OCS VELOX©
vloerdozen worden in Nederland geproduceerd. Deze uitvoering heeft de volgende eigenschappen:

  • Stevige sendzimir behuizing.

  • Produktspezifikationen

    Cover model
    Square
    Suitable for wet cleaning
    Nein
    Suitable for subfloor duct
    Nein
    Suitable for hollow floor
    Nein
    Suitable for double floor built-in
    Nein
    Number of device cups
    12
    With opening carpeting
    Ja
    Depth of flooring recess
    3 mm
    Protective frame carpeting
    Ja
    Min. built-in depth
    33.5 mm
    Colour
    Grey
    RAL-number
    7024
    Length built-in dimension
    282 mm
    Width built-in dimension
    252 mm
    Number of socket outlets with protective contact CEE 7/3 (type F)
    0
    Number of socket outlets British Standard BS 1363
    0
    Number of inlets
    16
    With cable outlet in cover
    Ja
    Housing material
    Steel
    Surface protection housing
    Galvanised
    Material cover
    Plastic
    Surface protection cover
    Untreated
    Surface treatment cover
    Untreated
    Suitable for indoor installation
    Ja
    Suitable for outdoor installation
    Nein
    Suitable for concrete installation
    Ja
    Suitable for floors in computer rooms
    Nein
    Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
    Lockable cover
    Nein
    Outer length
    252 mm
    Outer width
    252 mm
    Degree of protection (IP) when in use (cable outlet open)
    IP20
    Degree of protection (IP) when not in use (cable outlet closed)
    IP20
    Number of socket outlets with protective contact CEE 7/5 (type E)
    0
    Number of data outlet openings
    8
    Height data outlet opening
    19.6 mm
    Width data outlet opening
    15 mm
