Allgemeine Information

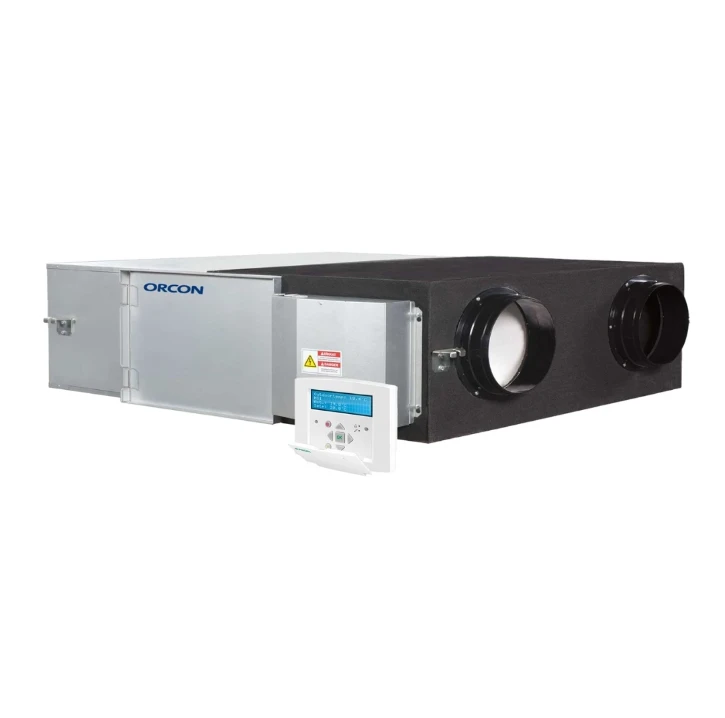

WTU-600-EC-TA met EC motoren, incl. regeling
WTU-600-EC-TA met EC motoren, incl. regeling
YESSS-Bestellnummer
3021-7732
Produktcode
15100045
EAN-Code
08718403860450
Produktgruppe
Heat recovery unit (non-residential)
Marke
Orcon
Serie
WTW Decentraal
Typ
Enthalpie wisselaar
Produktbeschreibung
WTU-600-EC-TAWTW-unit met tegenstroom warmtewisselaar, EC motoren, incl. regeling, fabricaat Orcon
Produktspezifikationen
Device emplacement
Indoor positioning
Housing material
Steel, lined
Connection voltage
1x 230 V AC
Power consumption
0.218 kW
With thermal overload protection
Ja
Electrical connection
Connection cable with plug
Suitable for electronic control
Ja
Suitable for low-current control
Ja
Suitable for transformer control
Nein
Nominal duct diameter, outdoor connection
200 mm
Connection
Flange
Thermal efficiency
82 %
With bypass
Ja
Height
355 mm
Length
1325 mm
Max. air volume at 50 Pa
700 m³/h
Max. air volume at 100 Pa
640 m³/h
Max. air volume at 150 Pa
600 m³/h
Max. air volume at 200 Pa
520 m³/h
Max. air volume at 250 Pa
440 m³/h
Max. air volume at 300 Pa
360 m³/h
Fan type
Direct
Type of motor
Electronically commutated (EC)
Heat recovery by
Counter current unit
Type of cooling coil
None
Type of heating coil
None
Change-over system
Nein
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
45 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
45 %
With condensate drain
Ja
Frost protection circuit
Nein
With constant pressure control
Nein
With constant volume flow control
Nein
With rotational speed/frequency control
Ja
Degree of protection (IP)
IP42
Width
934 mm
With roof plate
Nein
With support frame
Nein
Material heat exchanger
Aluminium
Weight
58 kg
