Allgemeine Information
WTU-250-EC-IE WTW -extra isolatie,met EC motoren, incl. regeling
WTU-250-EC-IE WTW -extra isolatie,met EC motoren, incl. regeling
YESSS-Bestellnummer
3054-9512
Produktcode
15104002
EAN-Code
08718403862812
Produktgruppe
Heat recovery unit (non-residential)
Marke
Orcon
Serie
WTW Decentraal
Typ
Geluidgedempt
Produktbeschreibung

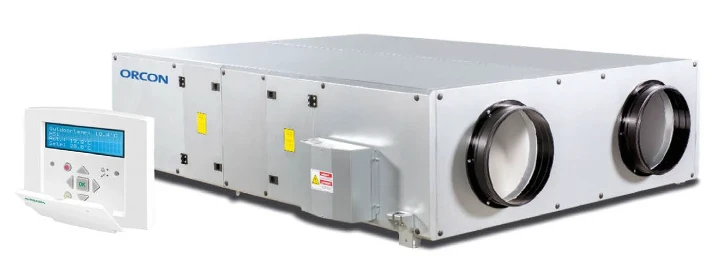

WTU-250-EC-IE WTW -extra isolatie,met EC motoren, incl. regelingWTW unit 250 m3/h, extra geisoleerd, met EC motoren, incl. regeling, fabricaat Orcon
Produktspezifikationen
Device emplacement
Indoor positioning
Housing material
Steel, lined
Connection voltage
1x 230 V AC
Power consumption
0.09 kW
With thermal overload protection
Ja
Electrical connection
Connection cable with plug
Suitable for electronic control
Ja
Suitable for low-current control
Ja
Suitable for transformer control
Nein
Nominal duct diameter, outdoor connection
160 mm
Connection
Flange
Thermal efficiency
75 %
With bypass
Ja
Height
358 mm
Length
956 mm
Max. air volume at 50 Pa
335 m³/h
Max. air volume at 100 Pa
310 m³/h
Max. air volume at 150 Pa
290 m³/h
Max. air volume at 200 Pa
265 m³/h
Max. air volume at 250 Pa
230 m³/h
Max. air volume at 300 Pa
195 m³/h
Fan type
Direct
Type of motor
Electronically commutated (EC)
Heat recovery by
Cross-counter-flow unit
Type of cooling coil
None
Type of heating coil
None
Change-over system
Nein
Supply filter according to ISO 16890-1:2016
ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016
45 %
Exhaust filter according to ISO 16890-1:2016
ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016
45 %
With condensate drain
Nein
Frost protection circuit
Nein
With constant pressure control
Nein
With constant volume flow control
Nein
With rotational speed/frequency control
Ja
Degree of protection (IP)
IP42
Width
808 mm
With roof plate
Nein
With support frame
Nein
Material heat exchanger
Other
Latent heat efficiency
37 %
Weight
63 kg
