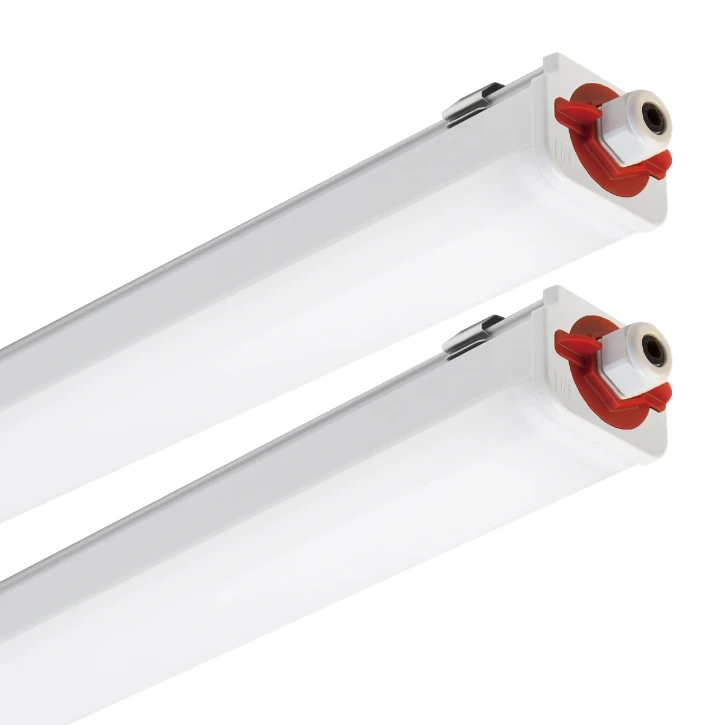

NORMA+150 CL/78 (76W) 840+NOOD-LED-Waterdichte armatuur 4000K 76W stat
NORMA+150 CL/78 (76W) 840+NOOD-LED-Waterdichte armatuur 4000K 76W stat
YESSS-Bestellnummer
3110-1236
Produktcode
3122535
EAN-Code
08018367742909
Produktgruppe
Ceiling-/wall luminaire
Marke
Performance in Lighting
Serie
NORMA+
Typ
3122535
Produktbeschreibung
Waterdichte LED armatuur bestaande uit: Behuizing van UV gestabiliseerd meegegoten polycarbonaat met dubbele afwerking; gematteerd voor het optische vak en mat voor het vak met elektrische hulpstukken. Eindkappen van technopolymeer. Pakking in slijtvast siliconen. Snelconnector voor de elektrische aansluiting met bajonet-opening, gemaakt van polycarbonaat. Scheurbestendige kabelklem M20x1.5 voor kabels Ø 10 - Ø 14 mm. Koellichaam van aluminium. Beugel voor snelle montage aan plafond van roestvrij staal. De versies CL (Continuous Line) zijn compleet met doorvoerbedrading voor montage in lijn (5x2,5mm²). De versies EM zijn compleet met noodverlichtingsunit met een autonomie van 1 uur, en kunnen zowel als algemene verlichting en als noodverlichting gebruikt worden. Er zijn versies met dimbare driver 1-10 V of DALI leverbaar.
Produktspezifikationen
Suitable for suspended mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for built-in mounting
Nein
Suitable for surface mounting
Nein
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Nein
Lamp type
LED exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Housing colour
Grey
Material cover
Plastic, opal
Type of grid
None
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Beam angle
Open beam/diffuse
Light outlet
Direct
Degree of protection (NEMA)
4
Impact strength
IK09
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
-20 - 30 °C
Suitable for emergency lighting
Ja
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Filament test according to IEC 60695-2-11
750 °C - 30 s
Suitable for lamp power
76 - 76 W
Max. system power
76 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9

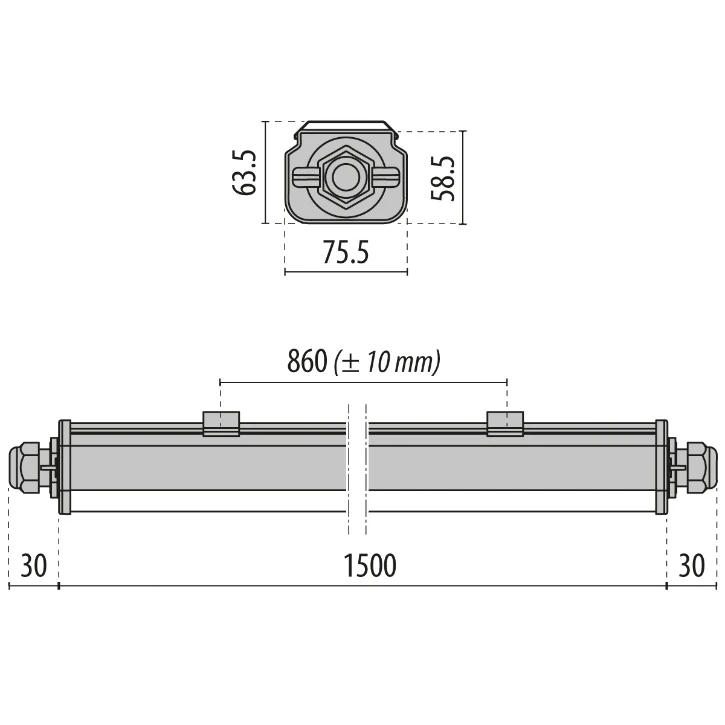

Width
76 mm
Height/depth
64 mm
Length
1560 mm
Type of wiring
Ending
Number of poles
4
Conductor cross section
0.75 mm²
Connection type
Push-in clamp
Surface protection housing
Untreated
Nominal current
300 - 300 mA
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Colour consistency (McAdam ellipse)
SDCM5
Max. number of luminaires per miniature circuit breaker B16 (MCB)
35
Max. number of luminaires per miniature circuit breaker C16 (MCB)
42
Constant light output (CLO)
Nein
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
29
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Nein
Compatible with Casambi
Nein
Dimmable
Nein
Luminaire efficacy
144.7 - 144.7 lm/W
Rated luminous flux according to IEC 62722-2- 1
10998 - 10998 lm
With presence detector
Nein
Containing product according to 2019/2020/EU
Ja
Total harmonic distortion (THD)
15 %
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP66
Max. number of luminaires per miniature circuit breaker C10 (MCB)
11
Emergency power supply system
Peripheral (individual battery)
Power consumption in emergency mode
5 W
Emergency function monitoring system
None
Connectable conductor cross section
1.5 - 1.5 mm²
Ball-proof according to DIN 18032-3
Nein
Suitable for clamp-mounting
Nein
With mounting material
Nein
With switch
Nein
