Prodisc Helios Midi, Aufbau, Ø350, max.19.5W, Ein/Aus, Weiß
- 3130-0269
- |
- 40008897
1 stück
lagernd
Sie haben noch kein Konto? Account erstellen
-
Über 6.000 Produkte auf Lager
-
Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
- Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]
Allgemeine Information
Prodisc Helios Midi, Aufbau, Ø350, max.19.5W, Ein/Aus, Weiß
Prodisc Helios Midi, Aufbau, Ø350, max.19.5W, Ein/Aus, Weiß
YESSS-Bestellnummer
3130-0269
Produktcode
40008897
EAN-Code
08721063003655
Produktgruppe
Ceiling-/wall luminaire
Marke
Prolumia
Serie
LED Prodisc Helios
Typ
40008897
Produktbeschreibung
ELEGANTE LEUCHTE MIT HALO-RÜCKENBELEUCHTUNG UND HOCHWERTIGEM MULTIFUNKTIONSDESIGNProdisc Helios kombiniert eine raffinierte Ästhetik mit professioneller Vielseitigkeit. Die elegante Halo-Rückenbeleuchtung und das Metallring-Design sorgen für ein visuelles Highlight, während das multifunktionale Design verschiedene Anforderungen erfüllt. Prodisc Helios bietet mehrere schaltbare Lichtstärken und CCT-Optionen. Zudem verfügt es über eine blendfreie Beleuchtung sowie Versionen mit Bewegungssensor und einer 3-Stunden-Selbsttest-Notbeleuchtung – ideal für Wohn- und Geschäftsumgebungen. Die Click-and-Install-Technologie vereinfacht die Montage, während mehrere Befestigungsoptionen die Flexibilität erhöhen.
Produktspezifikationen
Suitable for suspended mounting
Ja
Suitable for ceiling mounting
Ja
Suitable for built-in mounting
Nein
Suitable for surface mounting
Ja
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Ja
Lamp type
LED exchangeable
With light source
Ja
Suitable for number of light sources
1
Lamp holder
Other
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Voltage type
AC/DC
Nominal voltage
220 - 240 V
Type of control gear
Not required
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Diffuser lens/optic/panel

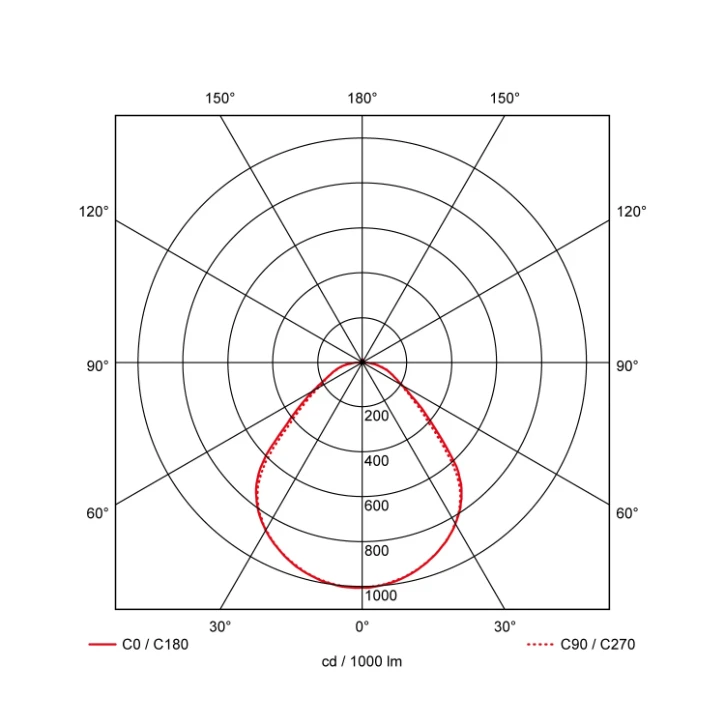

Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
228000 h
Degree of protection (NEMA)
3
Impact strength
IK08
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Ja
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
6 - 22.5 W
Max. system power
22.5 W
Colour of light
White
Colour temperature
3000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.946
Width
350 mm
Height/depth
57 mm
Length
350 mm
Outer diameter
350 mm
Type of wiring
Ending
Number of poles
4
Conductor cross section
2.5 mm²
Surface protection housing
Plastic-coated
Nominal current
100 - 340 mA
Exchangeable control gear
Ja
Dimming DALI-2
Nein
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
95.64 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
94.88 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
89.08 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
4.36 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
5.12 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
10.92 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
49
Max. number of luminaires per miniature circuit breaker C16 (MCB)
98
Flickering value Pst LM
0.89
Stroboscope effect value SVM
0.1
Constant light output (CLO)
Nein
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
16
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Ja
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Compatible with Casambi
Nein
Dimmable
Nein
Luminaire efficacy
106 - 130 lm/W
Rated luminous flux according to IEC 62722-2- 1
700 - 2300 lm
With presence detector
Nein
Containing product according to 2019/2020/EU
Ja
Total harmonic distortion (THD)
0.171 %
Degree of protection (IP), rear side
IP40
Degree of protection (IP), front side
IP40
Max. number of luminaires per miniature circuit breaker C10 (MCB)
62
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1 - 2.5 mm²
Ball-proof according to DIN 18032-3
Nein
Suitable for clamp-mounting
Nein
With mounting material
Ja
With switch
Nein
