Allgemeine Information

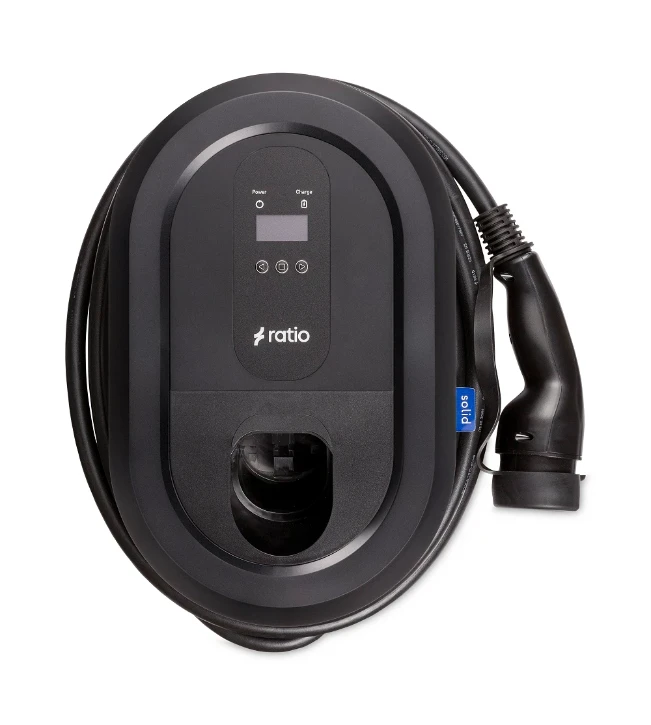

Laadpaal Ratio Solid 11-22 kW 5m
Laadpaal Ratio Solid 11-22 kW 5m
YESSS-Bestellnummer
3092-3945
Produktcode
38811
EAN-Code
08720629963327
Produktgruppe
Charging device for electric vehicles
Marke
RATIO ELECTRIC
Serie
Solid
Typ
38811
Produktbeschreibung
Plug & Charge lader met Load Balancing en PV laden
Produktspezifikationen
Installation side connection model
3-phase
Number of charging units
1
Max. power per charging point
22 kW
Nominal connection power
22 kW
Width
250 mm
Height
400 mm
Depth
105 mm
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
1
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
0
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of CEE socket outlets (IEC 60309)
0
Number of household socket outlets
0
With house connection box
Nein
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
0
With miniature circuit breaker (MCB)
Nein
With energy meter
Ja
Housing material
Plastic
Degree of protection (IP)
IP54
Impact strength
IK08
Length of charging cable
5 m
With display
Ja
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Input voltage
380 - 400 V
Charging cable permanently lockable at charging device
Nein
DC residual current detection
Ja
Contactor welding detection
Nein
Network-enabled as a master
Ja
Network-enabled as an extender
Nein
Networkable via LAN
Nein
Networkable via Wi-Fi
Nein
Mobile communication standard 5G
Nein
With key switch
Nein
With built-in RFID card reader
Nein
NFC (Near Field Communication)
Nein
Static load management integrated
Ja
Suitable for dynamic load management
Nein
Plug and charge (ISO 15118)
Nein
Operation and configuration by app
Nein
Export of charging logs
Nein
Connectable conductor cross section
6 - 6 mm²
Backend included
Nein
With MID compliant energy meter
Nein
Calibration law compliant
Nein
