Allgemeine Information

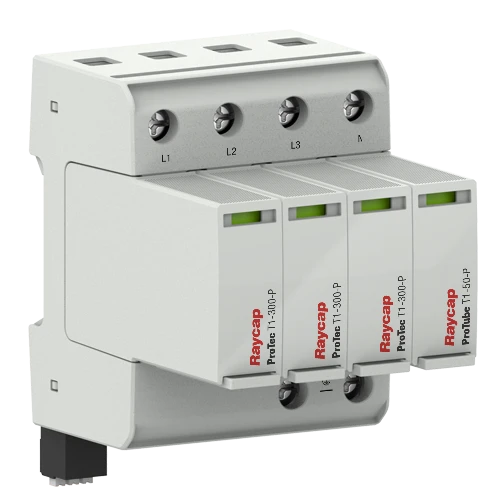

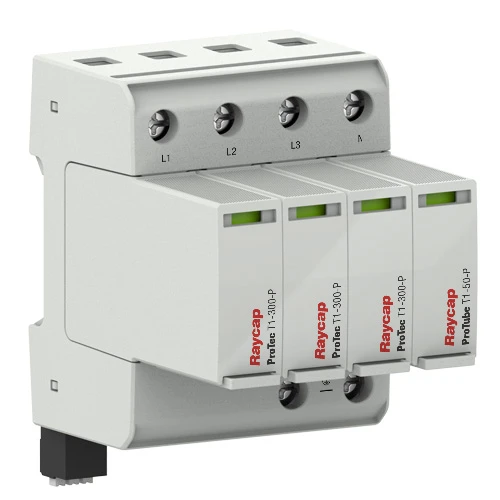

Overspanningsbeveiliging Type 1+2 TT, TN-S
Overspanningsbeveiliging Type 1+2 TT, TN-S
YESSS-Bestellnummer
3054-9340
Produktcode
RA-59.0060
EAN-Code
03838757057384
Produktgruppe
Combined arrester for power supply systems
Marke
Raycap
Serie
ProTec T1
Typ
Protec T1-300-3+1-R
Produktbeschreibung
Raycap is een internationale fabrikant van elektronische componenten voor overspanningsbeveiliging, connectiviteit en monitoring. Het bedrijf ontwikkelt overspanning-oplossingen voor kritieke applicaties waarbij de beschikbaarheid van installaties en persoonlijke veiligheid topprioriteiten zijn.
Produktspezifikationen
System configuration DC
Nein
System configuration IT
Nein
System configuration TN
Ja
System configuration TN-C
Nein
System configuration TN-C-S
Nein
System configuration TN-S
Ja
System configuration TT
Ja
System configuration other
Nein
Number of poles
4
Lightning impulse current (10/350 µs)
50 kA
Max. continuous voltage AC
300 V
Max. continuous voltage DC
0 V
Nominal voltage AC
240 V
Nominal voltage DC
0 V
Max. PV-voltage
0 V
Voltage protection level
0 kV
Voltage protection level L-N
1.5 kV
Voltage protection level L-PE
0 kV
Voltage protection level N-PE
1.5 kV
Voltage protection level (DC+ - DC-)
0 kV
Voltage protection level (DC+/DC- - PE)
0 kV
Follow current extinguishing capability
100 kA
Specific energy (W/R)
625 kJ/Ohm
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
Mounting method
DIN rail (top hat rail) 35 mm

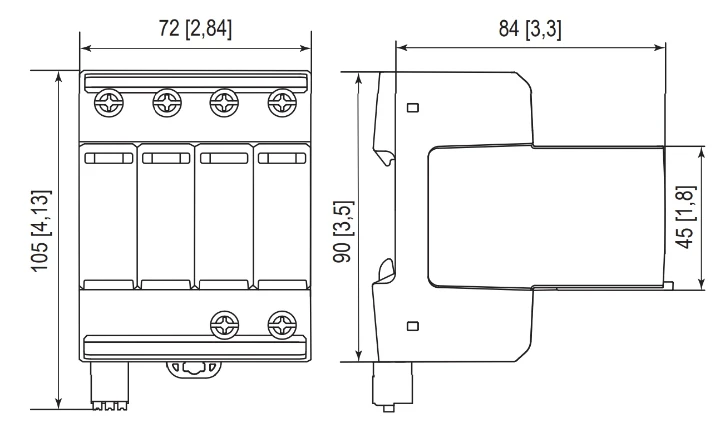

Construction size
4 modular spacing
Remote signalling
Ja
Signalling at the device
Optical
Test class
Type 1 + 2
Integrated backup fuse
Nein
Energy-coordinated protection effect with regard to the terminal equipment
Ja
Degree of protection (IP)
IP20
Max. overcurrent protection device, parallel connection (fuse)
250 A
Max. overcurrent protection device, series connection (fuse)
250 A
Voltage switching spark gap technology
Nein
Overcurrent protected voltage tapping
Nein
