Allgemeine Information

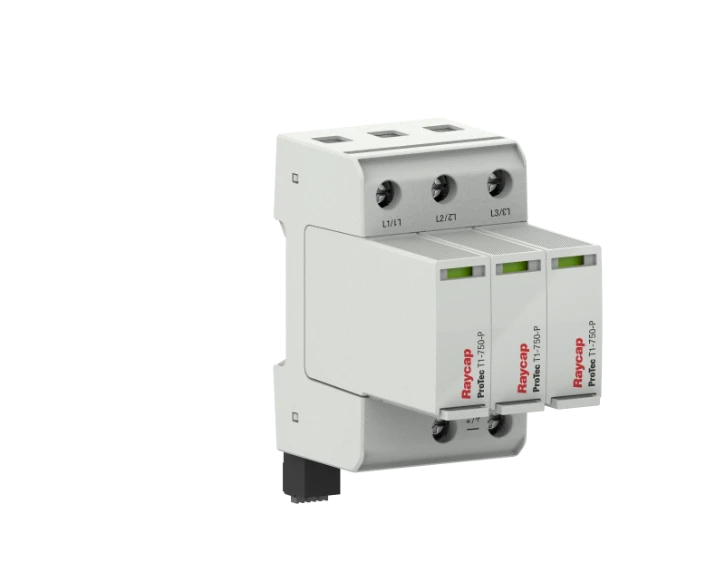

Overspanningsbeveiliging Type 1+2 TN-C
Overspanningsbeveiliging Type 1+2 TN-C
YESSS-Bestellnummer
3109-0876
Produktcode
RA-59.0038
EAN-Code
03838757057162
Produktgruppe
Combined arrester for power supply systems
Marke
Raycap
Serie
Protec T1
Typ
Protec T1-750-3+0-R
Produktbeschreibung
Raycap is een internationale fabrikant van elektronische componenten voor overspanningsbeveiliging, connectiviteit en monitoring. Het bedrijf ontwikkelt overspanning-oplossingen voor kritieke applicaties waarbij de beschikbaarheid van installaties en persoonlijke veiligheid topprioriteiten zijn.
Produktspezifikationen
System configuration DC
Nein
System configuration IT
Nein
System configuration TN
Ja
System configuration TN-C
Ja
System configuration TN-C-S
Nein
System configuration TN-S
Nein
System configuration TT
Nein
System configuration other
Nein
Number of poles
3
Lightning impulse current (10/350 µs)
37.5 kA
Max. continuous voltage AC
750 V
Max. continuous voltage DC
0 V
Nominal voltage AC
600 V
Nominal voltage DC
0 V
Max. PV-voltage
0 V
Voltage protection level
3.2 kV
Voltage protection level L-N
6.4 kV
Voltage protection level L-PE
3.2 kV
Voltage protection level N-PE
3.2 kV
Voltage protection level (DC+ - DC-)
0 kV
Voltage protection level (DC+/DC- - PE)
0 kV
Follow current extinguishing capability
100 kA
Specific energy (W/R)
6.25 kJ/Ohm
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Remote signalling
Ja
Signalling at the device
Optical
Test class
Type 1 + 2
Integrated backup fuse
Nein
Energy-coordinated protection effect with regard to the terminal equipment
Ja
Degree of protection (IP)
IP20
Max. overcurrent protection device, parallel connection (fuse)
250 A
Max. overcurrent protection device, series connection (fuse)
250 A
Voltage switching spark gap technology
Nein
Overcurrent protected voltage tapping
Nein
