ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K

  • 2244-4210
  • |
  • RAM40406060-01
3 stück lagernd
Zum Bestellen anmelden
Sie haben noch kein Konto? Account erstellen
  • Products Über 6.000 Produkte auf Lager
  • Bestellen Sie vor 17:00 Uhr und erhalten Sie Ihre Bestellung am nächsten Werktag!
  • Benötigen Sie Hilfe? Rufen Sie 0800 - 5011 an oder kontaktieren Sie uns per E-Mail unter [email protected]

Allgemeine Information

ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K
YESSS-Bestellnummer
2244-4210
Produktcode
RAM40406060-01
EAN-Code
05391370051835
Produktgruppe
Ceiling-/wall luminaire
Marke
Robus
Serie
LED Panels
Typ
Atmos

Produktbeschreibung

* The diversity of installations suitable for these high quality LED light panels is almost limitless * They look great with their clean and stylish lines and are exceptionally efficient, making enormous savings in electricity costs * This great quality, high specification range of panels delivers excellent performance and will provide payback return on investment in very short time periods * They replace traditional T8 and T5 lay-in modular’s to provide energy efficient, but perhaps more importantly, low maintenance solutions where constant replacement of fluorescent tubes and cleaning of the fitting can be avoided * They will help enable the building to achieve a low carbon footprint and comply with current and foreseeable Building Regulation efficacy requirements * Note: all the versions are equipped with TP(a) rated diffuser, except RAM40403012-01 which is TP(b) rated

Produktspezifikationen

Suitable for suspended mounting
Ja
Lamp type
LED not exchangeable
With light source
Ja
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Ja
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Nein
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Beam angle
> 80° - Extreme wide beam
Rated lifetime L70/B50 at 25 °C
50000 h
Impact strength
IK06
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
With movement sensor
Nein
With light sensor
Nein
Max. system power
38.3 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.97
Width
595 mm
Height/depth
10 mm
Length
595 mm
Nominal current
170 - 170 mA
Unified Glare Ratio (UGR)
21.2
Colour of light adjustable
No
Operation by Bluetooth
Nein

Empfohlene produkte

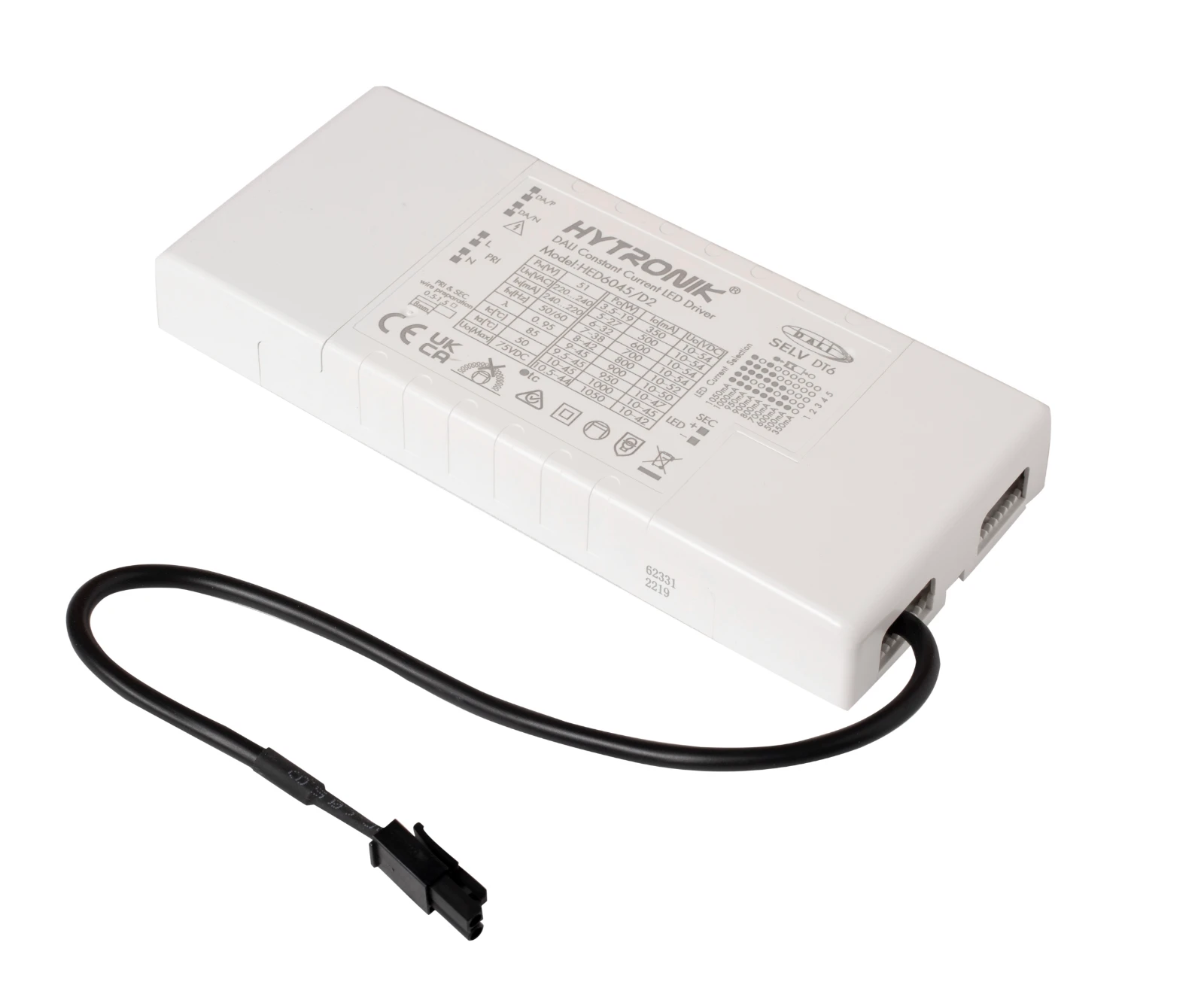

LED driver Robus Lighting Controls

DALI 2, 1-10V, Switch Dim, 45W LED Current Selectable Driver w/ 30cm C

€ 82,68 /

€ 103,35 UVP

0 | 3093-1619

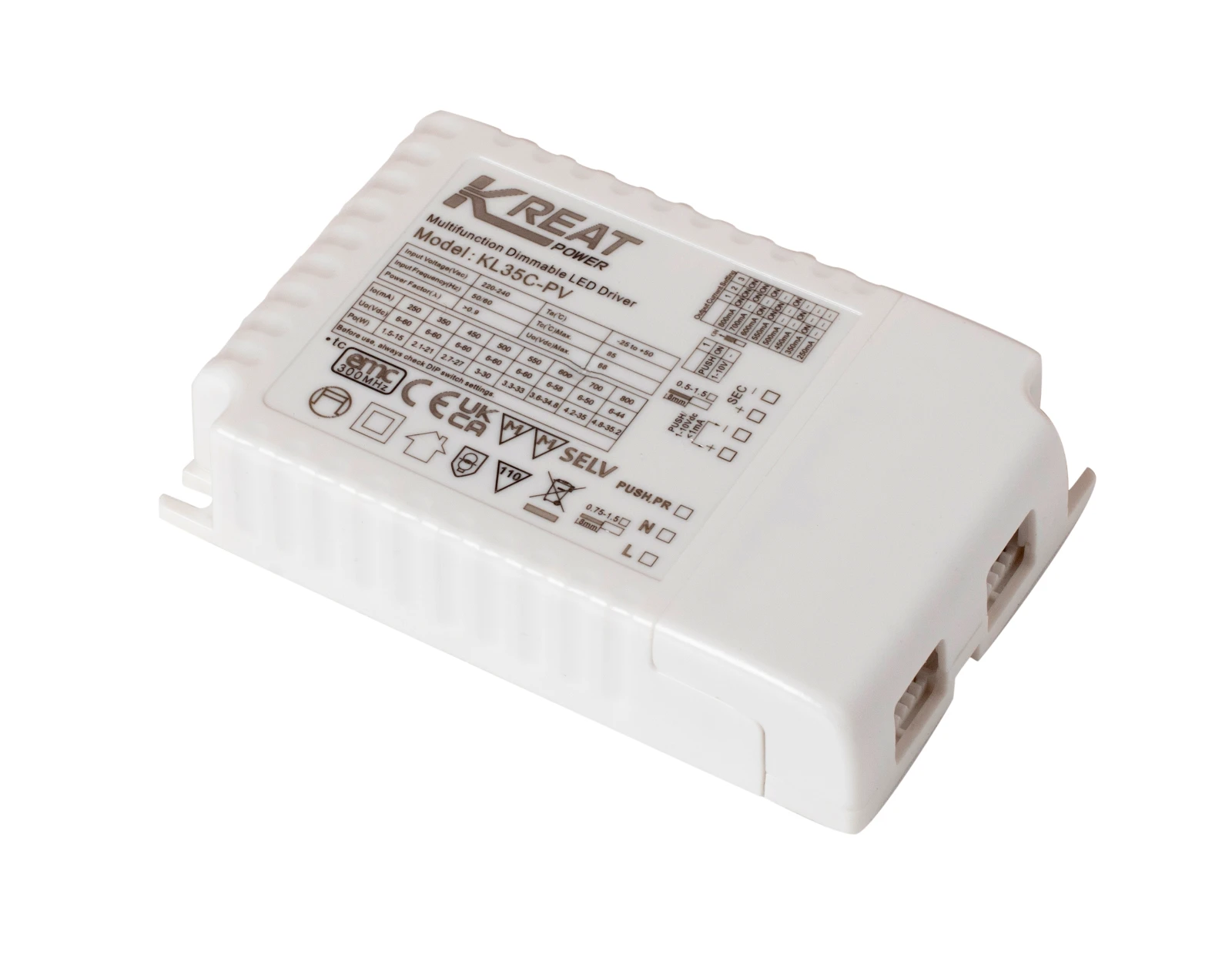

LED driver Robus LED Panels

35W 1-10V Dim And Push Dim Driver 250-800mA

€ 58,30 /

€ 72,88 UVP

0 | 3106-8911

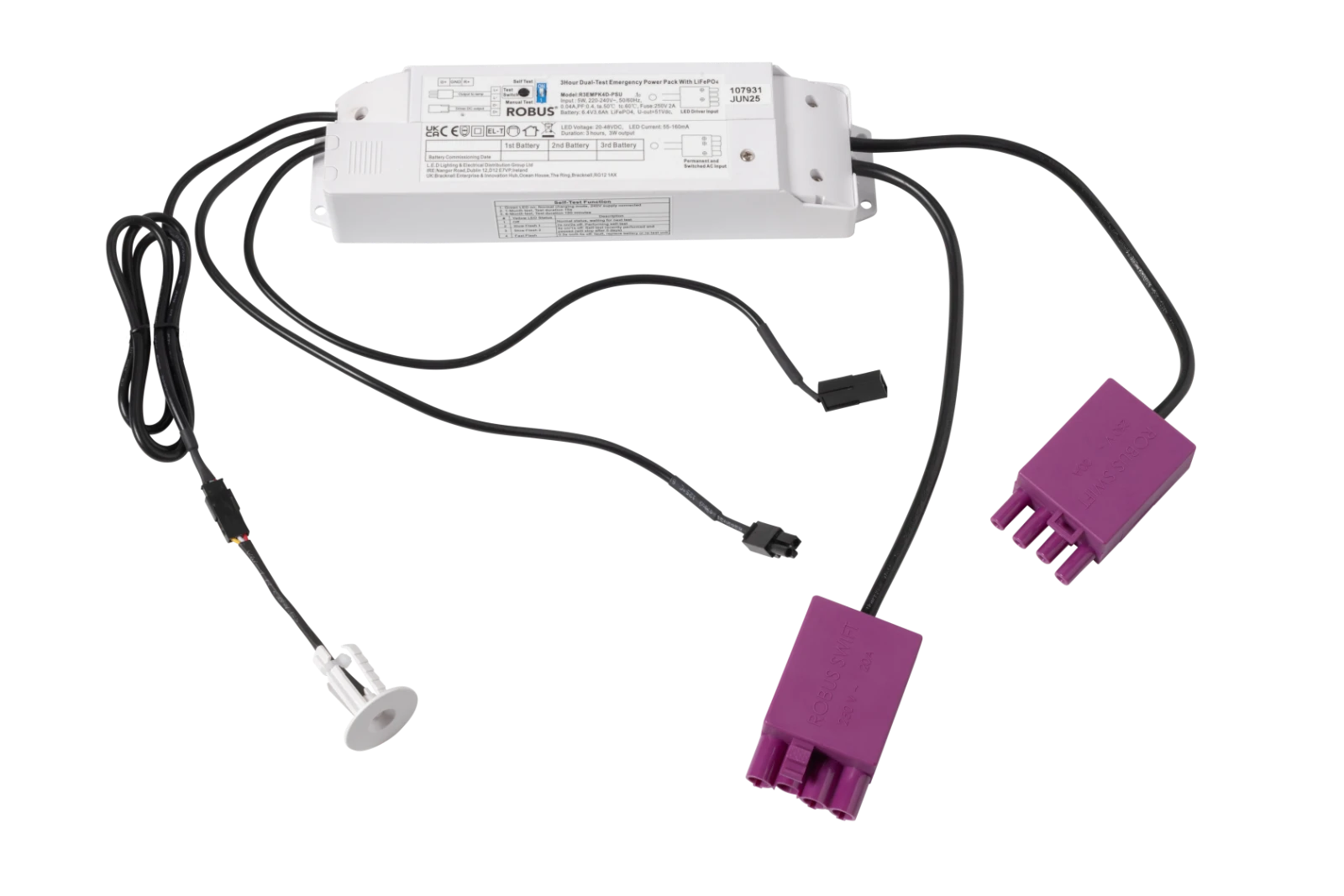

Emergency unit for luminaire Robus LED Panels
