Allgemeine Information

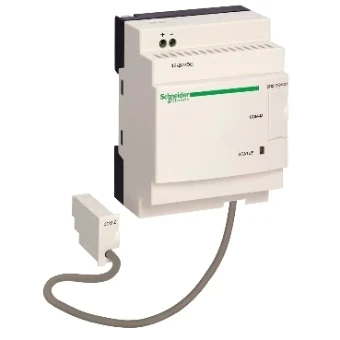

Zelio Logic - Modem communicatie interface voor smart relais -
Zelio Logic - Modem communicatie interface voor smart relais - Flash g
YESSS-Bestellnummer
0066-2473
Produktcode
SR2COM01
EAN-Code
03389110550207
Produktgruppe
Logic module
Marke
Schneider Electric
Serie
Zelio Logic SR2/SR3
Typ
Logische module
Produktbeschreibung
Deze SR2-communicatie-interface heeft een spoelbesturingsspanning van 12 V-24 V DC. Het kan programma overbrengen, alarm verzenden naar e-mail en alarm verzenden/instructie ontvangen. Het controleert of verwijdert controle van machine of installatie die zonder personeel werken. De communicatie interface staat berichten, telefoonnummers, en het roepen toe. Het heeft een flexibel ontwerp voor ruimtebesparing met intrekbare montagebeugel, veer voor clip-on.
Produktspezifikationen
Supply voltage DC
12 - 24 V
Voltage type (supply voltage)
DC
Switching current
0.03 A
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
0
Number of digital outputs
0
With relay output
Nein
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces wireless
0
Number of HW-interfaces other
0
With optical interface
Nein
Supporting protocol for TCP/IP
Nein
Supporting protocol for PROFIBUS
Nein
Supporting protocol for CAN
Nein
Supporting protocol for INTERBUS
Nein
Supporting protocol for ASI
Nein
Supporting protocol for KNX
Nein
Supporting protocol for Modbus
Nein
Supporting protocol for Data-Highway
Nein
Supporting protocol for DeviceNet
Nein
Supporting protocol for SUCONET
Nein
Supporting protocol for LON
Nein
Supporting protocol for PROFINET IO
Nein
Supporting protocol for PROFINET CBA
Nein
Supporting protocol for SERCOS
Nein
Supporting protocol for Foundation Fieldbus
Nein
Supporting protocol for EtherNet/IP
Nein
Supporting protocol for AS-Interface Safety at Work
Nein
Supporting protocol for DeviceNet Safety
Nein
Supporting protocol for INTERBUS-Safety
Nein
Supporting protocol for PROFIsafe
Nein
Supporting protocol for SafetyBUS p
Nein
Supporting protocol for other bus systems
Nein
Radio standard Bluetooth
Nein
Radio standard WLAN 802.11
Nein
Mobile communication standard GPRS
Nein
Mobile communication standard 2G (GSM)
Nein
Mobile communication standard 3G (UMTS)
Nein
IO link master
Nein
Redundancy
Nein
With display
Nein
Degree of protection (IP)
IP20
Basic device
Ja
Expandable
Nein
Expansion device
Ja
With time switch clock
Nein
Suitable for rail mounting
Ja
Wall mounting/direct mounting
Nein
Front built-in possible
Ja
Rack-assembly possible
Nein
Suitable for safety functions
Nein
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
Nein
Appendant operation agent (Ex ib)
Nein
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
35 mm
Height
90 mm
Depth
57 mm
Power consumption
1.1 W
Supporting protocol for EtherCAT
Nein
Certified for UL hazardous location class I
Nein
Certified for UL hazardous location class II
Nein
Certified for UL hazardous location class III
Nein
Certified for UL hazardous location division 1
Nein
Certified for UL hazardous location division 2
Nein
Certified for UL hazardous location group A (acetylene)
Nein
Certified for UL hazardous location group B (hydrogen)
Nein
Certified for UL hazardous location group C (ethylene)
Nein
Certified for UL hazardous location group D (propane)
Nein
Certified for UL hazardous location group E (metal dusts)
Nein
Certified for UL hazardous location group F (carbonaceous dusts)
Nein
Certified for UL hazardous location group G (non-conductive dusts)
Nein
