Allgemeine Information
Artes Mini Zwart 380lm 2700K Ra>80 Fase afsnijding
Artes Mini Zwart 380lm 2700K Ra>80 Fase afsnijding
YESSS-Bestellnummer
3128-7872
Produktcode
641746
EAN-Code
07021986417463
Produktgruppe
Ceiling-/wall luminaire
Marke
SG
Serie
Artes Mini
Typ
Artes Mini Zwart 380lm 2700K Ra>80
Produktbeschreibung

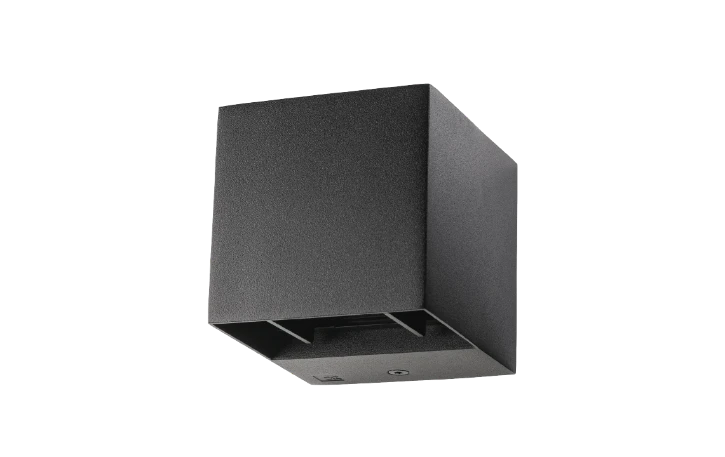

Artes Mini is een kleinere versie in de populaire Artes-familie. Een mooi en decoratief armatuur voor wandmontage buiten of binnen. Gemaakt van gegoten aluminium met poedercoating. Artes Mini biedt aanpasbare verlichtingshoeken, zodat je zelf kunt bepalen waar het licht schijnt. Je kunt zelfs het licht naar boven of beneden uitschakelen als dat nodig is. De dimfunctie (fase-afsnijdend dimmen) zorgt voor een perfecte sfeerregeling. Artes Mini is ontworpen voor eenvoudige installatie en heeft twee ingangen voor zichtbare kabels of verborgen bedrading, waardoor hij kan worden aangepast aan je opstelling.
Produktspezifikationen
Suitable for suspended mounting
Nein
Suitable for ceiling mounting
Nein
Suitable for built-in mounting
Nein
Suitable for surface mounting
Ja
Suitable for light line configuration
Nein
Suitable for workplace according to EN 12464-1
Nein
Lamp type
LED not exchangeable
With light source
Ja
Lamp holder
Other
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, transparent
Type of grid
White
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Not required
With control gear
Nein
Dimming 0-10 V
Nein
Dimming 1-10 V
Nein
Dimming DALI
Nein
Dimming DMX
Nein
Dimming DSI
Nein
Dimming potentiometer (integrated)
Nein
Dimming manufacturer's proprietary system
Nein
Dimming mains voltage modulation
Nein
Dimming phase cut-off (trailing edge)
Ja
Dimming phase cut-on (leading edge)
Nein
Dimming programmable
Nein
Dimming RF
Nein
Dimming Touch and Dim
Nein
Dimming Zigbee
Nein
Dimming with push-button
Nein
Light distributor
Other
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
7 h
Degree of protection (NEMA)
Other
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Nein
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Suitable for emergency lighting
Nein
With movement sensor
Nein
With light sensor
Nein
Covering of the luminaire with thermally insulating material possible
Nein
With air slots
Nein
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
8 - 8 W
Max. system power
8 W
Colour of light
White
Colour temperature
2700 - 2700 K
Colour rendering index CRI
80-89
Width
100 mm
Height/depth
86 mm
Length
86 mm
Outer diameter
0 mm
Built-in length
0 mm
Built-in width
0 mm
Built-in height/depth
0 mm
Built-in diameter
0 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Conductor cross section
1 mm²
Connection type
Push-in clamp
Surface protection housing
Other
Exchangeable control gear
Nein
Dimming DALI-2
Nein
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16 (MCB)
150
Max. number of luminaires per miniature circuit breaker C16 (MCB)
150
Flickering value Pst LM
0.06
Stroboscope effect value SVM
0.3
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
Nein
Compatible with Apple HomeKit
Nein
Compatible with Google Assistant
Nein
Compatible with Amazon Alexa
Nein
IFTTT support available
Nein
Suitable for wall mounting
Ja
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Compatible with Casambi
Nein
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Nein
Luminaire efficacy
48 - 48 lm/W
Rated luminous flux according to IEC 62722-2- 1
380 - 380 lm
With presence detector
Nein
Degree of protection (IP), rear side
IP44
Degree of protection (IP), front side
IP44
Max. number of luminaires per miniature circuit breaker C10 (MCB)
90
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for clamp-mounting
Nein
With mounting material
Ja
With switch
Nein
